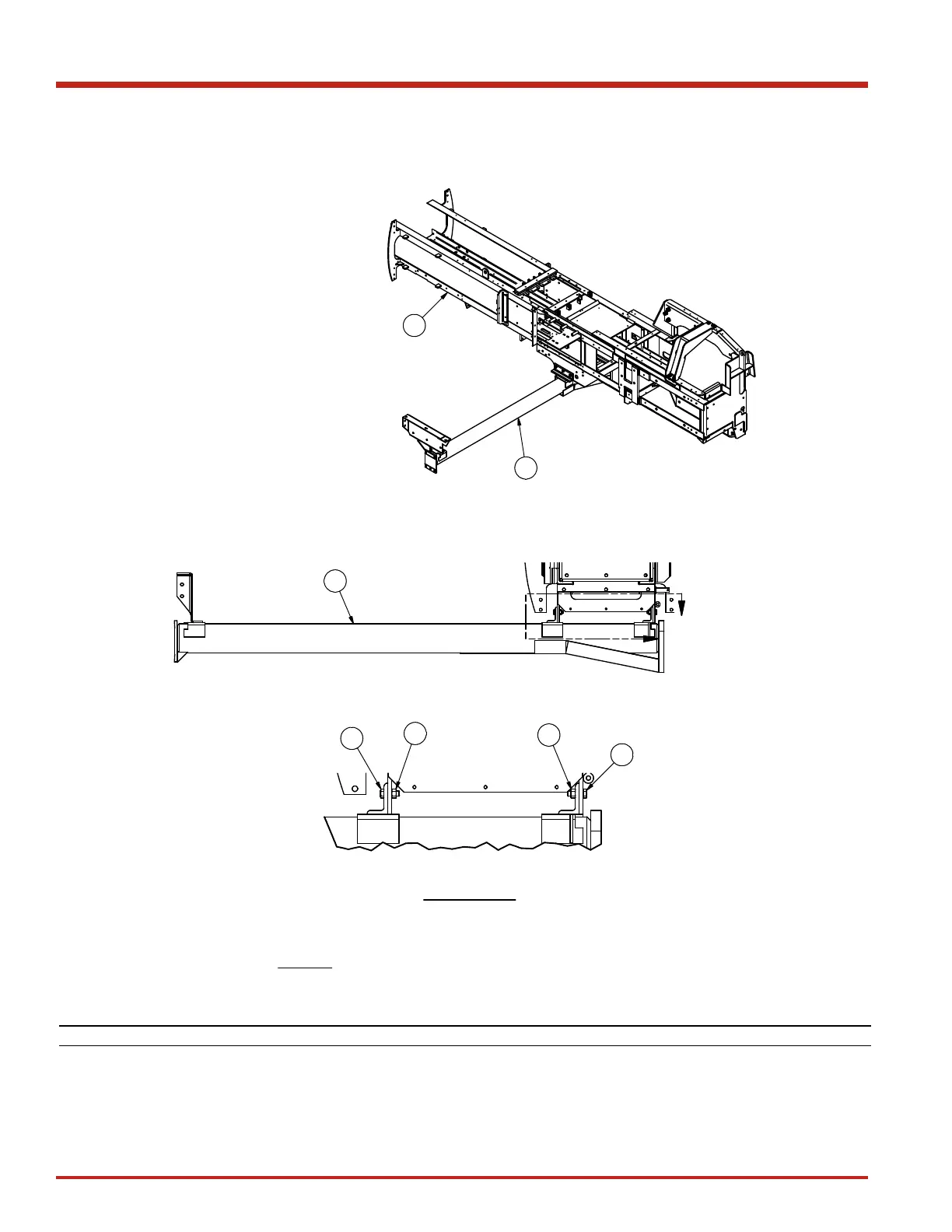

Frame & Axle, 14x21”; Gearbox Baler
Item Part No. Qty Description Item Part No. Qty Description
909328 Frame & Axle Assembly
1 908289 1 . Frame, 14x21”; 3 Tie, Gearbox Baler
2 AXL0030902 1 . Axle
3 200454W 6 . Capscrew
4 221711W 6 . Nut
Rev -
DETAIL A
2
2
3
4
4
3
3X
3X
3X
3X
NOTES:
1. VIEWS ARE OF 16" 3-TIE BULLGEAR FRAME.
A
1
Frame & Axle, 14 X 21”
Page 1 of 1
88
89-096 Rev: 11-2016
