Plunger Assy, Kittted for 14”x22”
Page 2 of 4
Item Part No. Qty Description Item Part No. Qty Description
906225 Plunger Assy, Kitted for 14”x22”
1 906228 1 . Plunger
2 F000008056 1 . Pad, Adjusting, Right
3 F000008057 2 . Pad, Adjusting, Center
4 SHM0034535 A/R . Shim, Knife, Plunger (Not Shown)
5 SHM0034534 A/R . Shim, Knife, Plunger (Not Shown)
6 903882 1 . Mount, LH Btm Roller & Slide
7 905084 1 . Mounting Rail, Hard Slide, Top LH
8 F000001537 4 . Plunger Hard Slide
9 PIN0007831 4 . Pin, Roll
10 LOK0005857 1 . Plate, Lock
11 F000000986 2 . Rear Wiper
12 F000000774 2 . Front Wiper
13 F000000775 4 . Bearing, Roller
14 F000007735 6 . Grommet, Rubber
15 PLG0007840 1 . Roller Mount, RH Front
16 KNF0021901 1 . Plunger Knife
17 F000000227 3 . Plunger Knife Bolt-Flat Hd Soc
18 F000000073 2 . Square Head Set Screw
19 F008058-14 1 . Pad, Adjusting, Left
20 R13811046 6 . Capscrew
21 Y17C-0616 8 . Capscrew
22 234135 21 . Lockwasher
23 R13802623 21 . Flat Washer
24 221707W 12 . Hex Nut
26 SQS5002500 2 . Set Screw
27 234218 4 . Jam Nut
28 00113991 8 . Machine Screw
29 00191758 4 . Fitting, Lube
30 STS3125313 4 . Socket Set Screw
31 247008 2 . Jam Nut
32 R13811457 1 . Flat Washer
33 4196303 8 . Locknut
35 SQS7502250 2 . Set Screw
36 BRG0001636 1 . Top Roller Bearing
37 ZZ00000203 A/R . Mach Bushing
38 WES0007500 1 . Ext. Star Washer
39 PLG0007839 1 . Mounting Weldment, RH Rear
40 * 906301 1 . Connecting Rod Assy, Gearbox
41 F000007914 1 . Pin
42 R13807736 6 . Capscrew
43 F000001441 8 . Fitting
44 ZZ00000200 A/R . Mach Bushing
45 221717W 1 . Hex Nut
50 R13811047 5 . Capscrew
51 Y09G-0510 6 . Capscrew
52 904564 1 . Tube
53 904565 1 . Tube
54
904566 1 . Tube
55 904567 1 . Tube
56 905095 1 . Angle, Mounting
57 NCJ0000313 1 . Hex Jam Nut
58 231661 1 . Capscrew
59 ZZ00000202 A/R . Bushing
* See Separate Coverage
Rev -D

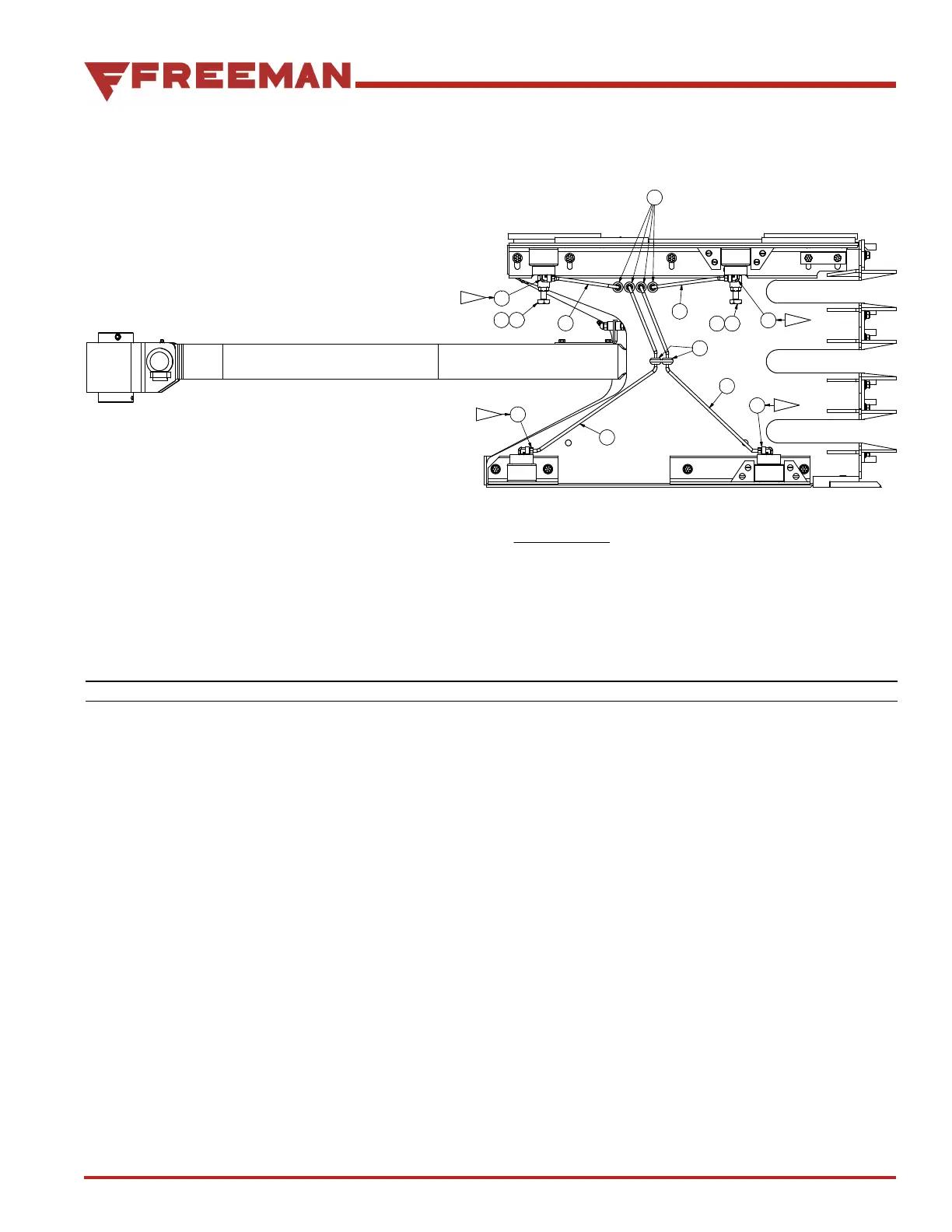

BOTTOM VIEW
43
14
43
43
14
52
53
54
26
27
43
26
27
55
3-5
3-5
3-5
3-5
Plunger Assy, Kitted for 14”x22”
Gearbox Baler
Page 2 of 4
61
89-096Rev: 11-2016
