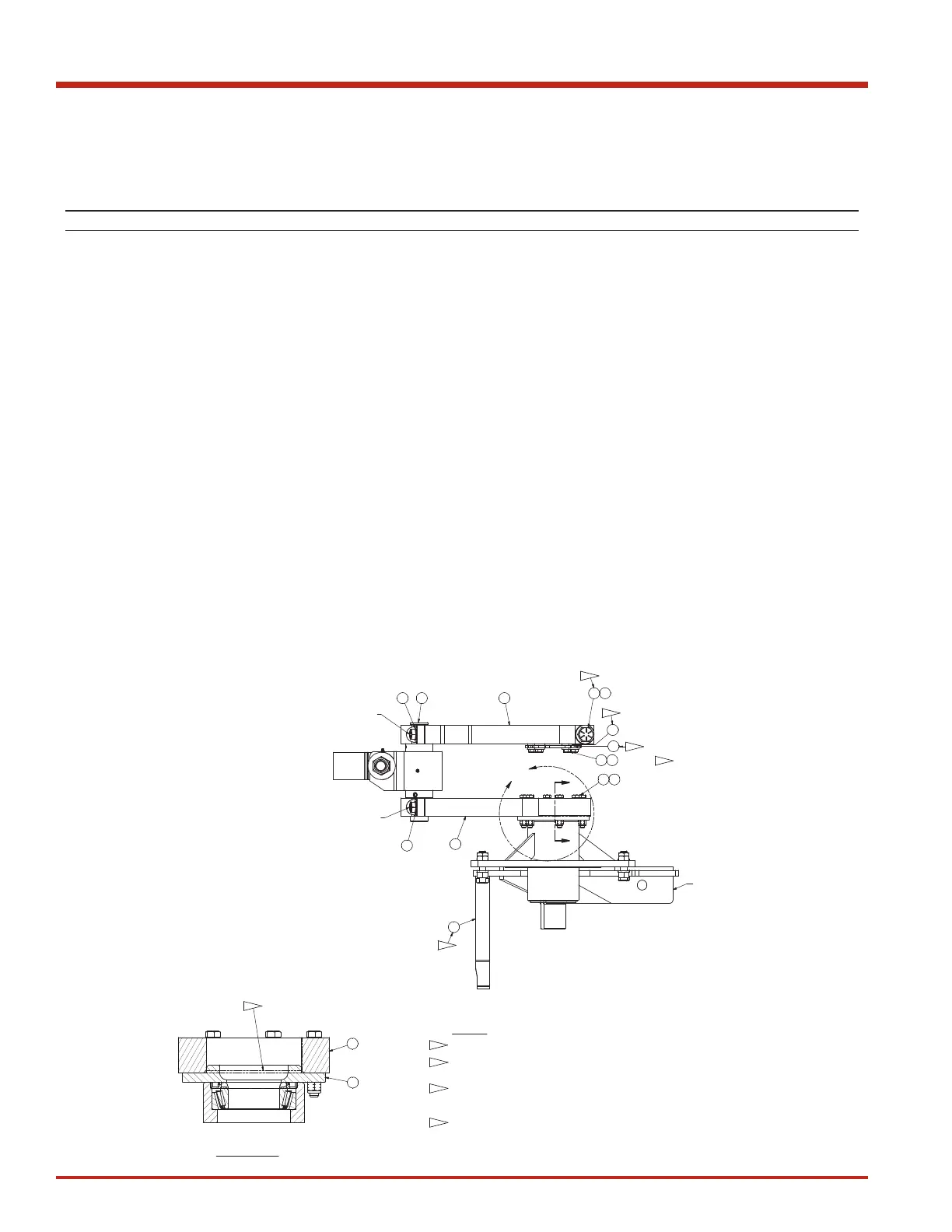

Gearbox Installation 14”X21”KTD (16” Frame)
Page 2 of 5
Item Part No. Qty Description Item Part No. Qty Description
909236 Gearbox Installation 14”X21”KTD (16” Frame)
1 * 906765 1 . Gearbox Assembly
2 * 908708 1 . Plunger Assembly
3 904466 1 . Drive Arm Assembly
3.1 904479 1 . . Drive Arm
3.2 177192W 2 . . Capscrew
4 906841 1 . Crank Arm Assembly
4.1 906840 1 . . Crank Arm
4.2 177192W 2 . . Capscrew
5 904409 1 . Plate,Keeper
6 906842 1 . Pin, Crank,
7 903503 1 . Bracket Weldment, Drawbar
8 * PLT0163070 1 . Side Plate W/Brgs RH
9 909423 1 . Stop Dog
10 PIN0035710 1 . Pin Assembly
11 ZZ00000209 1 . Mach Bushing
12 027-0933 1 . Set Screw
13 221777W 10 . Hard Washer
14 221716W 5 . Hex Nut
15 200608 9 . Lockwasher
16 221666W 5 . Capscrew
17 R13801901 1 . Capscrew
18 221780W 1 . Hard Washer
19 221576W 2 . Capscrew
20 R13811082 6 . Capscrew
21 221771W 10 . Hard Washer
22 223587 8 . Nut, Esna
23 221560W 4 . Capscrew
24 221656W 1 . Capscrew
25 R13806363 1 . Capscrew
26 221660W 2 . Capscrew
27 SHM0163090 7 . Shim
28 SHM0163091 7 . Shim
29 SHM0163092 7 . Shim
30 SHM0163093 7 . Shim
31 232854 1 . Capscrew
32 235720 2GL . Lubricant, Gear
33 904814 0 . Plate, Brace
34 221717W 4 . Hex Nut
35 F000007239 2 . Pin, Roll
36 907012 4 . Washer, Wedge Lock
37 908678 2 . Shim
38 908673 2 . Shim
39 2302030W 2 . Shim
40 2520704 2 . Shim
41 908674 2 . Shim
42 2508285 2 . Washer, Thrust
43 221662W 3 . Capscrew
* See Separate Coverage
Rev BA
CRANK ARM & DRIVE ARM
SECTION D-D
17
18
23
21
20
22
4 PLACES
6 PLACES
2-1
REF:
DRAWBAR MOUNT
(RIGHT HAND)
NOTES:
TORQUE BOLT TO 750-755 FT LBS.
INSTALL ITEM 33 AT THIS LEVEL, IT IS CALLED OUT
IN THE SHIELD GROUP.
DRIVE ARM IS TO BE ASSEMBLED TO THE RIGHT-HAND SIDE
PLATE WITH THE CHAMFER ON THE DRIVE ARM FACING THE
SIDE PLATE.
ADD 221771W FLAT WASHERS AS NEEDED BETWEEN KEEPER
PLATE AND CRANK ARM SO THAT KEEPER PLATE IS BOLTED
FLAT TO CRANK ARM AND NOT PUSHING ON END OF
GEARBOX OUTPUT SHAFT.
2-1
2-2
2-3
2-3
33
REF
FASTENER COME WITH ITEM 3
P/N:221659W
2 PLACES
3
6
FASTENER COME WITH ITEM 4
P/N:221659W
2 PLACES
4
2-3
5
21
2-4
2-4
2-4
2-4
8
3
36
36
C
D
D
42
89-096 Rev: 11-2016
