Allied Systems Freeman 370 User Manual

Plunger Assy, Kittted for 14”x22”
Page 4 of 4

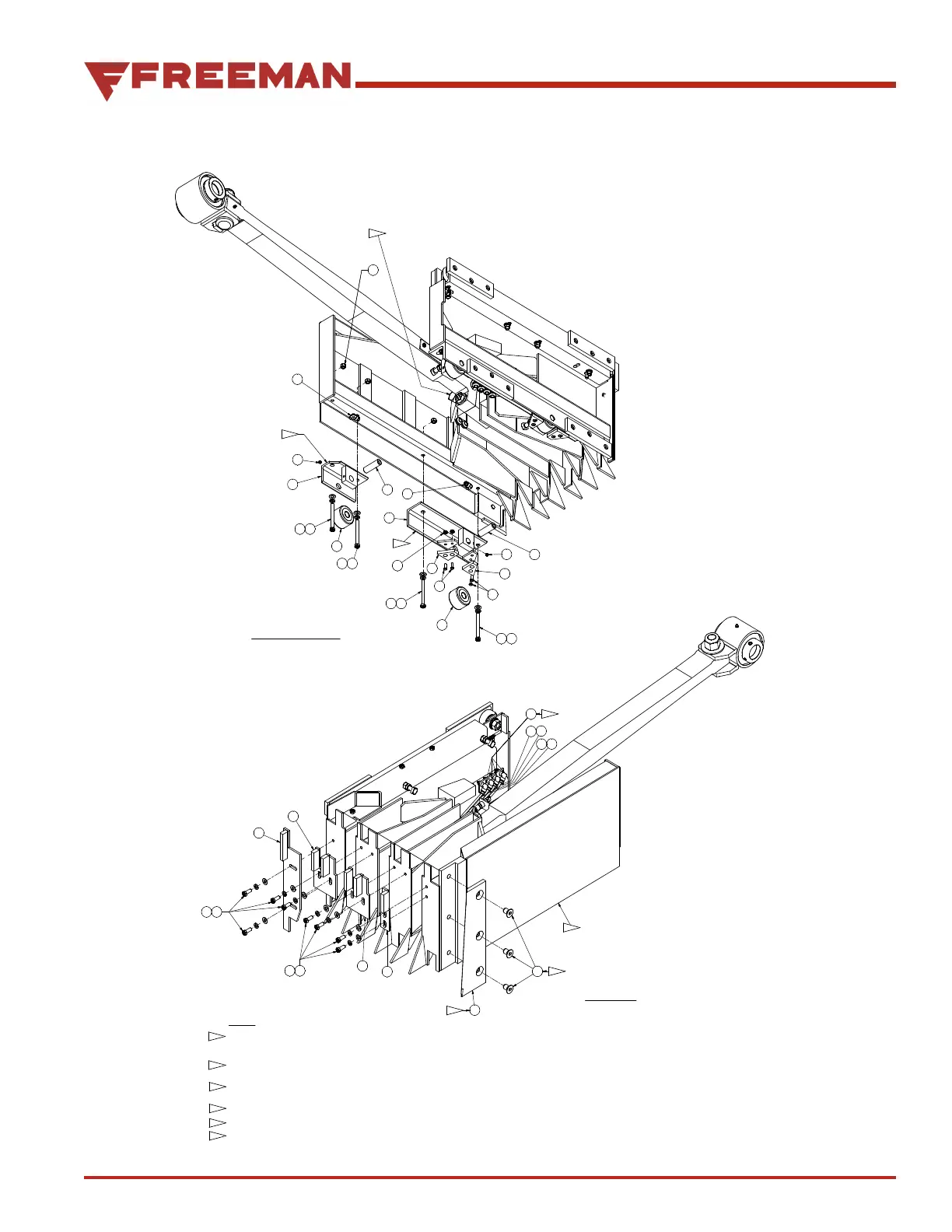

BOTTOM LEFT VIEW
SHOWN WITHOUT BOTTOM PLATE
24
30
15
9
20
22
13
20
22
39
20
22
28
11
13
28
2022
12
30
3-1
3-1
3-3 BOTH SIDES OF PIN
43
43
4X
9
33
4X
BACK VIEW
SHOWN WITHOUT TOP PLATE
43
17
2122
2122
19
3
3
2
3-2
3-4
55
54
53
52
3-5
16
3-6
NOTES:
USE ITEMS 4 & 5 AS REQUIRED TO MAKE ALL ROLLERS
CONTACT AND ROLL ON ASSEMBLY STAND. ROLLERS
SHOULD BE FLAT WITHIN .003" WITH THE ASSEMBLY STAND.
RIGHT SIDE OF PLUNGER ASSEMBLY SHOULD BE PERPENDICULAR
WITHIN +/- 0.015" TO ASSEMBLY STAND.
INSURE RETAINING BOLTS FOR PLUNGER CONNECTING ROD PIN
ARE LOCATED ON THE FLAT OF THE PIN.
TORQUE TO 130 FT LBS
USE LOCTITE #242 ON FITTING THREADS
PLUNGER KNIFE CANNOT EXTEND MOR
E THAN .002" PAST SIDE OF PLUNGER
OR BE RECESSED MO
RE THAN .005" BELOW THE PLUNGER SIDE
3-1
3-2
3-3
3-4
3-5
3-6
Plunger Assy, Kitted for 14”x22”
Gearbox Baler
Page 4 of 4
63
89-096Rev: 11-2016
