Chapter 8: AT-Stat Utility
150

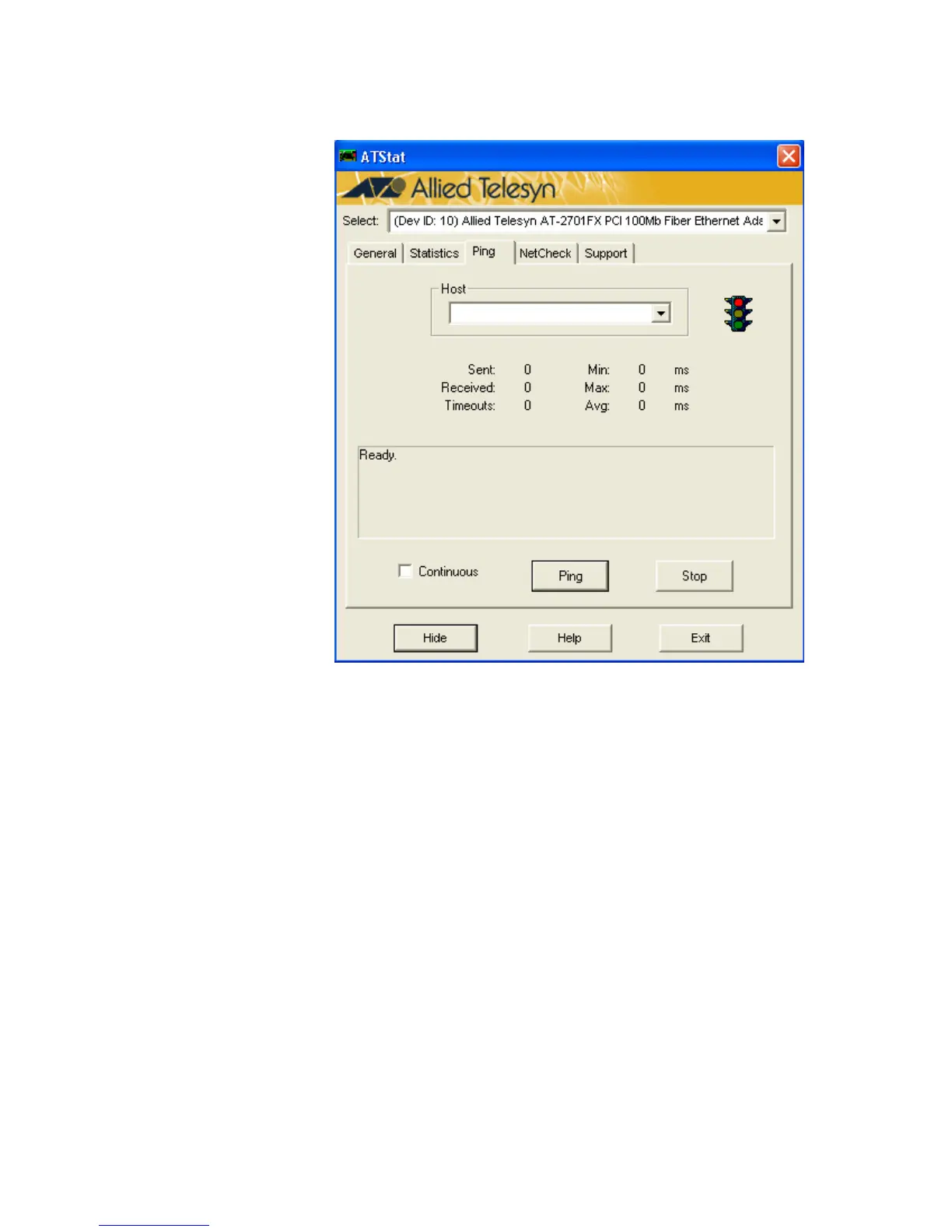

Ping Tab Figure 86 shows the Ping tab.
Figure 86. Ping Tab
You can use this tab to instruct the adapter to ping another node on the
network This feature is helpful in determining whether an operational path
exists between the adapter and another network node.
To instruct the adapter to ping another network device, do the following
procedure:
1. In the Host field, enter the IP address of the end node you want the
adapter to ping. If your network has a domain name server, you can
enter the node’s domain name in place of the IP address.
2. If you want the utility to make continuous ping requests, click
Continuous. If you leave this blank, the utility issues four pings.
3. Click Ping.
4. If you selected the Continuous option, you must click Stop to stop the
pings. If you did not select the option, the test automatically stops after
four pings.
