Allied Telesis AT-8000SSwitch
Switch Installation Guide
AT-8000S/16 Front Panel
The following figure illustrates the AT-8000S/16 front panel.

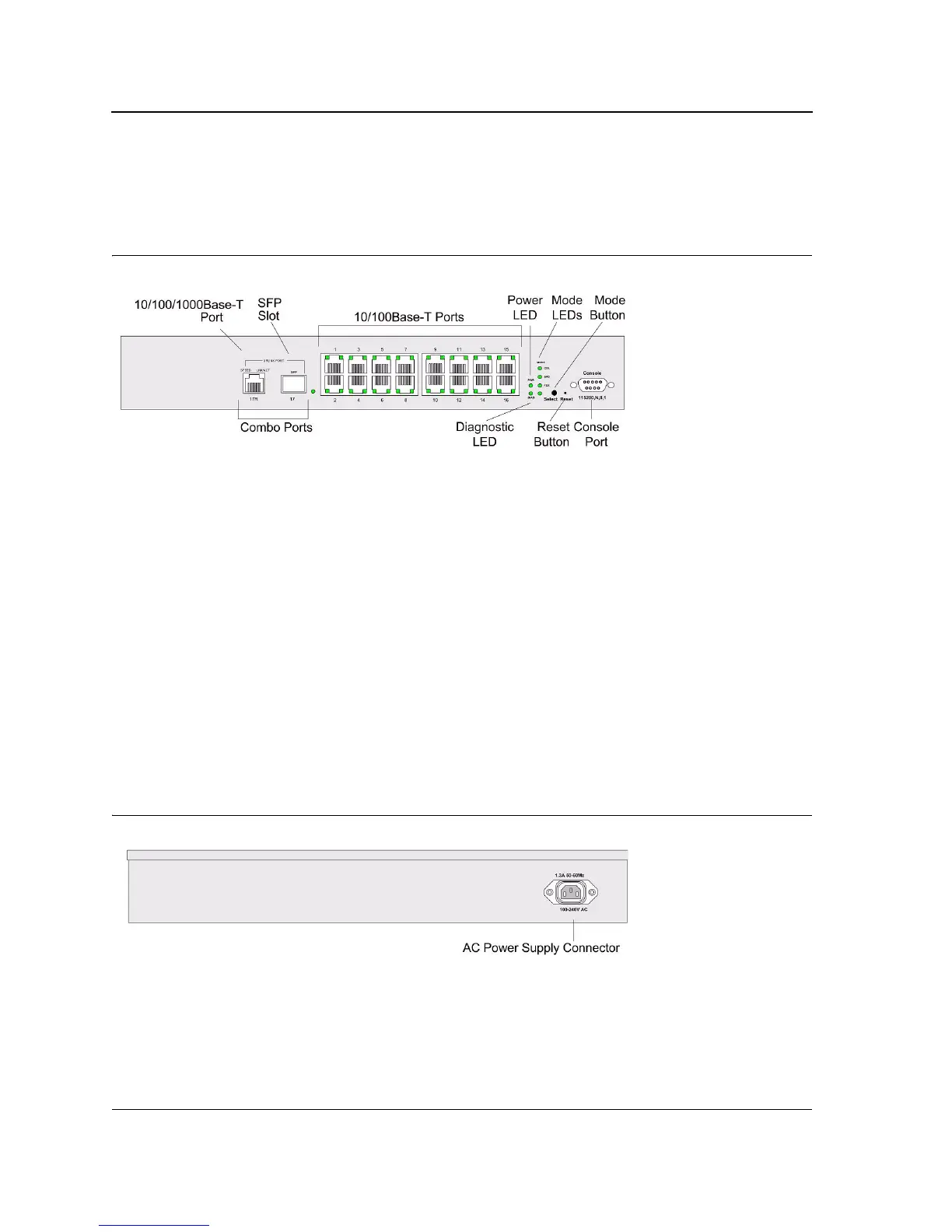

Figure 1: AT-8000S/16 Front Panel
The AT-8000S/16 front panel is configured as follows:
• 16 10/100Mbps Ports — RJ-45 ports designated as 10/100Base-T. The RJ-45 ports are designated as ports
Ports 1 - 16.
• 1 10/100/1000Base-T Copper Port — There is one copper 10/100/100Base-T port designated on the switch
as port 17R. This port is paired with the SFP slot designated on the switch as port 17. Together these two
ports form the Combo ports shown in Figure 1.
• 1 SFP Port — There is one SFP slot supports either a 100Base-FX or a 1000Base-X (fiber) connection and
is designated on the switch as port 17. This SFP slot is paired with the 10/100/1000Base-T copper port which
is designated on the switch as port 17R. Together these two ports form the Combo ports shown in Figure 1.
• DB-9 Console port — An asynchronous serial console port supporting the RS-232 electrical specification.
The port is used to connect the device to the console managing the device.
• Reset Button — Button to reset the device.
• Mode Button — Selects the port LED indications.
AT-8000S/16 Back Panel
The following figure illustrates the AT-8000S/16 back panel.
Figure 2: AT-8000S/16 Back Panel
The AT-8000S/16 back panel is configured as follows:
• Power Connector — AC power supply interface.
