Product Description
Stacking Ports LEDs
Page 21
Stacking Ports LEDs

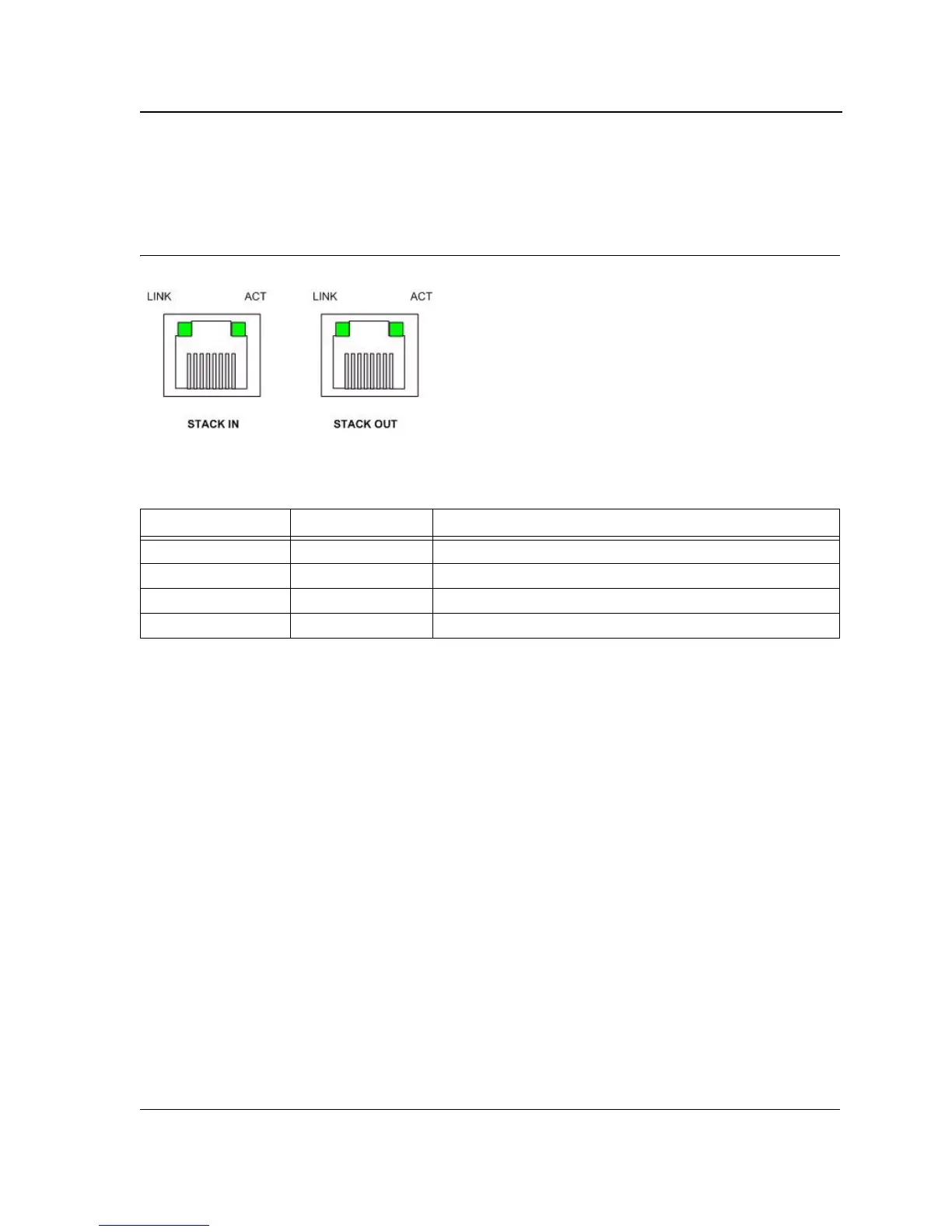

The following figure illustrates the Stacking port LEDs.
Figure 17: Stacking Port LEDs
The RJ-45 ports have two LEDs, one is for link and one is for activity. The Stacking LEDs indications are
described in the following table:
Table 8: Stacking Ports LEDs Indications
Port Description LED Indication Description
Left LED - Link Green A link is established on the port.
Off No link is established on the port.
Right LED - Act Green There is data transmission on the port.
Off No link is established on the port.
