Technical Specifications
Page 39
Compliance Standards
The devices conform to the following compliance standards:
The Environmental standard, per ATI QLT 1220
RoHS compliant
The EN50082-1 immunity standard
The following safety standards:
UL1950
CSA22.2 no.950
TUV (EN60950)
CE
The following EMI/Emission standards:
FCC Class A
EN55022 Class A
VCCI Class A
C-TICK
Cable, Port, and Pinout Information
This section describes the devices physical interfaces and provides information about cable connections. Stations
are connected to the device ports through the physical interface ports on the front panel. For each station, the
appropriate mode (Half/Full Duplex, Auto) is set.
Pin Connections for the 10/100/1000 Ethernet Interface
The switching port can connect to stations wired in standard RJ-45 Ethernet station mode using straight cables.
Transmission devices connected to each other use crossed cables. The following figure illustrates the pin
allocation.

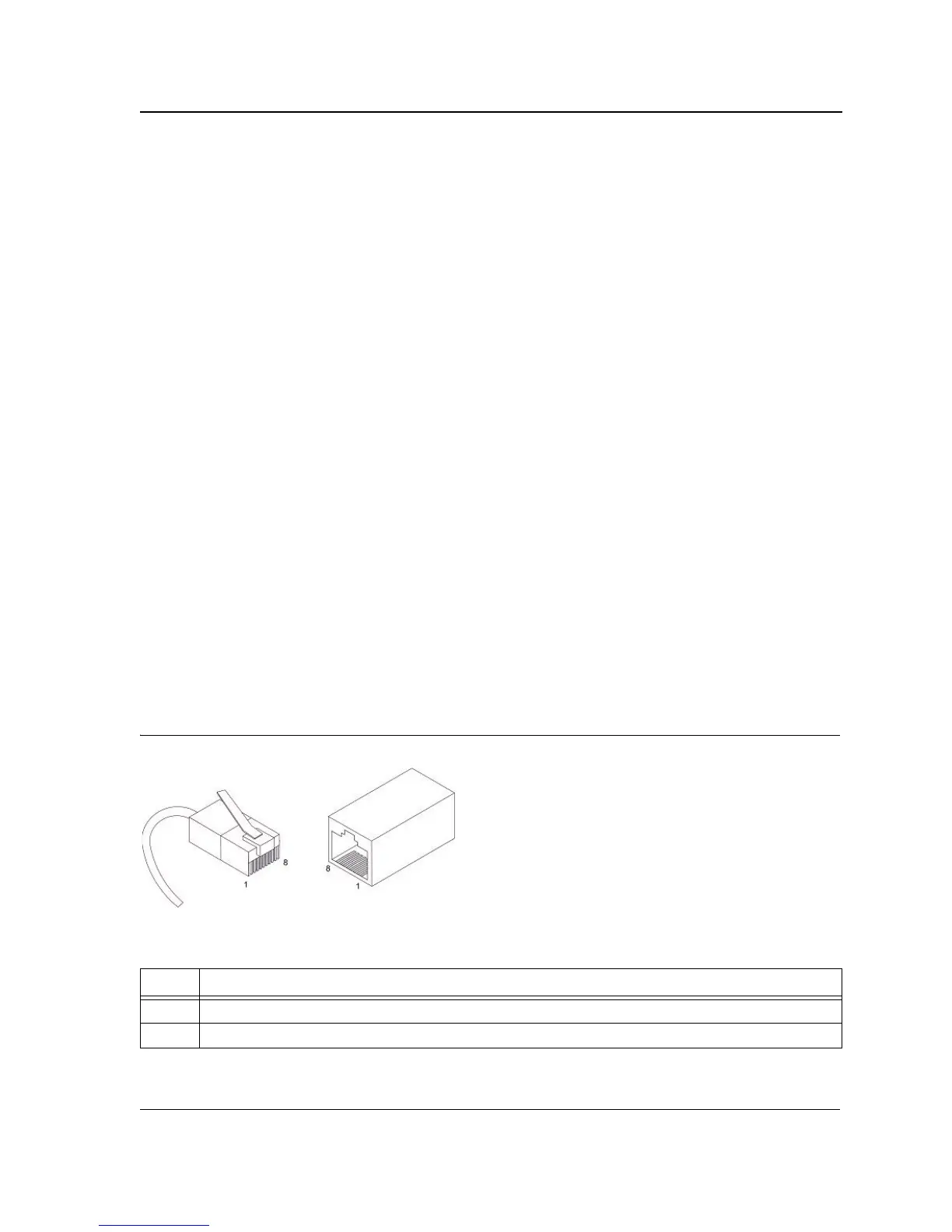

Figure 21: RJ-45 Pin Allocation
The following table describes the pin allocation
Table 9: RJ-45 Pin Connections for 10/100/1000 Base-T
Pin Use
1 TxRx 1+
2 TxRx 1-
