Port-based
Example 1
Figure 101 illustrates an example of one AT-9000/28 Gigabit Ethernet
Switch with three port-based VLANs. (The Default_VLAN is not shown in
the following examples.)

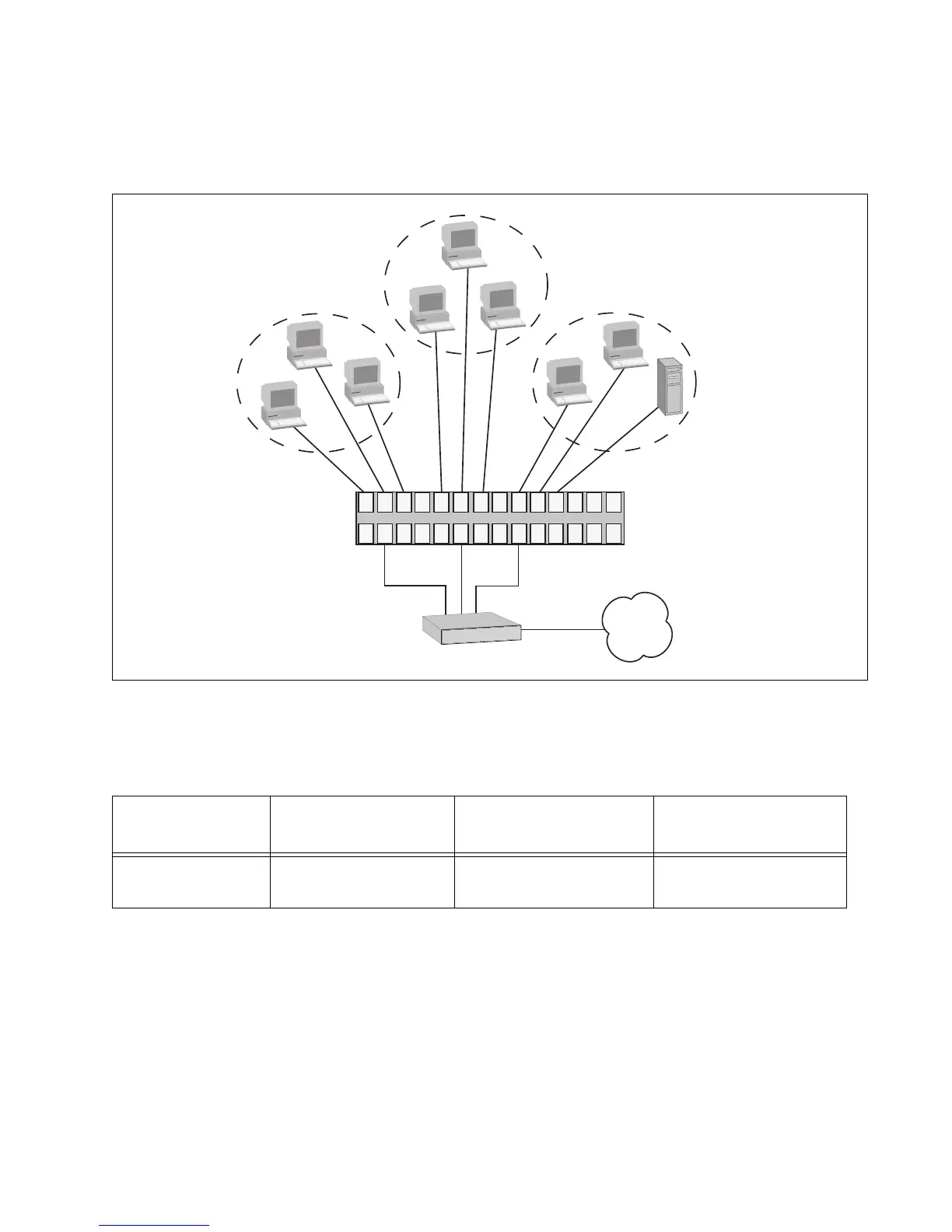

Figure 101. Port-based VLAN - Example 1
The table below lists the port assignments for the Sales, Engineering, and
Production VLANs on the switch.
Each VLAN has a unique VID. You assign a VID number when you create
a VLAN.
The ports have been assigned PVID values. A port’s PVID is assigned
automatically by the switch when you create the VLANs. The PVID of a
port is the same as the VID in which the port is an untagged member.
WAN
2
3
4
5
6
79 1912123171511
13
8 10 12 14 18 20 22 2416
25 26
27 28
Router
AT-9000/28 Gigabit
Sales VLAN
(VID 2)
Engineering VLAN
(VID 3)
Production VLAN
(VID 4)
Ethernet Switch
Sales VLAN (VID 2) Engineering VLAN
(VID 3)
Production VLAN
(VID 4)
AT-9000/28
Switch
Ports 1, 3 - 5
(PVID 2)
Ports 9, 11 - 13
(PVID 3)
Ports 17 - 19, 21
(PVID 4)
