Chapter 17: IGMP Snooping
242
IGMP Snooping Configuration
This procedure explains how to set IGMP snooping on the switch and set
the IGMP Snooping (V1) age-out timer.
To configure IGMP snooping, perform the following procedure:
1. From the main menu on the left side of the page, select the Bridge
folder.
The Bridge folder expands.
2. From the Bridge folder, select IGMP Snooping.
The IGMP Snooping Page is displayed. See Figure 87.

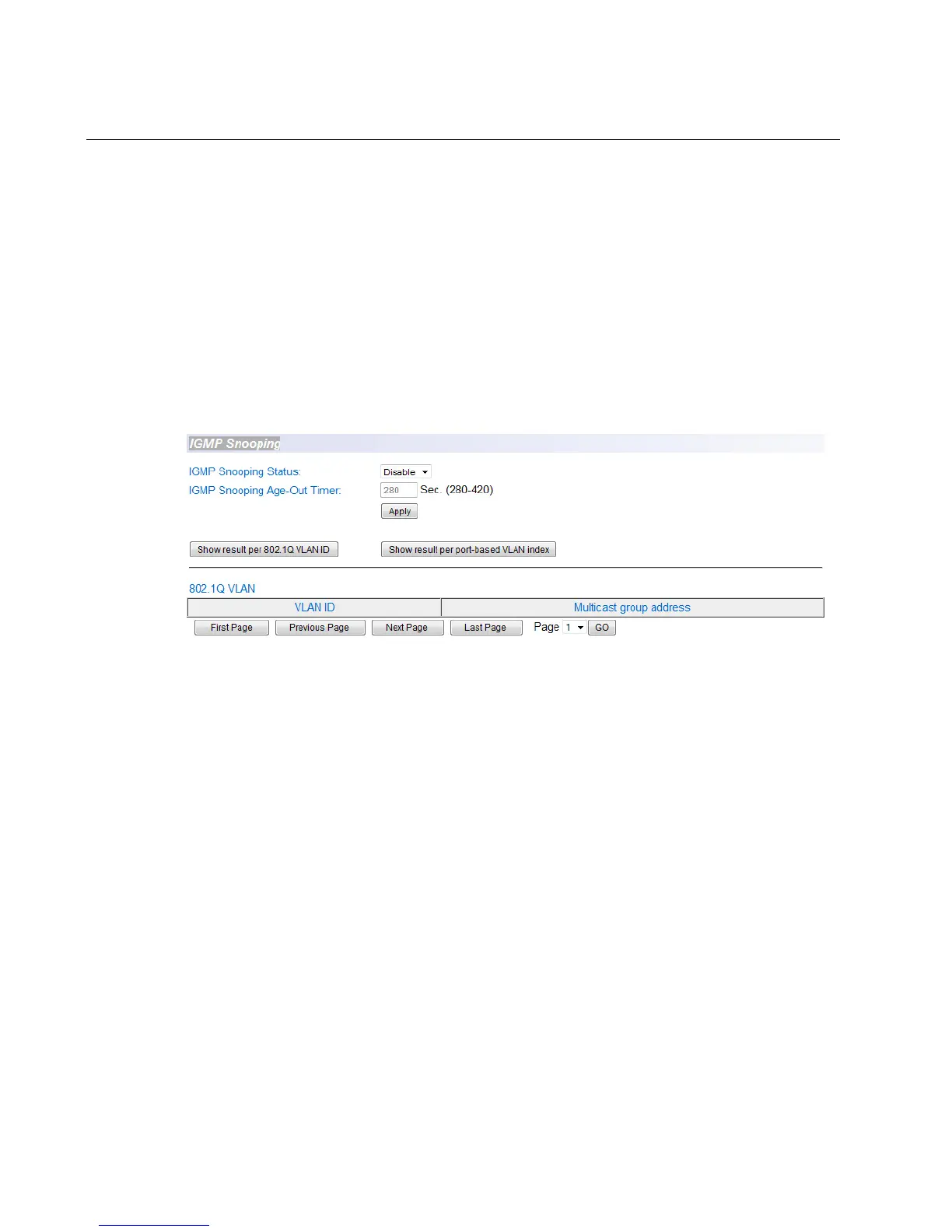

Figure 87. IGMP Snooping Page
3. To enable or disable IGMP Snooping on the switch, select Enable or
Disable.
4. To set the age-out timer, type the number of seconds you want the
switch to wait before it purges an inactive dynamic MAC address. The
range of this parameter is between 280 to 420 seconds.
5. Click Apply.
