AT-GS950/24 Web Interface User Guide
247
Port Access
Control
Configuration
To configure port-based access control, perform the following procedure:
1. Select the Security folder from the main menu on the left side of the
page.
The Security folder expands.
2. From the Security folder, select Port Access Control. The Port
Access Control Configuration Page is displayed. See Figure 89.

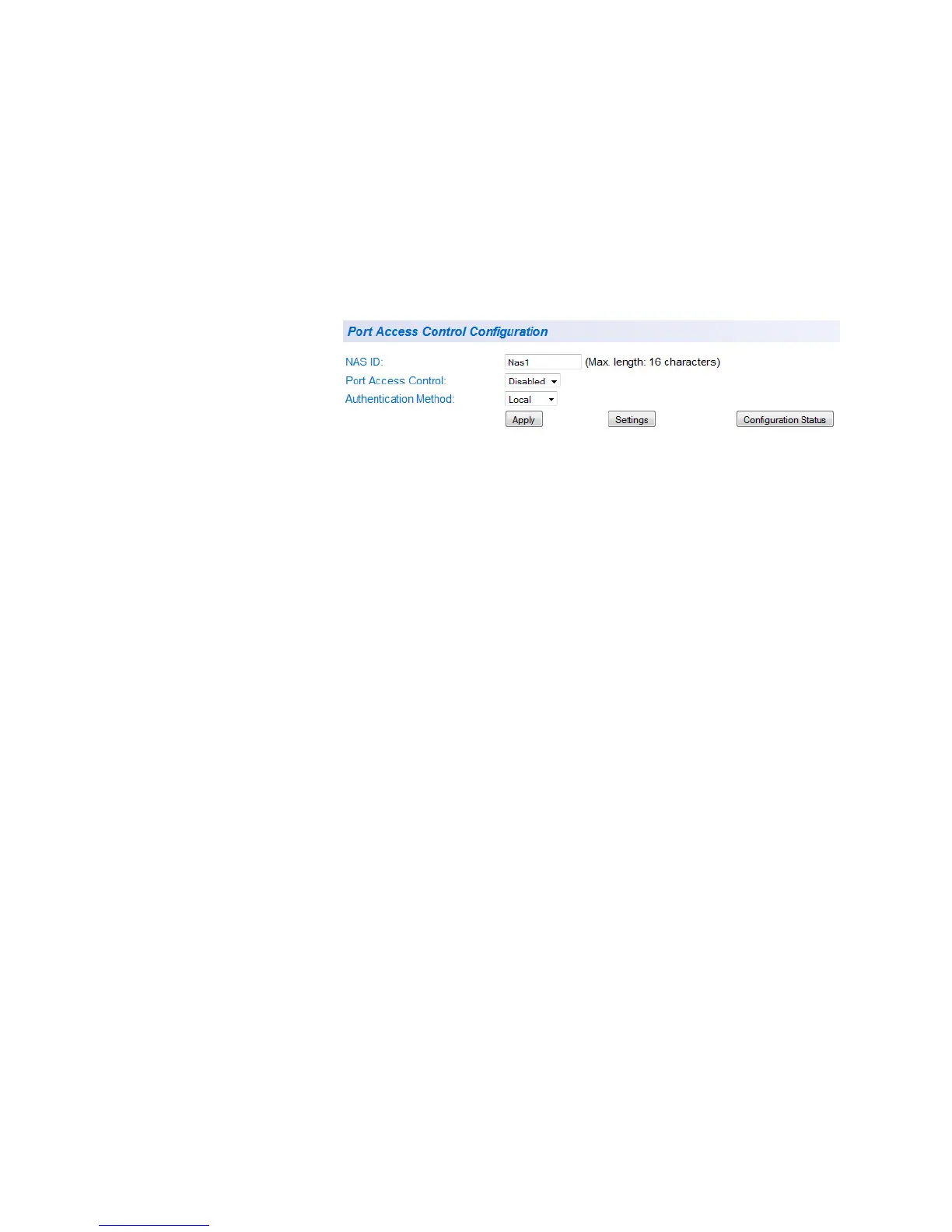

Figure 89. Port Access Control Configuration Page
3. Configure the following parameters as required:
NAS ID - This parameter assigns an 802.1x identifier to the switch
that applies to all ports. The NAS ID can be up to sixteen
characters. Valid characters are 0 to 9, a to z, and A to Z. Spaces
are allowed. Specifying an NAS ID is optional.
Port Access Control - This parameter enables or disables Port
Access Control. Select one of the following choices from the pull-
down menu:
Enable - The Port Access Control feature is activated.
Disable - The Port Access Control feature is de-activated.
Authentication Method - This parameter indicates the
authentication method used by the switch. Select one of the
following choices:
RADIUS - This parameter configures port security for remote
authentication. After completing steps 4 - 6, you must configure
the “RADIUS Client” on page 251.
Local - This parameter configures port security for local
authentication.After completing steps 4 - 6, you must configure
the parameters for “Dial-in User - Local Authentication” on
page 254.
When you are finished configuring the parameters, click Apply.
4. Click Settings to configure advanced configuration parameters.
Configure the following parameters as required:
