Alltion AC-5000 - Installation of Mobile Floor Stand

Alltion (Guangxi) Instrument Co., Ltd.
10
Product Assembly | AC-5000 User’s Manual
Installation of Mobile Floor Stand

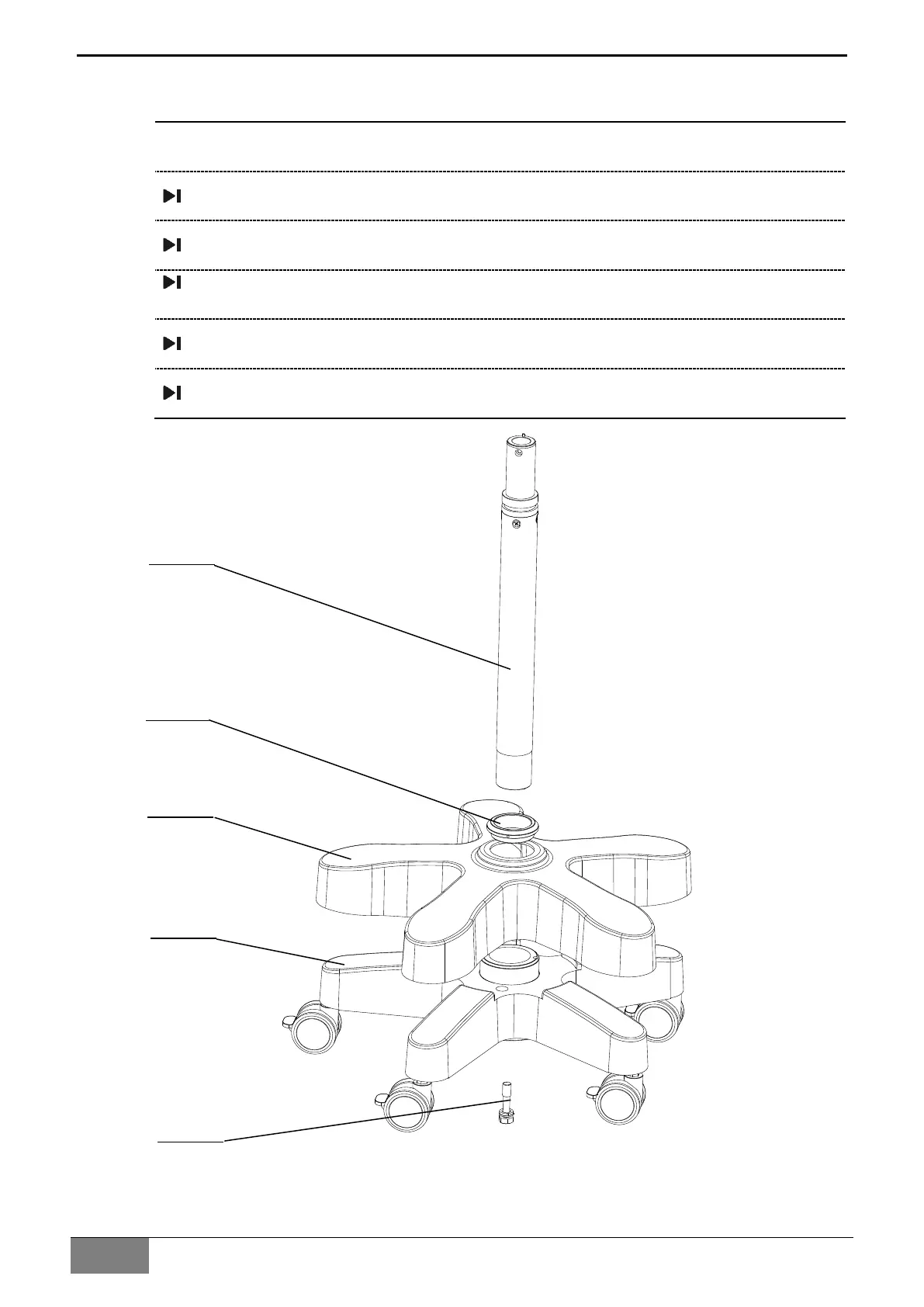

 Move the base(1) from the wood pallet, take away the plastic cover(2) and the
compression ring(3) firstly and put it aside;
Put base(1) on the horizontal ground and lock five casters;
Fit the plastic cover(2) onto the base(1) and tighten the compression ring (3);
Insert the upright post(4) in the installation hole of base (1), the positioning pin and the
positioning hole need to be aligned to ensure that the upright post is installed in place;
After the upright post is installed in place, tighten the screw(5);
Finish the assembly of the mobile floor stand.
1
2
3
4
5
