AC-5000 User’s Manual | Performance Parameters
27
Performance Parameters
Basic Dimension

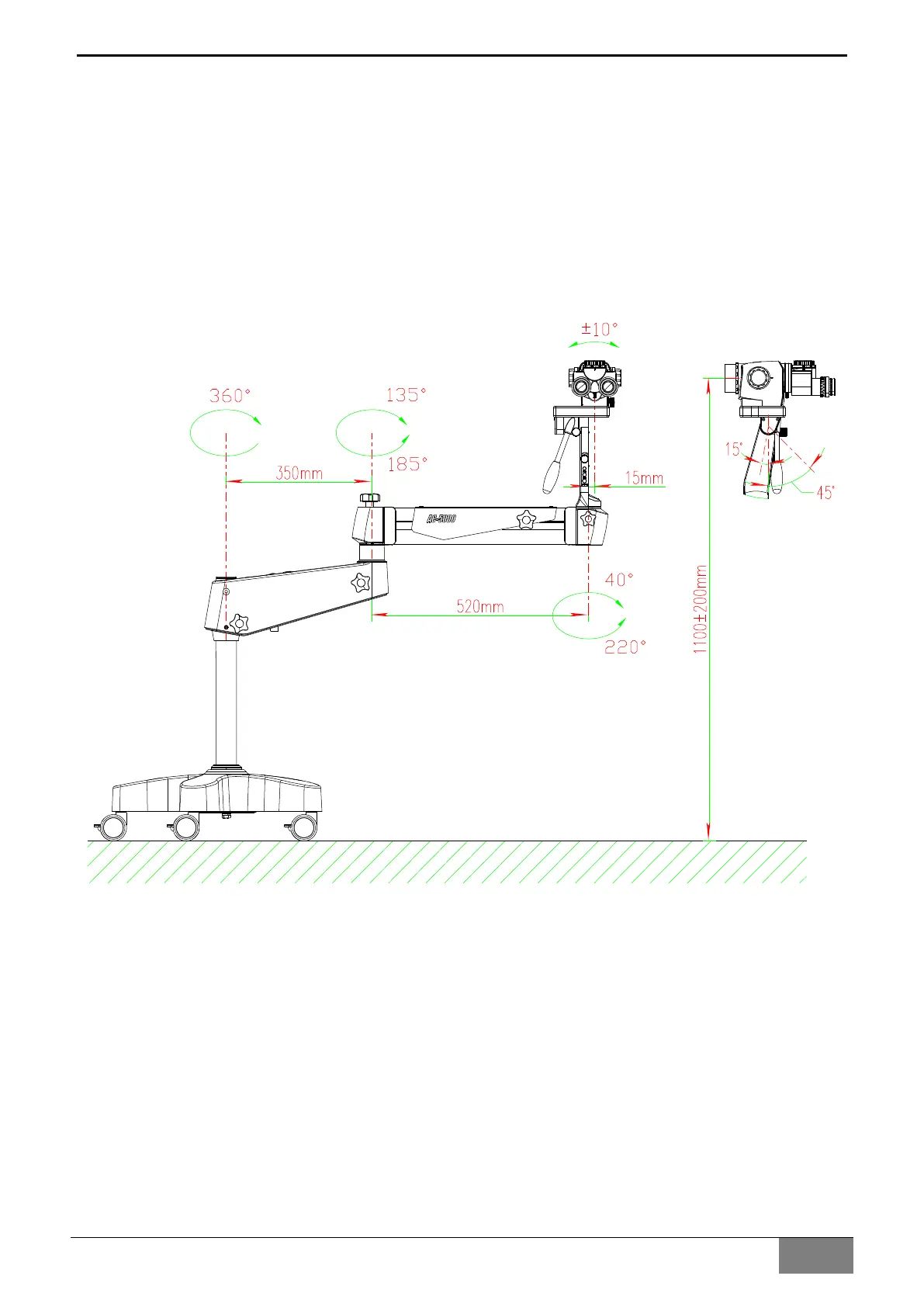

The basic dimensions of the whole machine and the motion range of the joint are shown in the following
figure:
