AC-5000 User’s Manual | Product Assembly
11

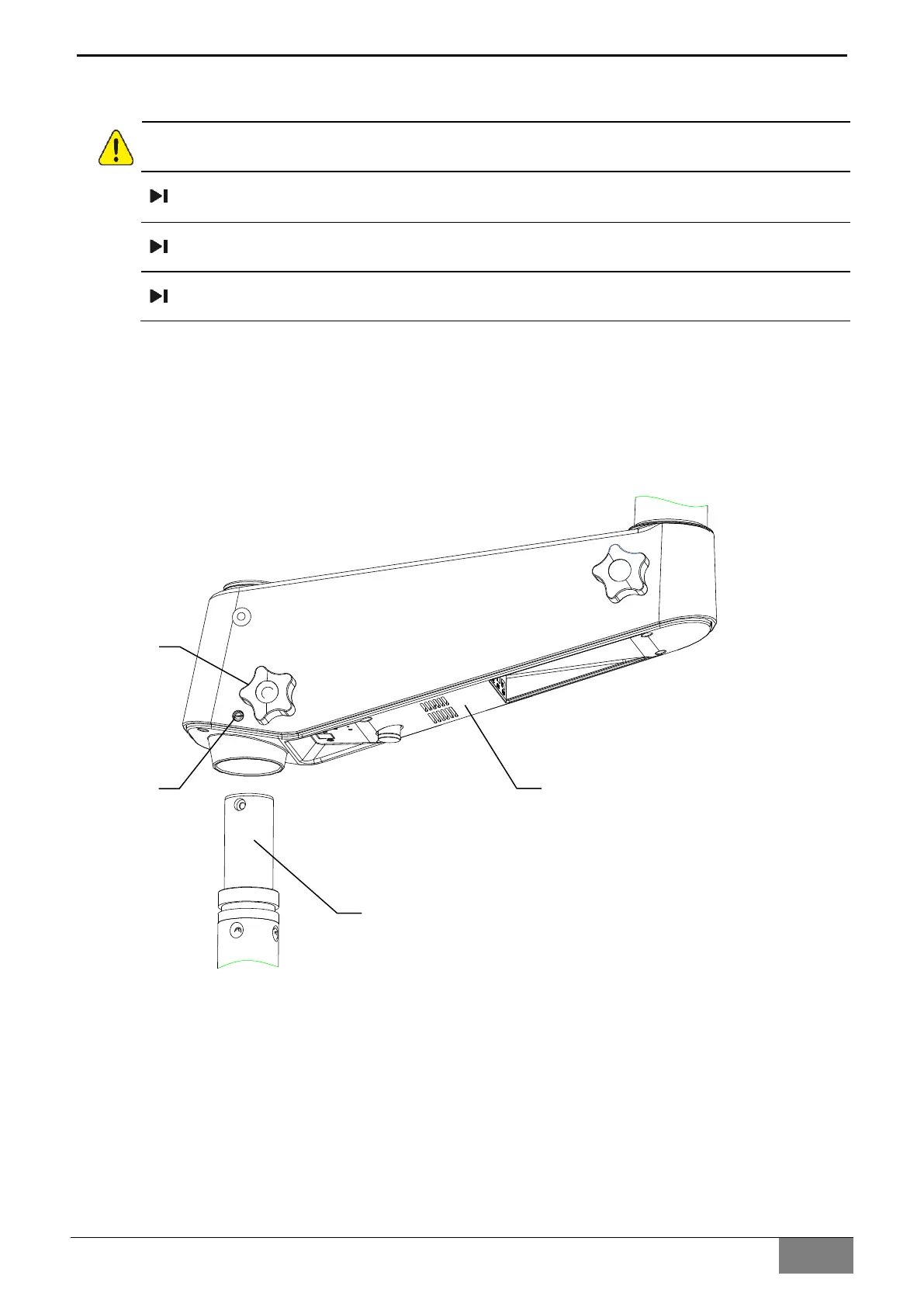

Installation of Cross Arm System
During assembly, pay attention to whether the revolute joints are locked to avoid swinging during
the assembly of the bracket.
Loosen limit screw (1) and locking knob(2);
Install the cross arm (3) to the pole (4);
Install the limit screw (1) on the cross arm (3), finish installation.
1
4
3
2
