Product Assembly | AC-5000 User’s Manual

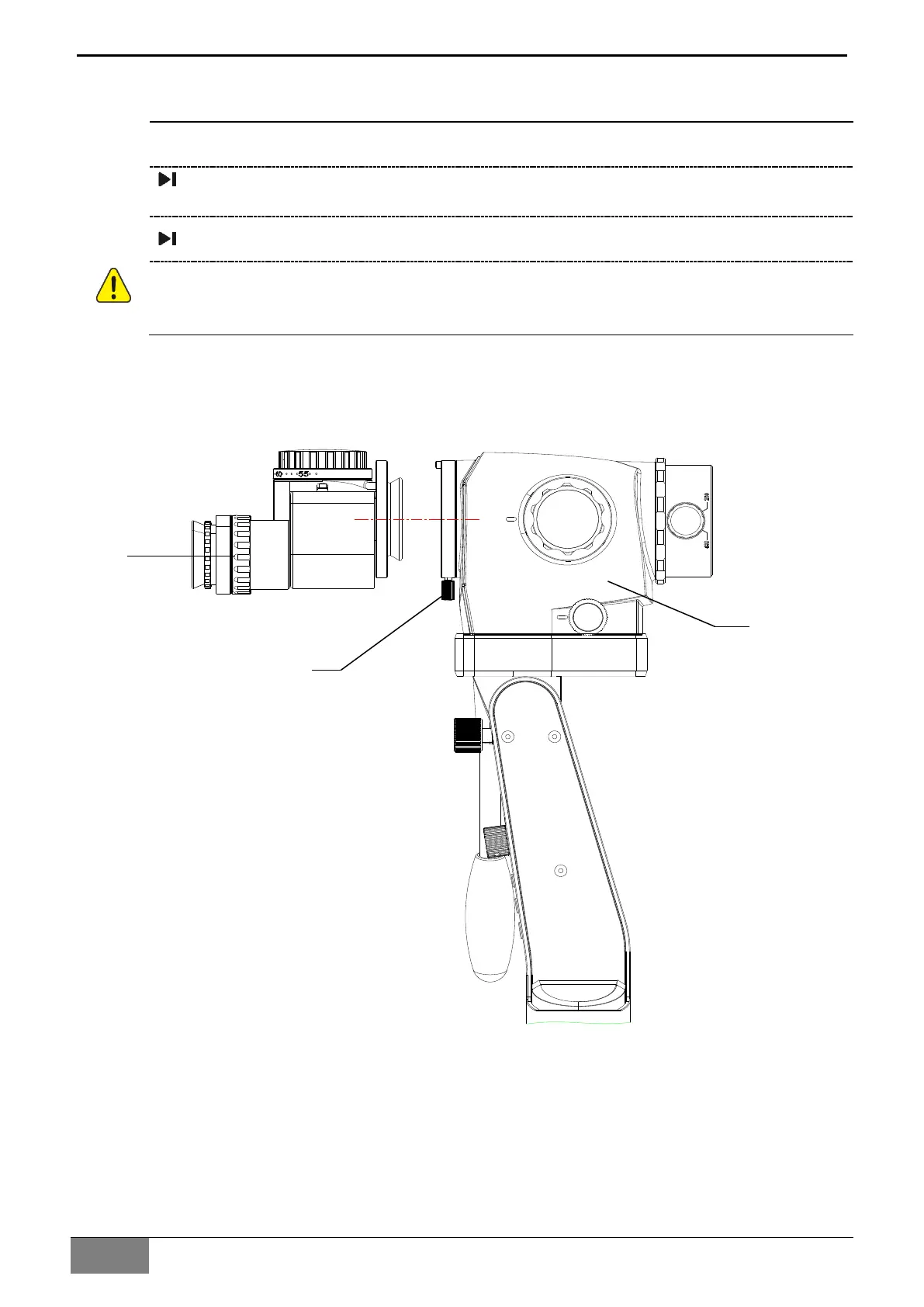

Installation of Binocular Head Barrel
Make sure that the locking screw (2) is completely loosened before installation;
Align the binocular tube (1) at the positioning pin, and install it in the bayonet of microscope
body (3);
Tighten the locking screw (2);
Before loosening the grip, please make sure: the binocular head barrel has been fully
installed in place and has been completely clamped in the bayonet; the locking screw has
been tightened. Otherwise, the binocular head barrel will be at risk of falling.
