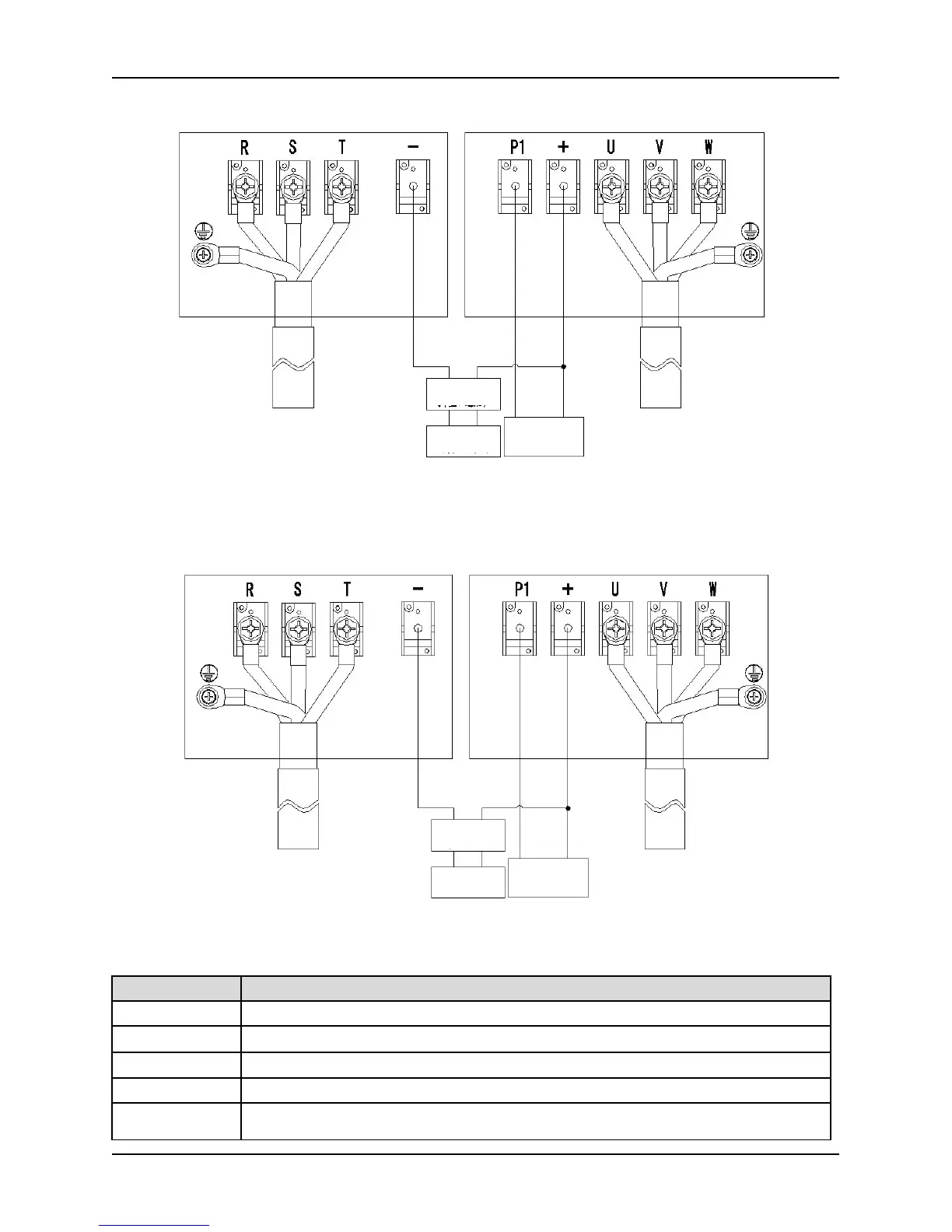

Fig. 2-7 Terminals of major loops of 3160G ~ 3355G models
Fig. 2-8 Terminals of major loops of 3400G ~ 3500G models
Table 2-6 Function and description of terminals of major loops of 3160G~3500G
Terminal symbol Terminal name and function
R、S、T Three-phase AC 380V input terminal
P1、+
Reserved terminals for an external DC reactor
- DC negative bus output terminals
U、V、W Three-phase AC output terminals
PE
Protective earth terminals for input power or shield earth terminals for motor cable and
braking resistor cables
