Alpha 6000S series - Control Circuit Connection

Chapter 2 Installation and Wiring
15
The longer the distance between the inverter and the motor, the higher the carrier frequency would be, and the
greater the high harmonic leakage current of the cables would be. Leakage current has a negative impact to inverters
and Equipment nearby, so reduce leakage current as little as possible.
The relationship of the distance between the inverter and the motor and carrier frequency is shown as Table 2-7
Table 2-7 Distance between the inverter and the motor and carrier frequency.
Distance between inverter and motor Below 50m Below 100m Above 100m
Carrier frequency Below 8 kHz Below 4 kHz Below 2 kHz
2.5 Control Circuit Connection
2.5.1 Function of Control Circuit Terminals

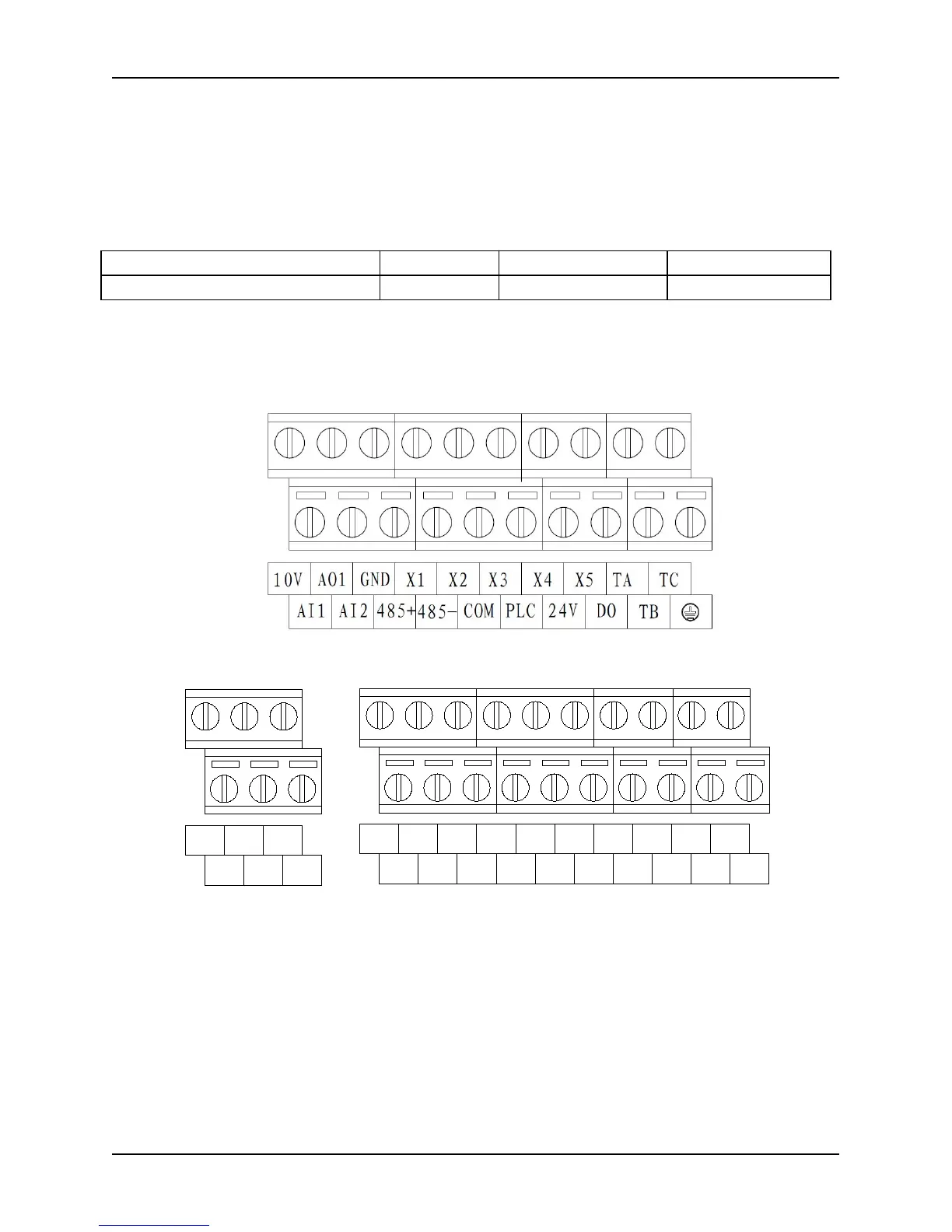

Fig. 2-11 Terminal arrangement of control loop of S2R4GB ~ 3004GB models
10V
AI3
AO2
AI2
GND
AO1
GND
X6
485-
X5
485+
X4
24V
X3
PLC
X2
COM
DO
Y1
TA
CME
TB TC
COM
X1
AI1
Fig. 2-12 Terminal arrangement of control loop of 35R5GB and above models
