3.4 Commissioning of keypad
Assume that the inverter need to run forward at 30.00 Hz at first, then run reverse at the same frequency. Using the
keypad can take the following steps to realize the task:
A typical operation pattern using the keypad:
P o wer
o n
Frequen cy
Set t in g
Fo r ward Run
Fo r ward
3 0 .0 0 H z
Rev erse Run
a b c d
Rev erse
3 0 . 0 0 H z
e
S t o p

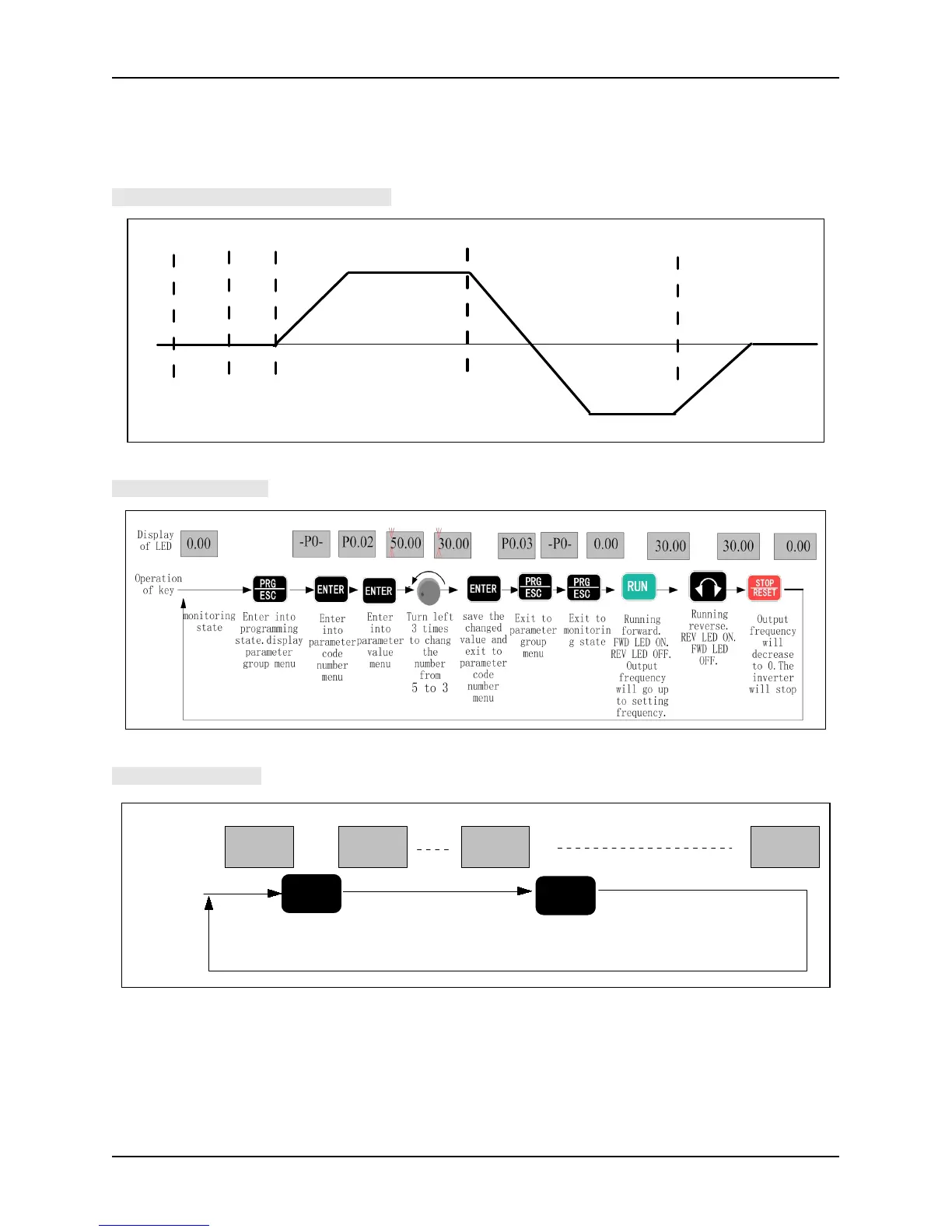

Figure 3-13 Operation sequence by keypad
Run and stop operation:
Figure 3-14 Flow chart of running and stop operation
Jog running operation: (Assume that the current run command mode is keypad and the inverter is at stop state)
0.00 0.50 5.00 0.00
output
frequency
monitor
display
depress
jog key
and keep
on
Display
of LED
Operation
of key
stop
Release
the key
JO G
The inverter goes into
running state and the
output frequecy goes up
gradually to the jogging
setting frequency
JOG
Output frequency
will drop gradually
untill the inverter
is stop
Figure 3-15 Example of Jog running
3.5 Operation of Control Circuit Terminal
Assume that the inverter needs to run forward at 30.00 Hz at first, and then stop by terminal, using the keypad can
take the following steps to realize the task:
