Alpha 6000S series - Page 46

Chapter 3 Operation
45
开始
确认接线正确后上电
恢复出厂参数（设置PF.02=3）
按照电机铭牌设定基本频率P0.09、最大输出电压P0.1
6、电机参数P0.14、PA.01-PA.04（PA.15-PA.18）
按下JOG键点动运行
若电机旋转方向错误，修改P2.37、P2.45或断电并
交换任意两相电机线、编码器AB线后再上电
电机参数整定：带负载时实施静止参数整定PA.29=1；
无负载时实施旋转整定PA.29=2
按下RUN键后开始自整定，整定完毕后自动停机
设置预备运行的设定频率P0.02
选择控制方式
P0.01=0或3，V/F控制，
设定P9组V/F控制参数
P0.01=1或2，矢量控制
按RUN键运行
按STOP/RESET键停机
结束
若电机旋转方向错
误,更改P2.37
P0.01=1闭环矢量
(3004GB以下保留);
是否
使用内置PG
设置内置PG参数P2.44、P2.46、P3.05、P3.06
(3004GB以下:P3.04、P3.05)、P2.49、P2.50;
设置扩展PG参数P2.42、P2.46、P2.49、P2.50
监控运行电流和频率，如果出现异常则检查编
码器每转脉冲数P2.42、更改编码器方向P2.43或
断电修改编码器的接线
监控运行电流和频率，如果出现异常则检查编
码器每转脉冲数P2.44、更改编码器方向P2.45或
断电修改编码器的接线
若电机旋转方向错误，修改P2.37、P2.43或断电并
交换任意两相电机线、编码器AB线后再上电
是
否

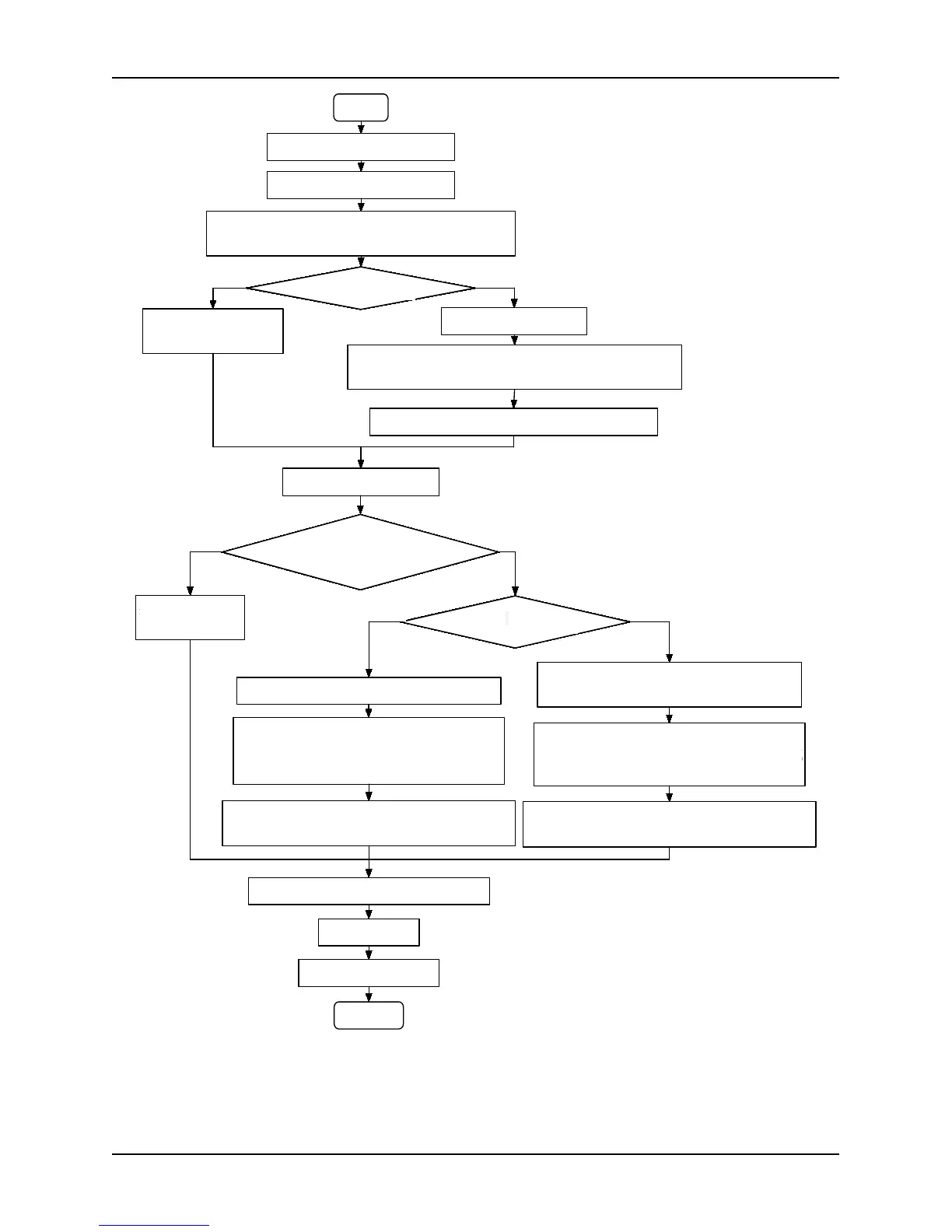

Fig. 3-12 Operation process of inverter first test run operation
Start
Power on after correct wiring
Recovery factory parameters
(set PF.02 = 3)
Set fundamental frequency P0.09, maximum output voltage
P0.16, motor parameters P0.14, PA.01-PA.04 (PA.15-PA.18) in
accordance with the motor nameplate.
P0.01 = 0 or 3, V/F control,
set V/F control parameters of
Group P9
Control manner select
P0.01 = 1 or 2, vector control
Tuning of motor parameters: perform static parameter tuning PA.29 =
1 when there is load; perform rotation parameter tuning PA.29 = 2
when there is no load
Auto-tuning start after pressing Run key, and it will
automatically shut down after tuning
Press the JOG key for inching
running
P0.01 closed loop vector
(reserve for models below
3004GB);
No
Yes
No
Using built-in PG
If the motor rotates in
wrong direction,
change P2.37
Yes
Set extension parameters of PG, P2.42, P2.46, P2.49,
P2.50
Monitor running current and frequency, if an abnormality
occurs, check pulses per revolution P2.42 of the encoder,
change encoder direction P2.43 or power off and modify
the wiring of the encoder
If the motor rotates in the wrong direction, modify P2.37,
P2.43 or power off and exchange any two-phase motor cable
with encoder AB line, and then power on
Set the set frequency P0.02 ready to run
Press RUN key to
run the inverter
Press the STOP/RESET key
to stop the inverter
End
If the motor rotates in the wrong direction, modify P2.37,
P2.45 or power off and exchange any two-phase motor cable
with encoder AB line, and then power on
Monitor running current and frequency, if an abnormality
occurs, check pulses per revolution P2.44 of the encoder,
change encoder direction P2.45 or power off and modify
the wiring of the encoder
Setting built-in PG parameters P2.44, P2.46, P3.05,
P3.06 (models below 3004GB: P3.04, P3.05), P2.49,
P2.50;
