Chapter 5 Detailed Function Introductions
P0.09 fundamental frequency
Setting range: 3004GB and below: 0.10 ~ 650.0Hz 35R5GB and above:
0.10~400.0Hz
P0.10 maximum output
frequency
Setting range: 3004GB and below: MAX [50.00Hz, upper limit frequency, set
frequency, multi-stage frequency, hopping frequency] ~ 650.0Hz [50.00Hz]
35R5GB and above: MAX [50.00Hz, upper limit frequency, set frequency,
multi-stage frequency, hopping frequency] ~ 400.0Hz [50.00Hz]
Notes:
Fundamental frequency FBASE: When the output voltage of the inverter is equal to the minimum output
frequency of the rated voltage UN, it is used as the benchmark of the regulating frequency. Usually, the rated
frequency of the motor is used as the set point of the fundamental frequency. The adjustable range of
fundamental frequency FBASE of this series of inverters is 0.10 ~ 650.0Hz. In the usual case of the use,
FBASE is selected according to the rated frequency of the motor. In particular occasions of use, it can be set
according to the operating requirement, but it should be noted the fitting with V / F characteristic of the load
motor and the output requirements of the motor, which is shown in Fig. 5-0-1 Relationship between output
frequency and output voltage.
输出电压V
额定电压
输出频率(Hz)
基本频率 最大输出频率

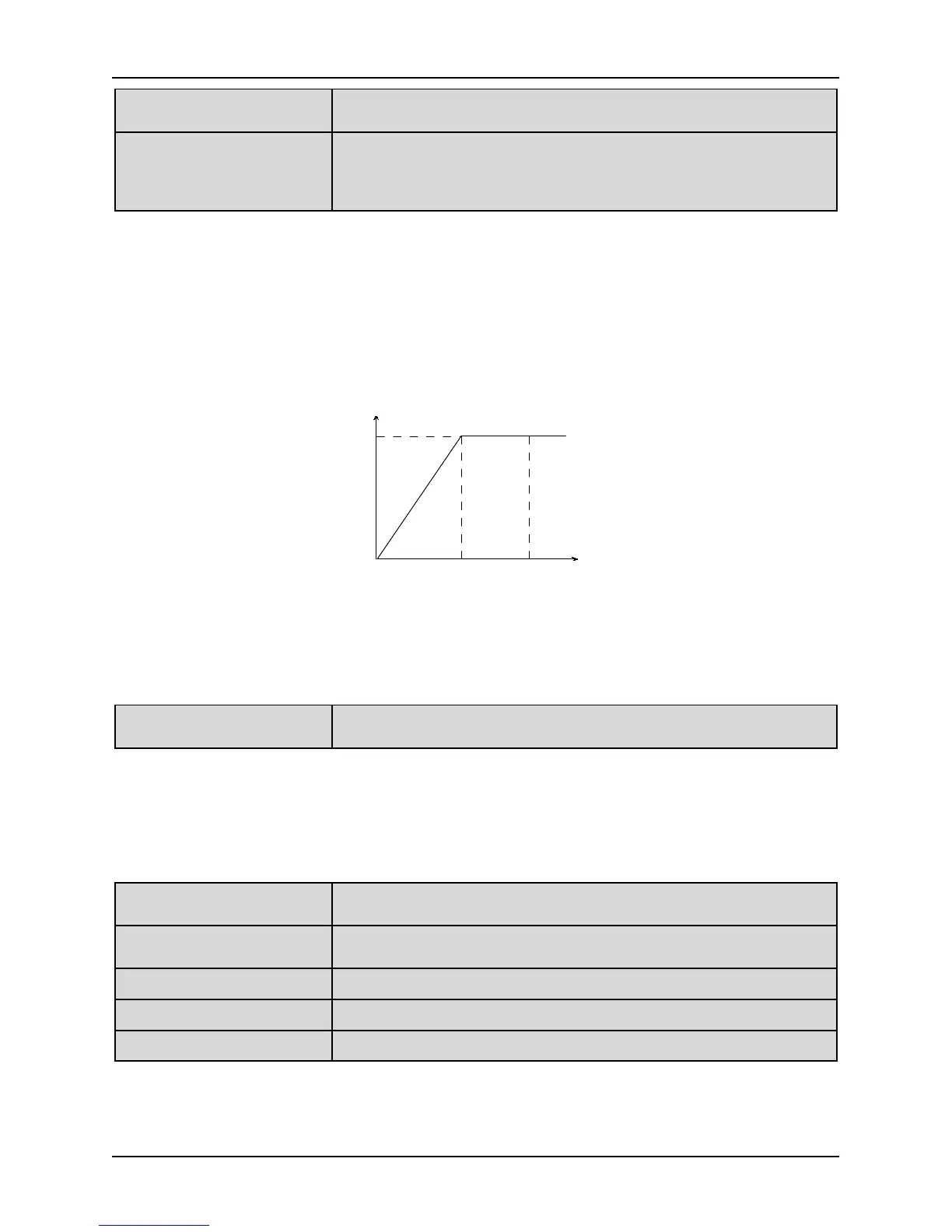

Fig. 5-0-1 Relationship between output frequency and output voltage
Maximum frequency FMAX is the maximum frequency of this series of inverter allowed to output. If the set
point is greater than the rated value of the drive unit, it may result in damage to motor and mechanical
equipment.
P 0.11 upper limit frequency
source
Setting range: 0 ~ 5 [ 0]
0: Digital setting 1: Terminal AI1
2: Terminal AI2 3: Terminal AI3 (reserve for 3004GB and below models)
4: Pulse input 5: Communication setting
Notes:
In non-zero setting, adjustable range of the upper limit frequency is the set point of 0 ~ P0.12 upper limit
frequency.
P0.12 upper limit frequency
Setting range: MAX (lower limit frequency, jog frequency, UP/DN given
amplitude, sleep threshold) ~ maximum frequency [50.00Hz]
P0.13 Offset of upper limit
frequency
Setting range: 0.00 ~ upper limit frequency [0.00Hz]
P0.14 Rated voltage of motor Setting range: 60 ~ 480V [Rated voltage]
P0.15 lower limit frequency Setting range: 0.00 ~ upper limit frequency [0.00Hz]
P0.16 Maximum output voltage Setting range: 60 ~ 480V [Rated voltage]
Notes:
Upper limit frequency is the highest frequency allowing forwarding rotation and reverse rotation of the
inverter, lower limit frequency is the minimum frequency allowing rotation of the inverter. Set the upper limit
frequency and lower limit frequency, and automatically ensure that the output frequency is not higher than the
