DLM-600 installer & user manual Rev. 1.3 16-11-2011 28 / 39

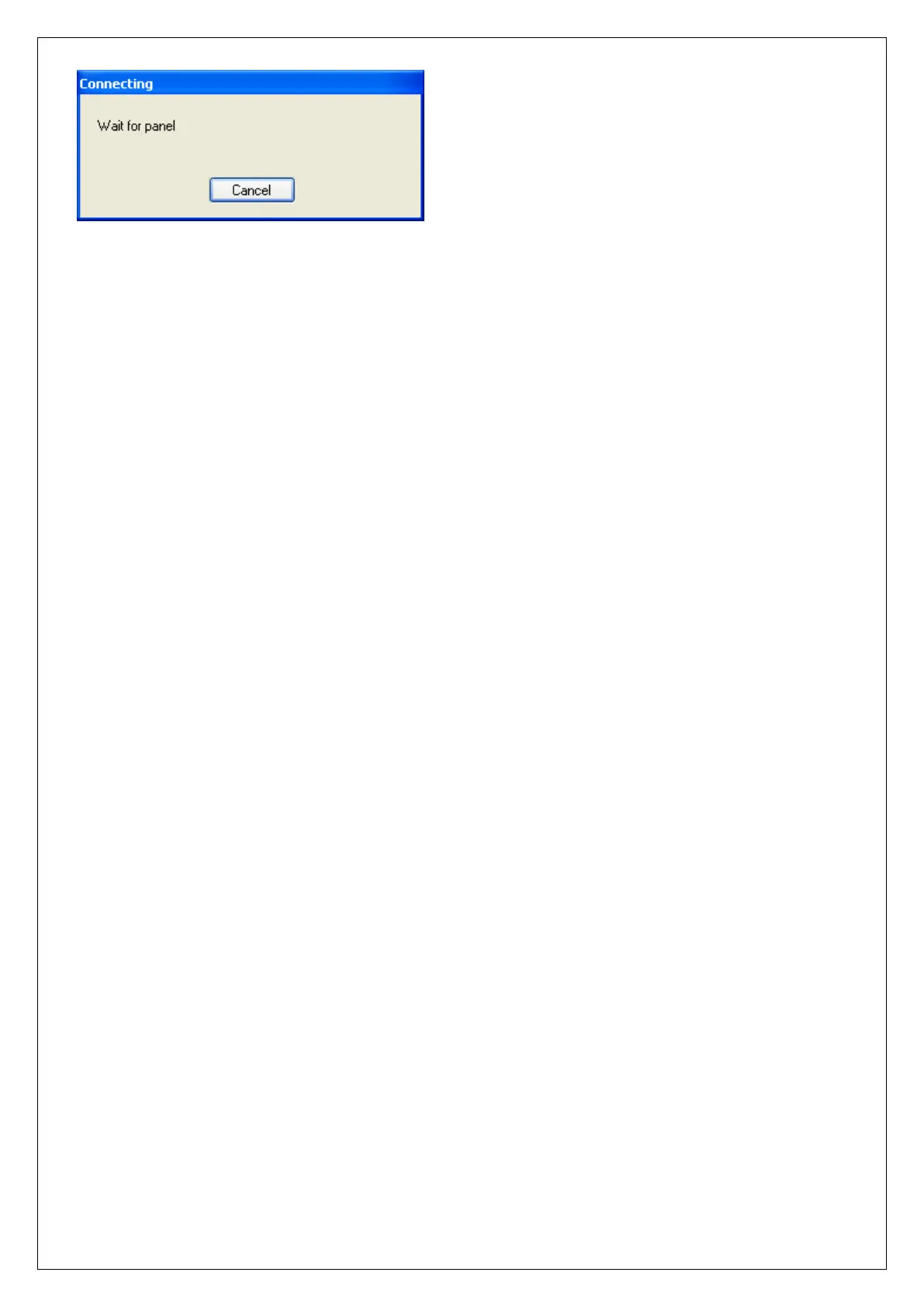

figure 15. Wait for panel connection
RECEIVE AND SEND PROGRAMMING
When the connection is established with the DLM-600, the programming can be received or sent. Before
receiving or sending the programming you need to save the programming file in AlphaTool first.
By pressing the Send button, the programming is sent to the DLM-600 dialer.
By pressing the Receive button, the programming is retrieved from the DLM-600 dialer.
For all other options in AlphaTool such as creating clients, saving programming files, printing files etc,
see the AlphaTool manual.
OUTPUTS ACTIVATED BY REMOTE CONTROL
It is possible to use a DTMF (mobile) telephone to call to the DLM-600 dialer and then activate or
deactivate an output. Outputs must be configured as ‘DTMF control’.
Note: When activating outputs remotely a speech plug-on board (art.code 004162) is needed !
CONNECT
The DLM-600 must be called on the GSM Audio telephone number (not the DATA channel). After the
DLM-600 has picked up the line the house identity speech message is heard followed by the speech
message “Please enter code”. Enter the download code to access the menu. If the download code is
entered correctly you will hear one high tone. If the download code was not entered correctly you will
hear one low tone.
MENU
If the download code was entered correctly the user has access to the control menu. In this menu the
following options are available:
1 1 Activate an open collector output 1
1 0 Deactivate open collector output 1
2 1 Activate 2 open collector output 2
2 0 Disable open collector output 2
3 1 Activate open collector output 3
3 0 Deactivate open collector output 3
4 1 Activate open collector output 4
4 0 Deactivate open collector output 4
9 Disconnect
If no DTMF command is received within 1 minute, the DLM-600 will automatically close the connection
