alphatronics DLM-600 - Communications Port Configuration

DLM-600 installer & user manual Rev. 1.3 16-11-2011 35 / 39

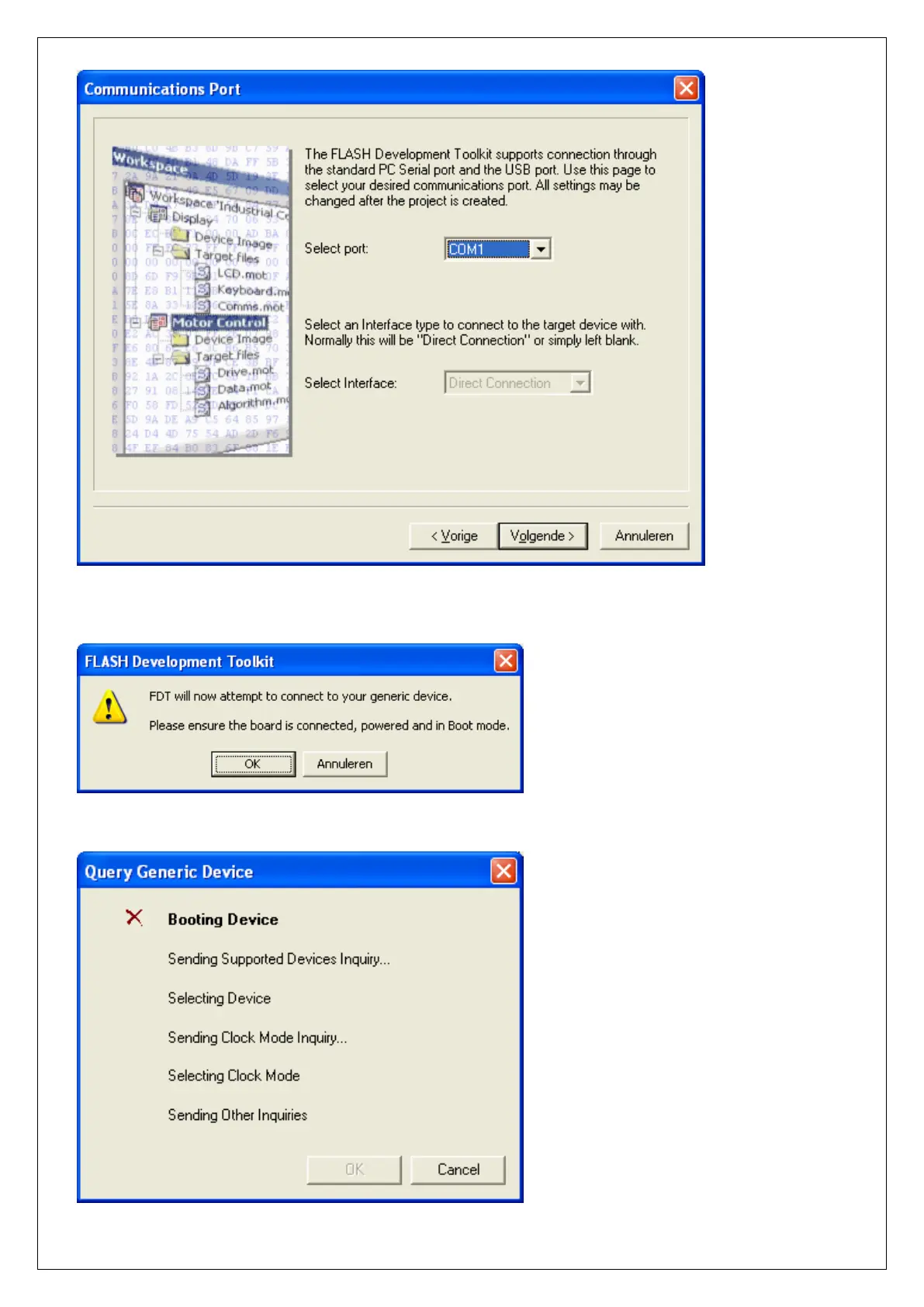

Select the serial COM-port where the programming cable is connected to. When using a USB to serial
converter be aware of the fact that the converter itself will get a virtual COM-port !. Click Next.
Make sure the DLM-600 is set to the ‘flash’ mode and power up the DLM-600. The green processor led
(OP1) will light up shortly and then remain off. Click OK.
