83-EN

01GB07ICS-X8.fm

ALPINE ICS-X8 68-13530Z91-A (EN)

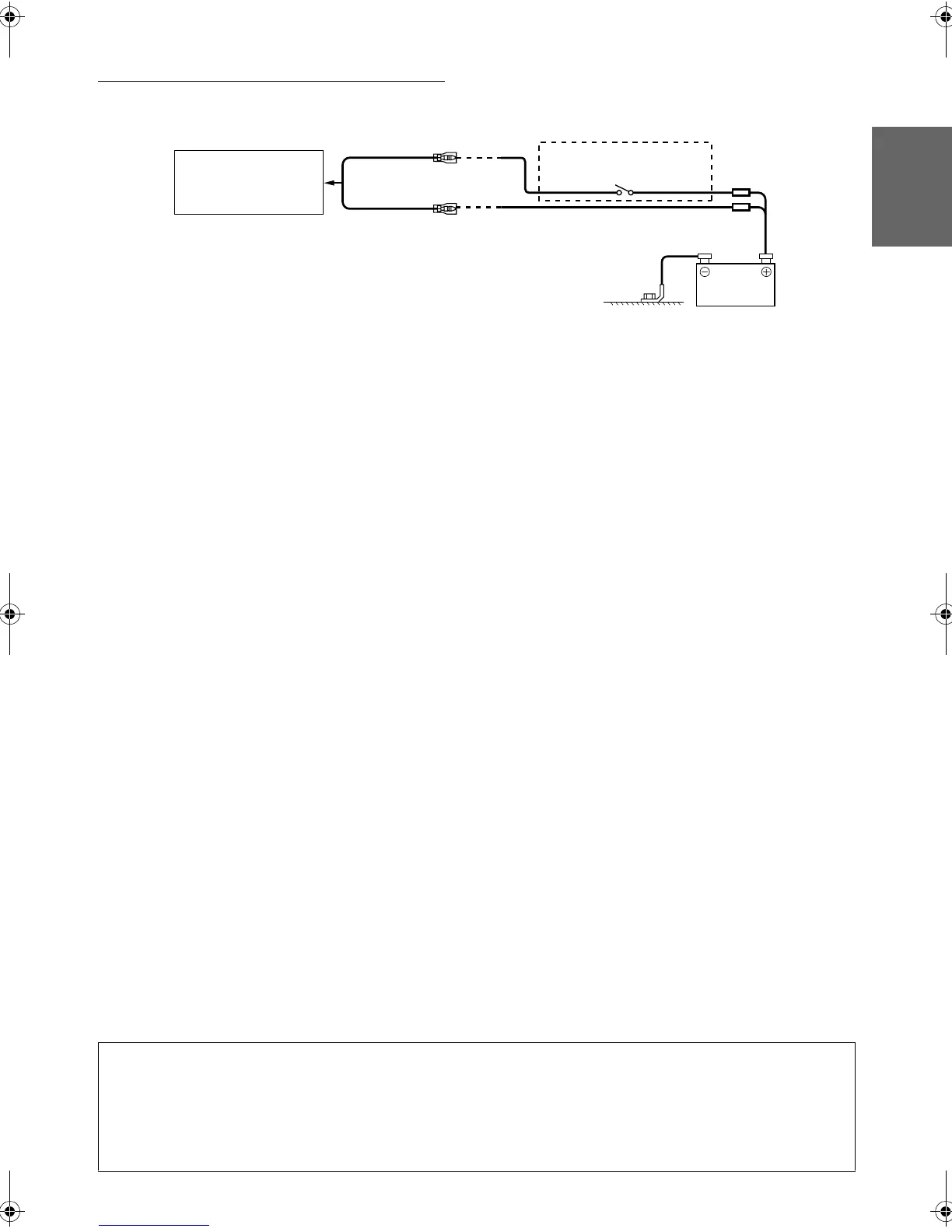

Connection Diagram of SPST Switch (sold separately)

(If the ACC power supply is not available)

• If your vehicle has no ACC power supply, add an SPST (Single-Pole, Single-Throw) switch (sold separately) and fuse (sold separately).

• The diagram and the fuse amperage shown above are in the case when ICS-X8 is used individually.

• If the switched power (ignition) lead of the ICS-X8 is connected directly to the positive (+) post of the vehicle’s battery, the ICS-X8 draws some

current (several hundred milliamperes) even when its switch is placed in the OFF position, and the battery may be discharged.

ICS-X8

(Red)

(Yellow)

SPST SW (Optional)

FUSE (5A)

(Optional)

FUSE (20A)

(Optional)

Battery

ACC

BATTERY

To prevent external noise from entering the audio system.

• Locate the unit and route the leads at least 10 cm away from the car harness.

• Keep the battery power leads as far away from other leads as possible.

• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.

• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various

noise suppressors, contact them for further information.

• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

01GB00ICS-X8.book Page 83 Wednesday, November 9, 2011 7:39 PM

Other manuals for Alpine ICS-X8

Questions and Answers:

Need help?

Do you have a question about the Alpine ICS-X8 and is the answer not in the manual?

General

MP3 playback	Yes
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WMA
Video formats supported	AVI, DIVX
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	AM, LW, MW
Preset stations quantity	30
Output power	200 W
RDS features	AF, EON, PTY, TA, TP
Product color	Black
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	2.0 channels
Equalizer bands quantity	9
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	100 dB
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FIN, FRE, ITA, NOR, POR, RUS, SWE
USB version	2.0
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP, SPP
USB ports quantity	2
Apple docking compatibility	Not supported
Cables included	USB
File format system	FAT 16/32
Power requirements	14.4V DC
Compatible products	iPod touch 4G/3G/2G/1G\\r iPod nano 6G/5G/4G/3G/2G/1G\\r iPod classic\\r iPod video\\r iPhone 4\\r iPhone 3GS\\r iPhone 3G\\r iPhone\\r Nokia 700, 701, 603, 808\\r Nokia N9, N8, E6, E7, X7, C6-01, C7
Operating temperature (T-T)	-20 - 60 °C
