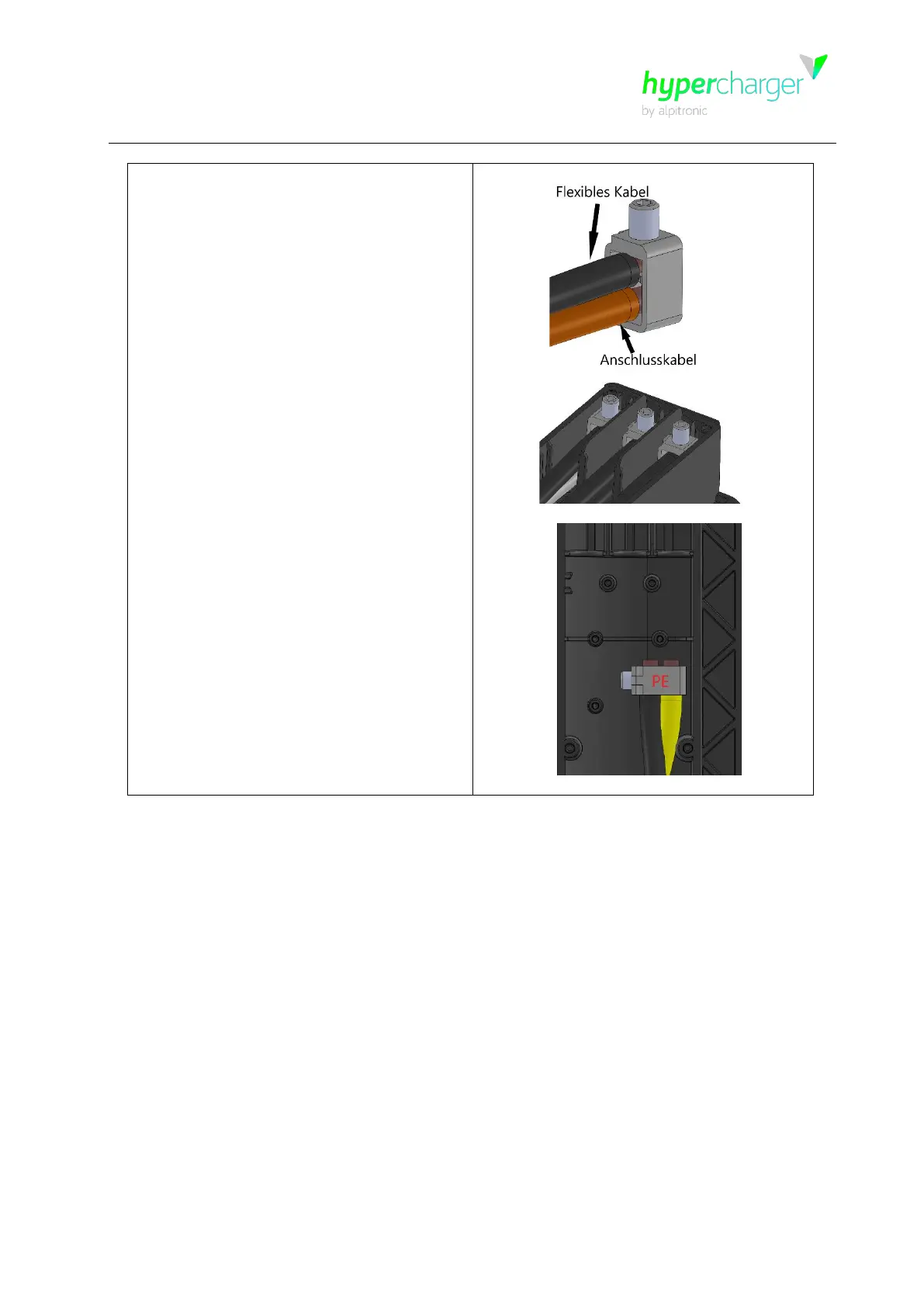

Contacting with clamps:
Clamps are used for contacting between
the individual strands of the connection
cable and the flexible cables; these
should contact the two cables with each
other as shown in the picture. The flexible
cable is always on top.
The clamp for the PE connection is
attached turned 90° The orientation of the
clamps for the phases is given by the ribs
in the connection area.
The flexible cable for the PE connection
can be recognized by the fact that a cable
lug is mounted at the other end.
