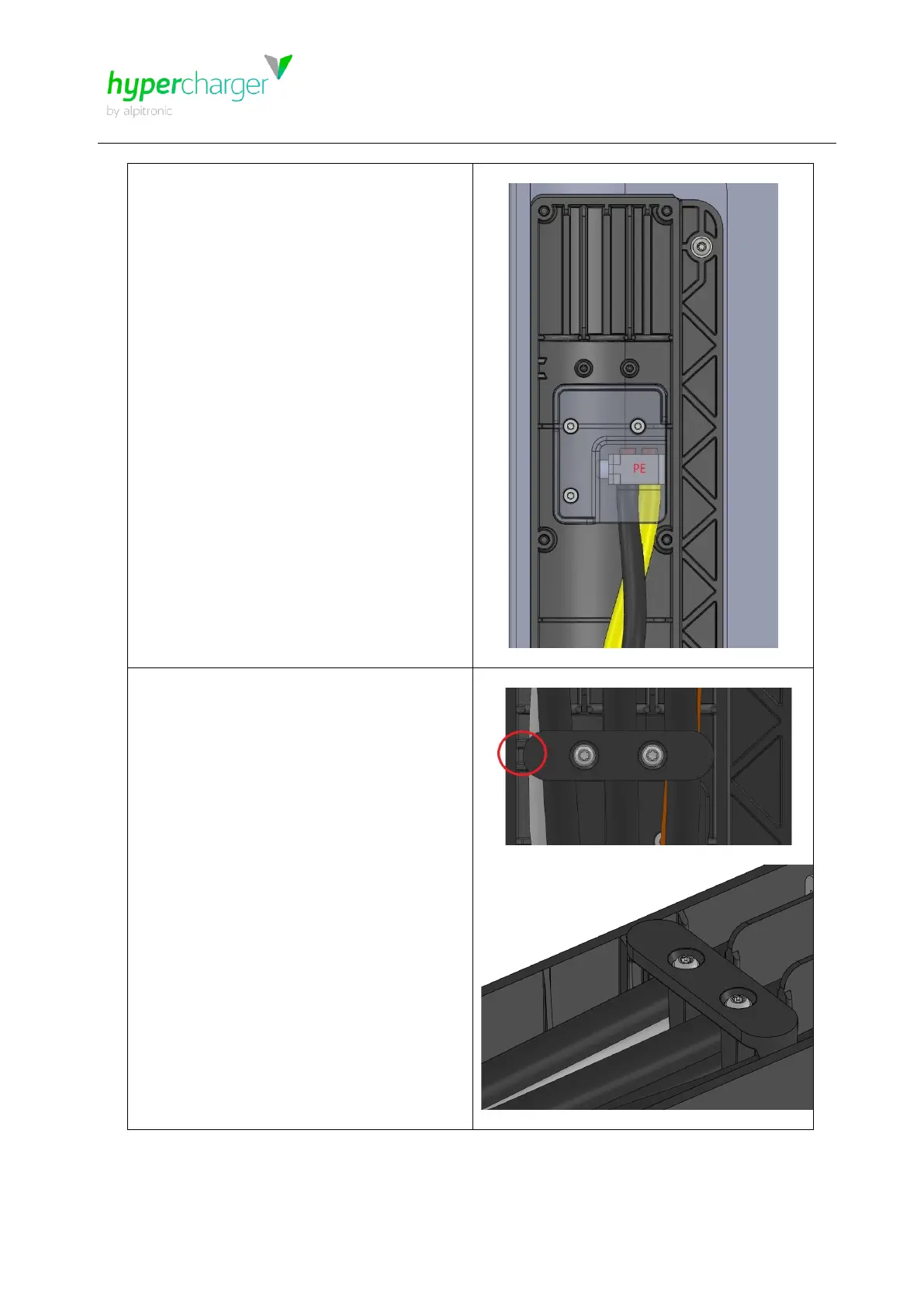

To protect the cables of the phases, an
intermediate plastic insert is mounted above
the PE connection
Required tool: TX10
The remaining cables are held in position
with the help of a cable fixation. To position
them more easily, you can use the two ribs
(shown in red) as a guide.
In this step, care must be taken that the
insulation of the cables is not pinched
between the plastic parts and thus
damaged.
Required tool: TX10
