14

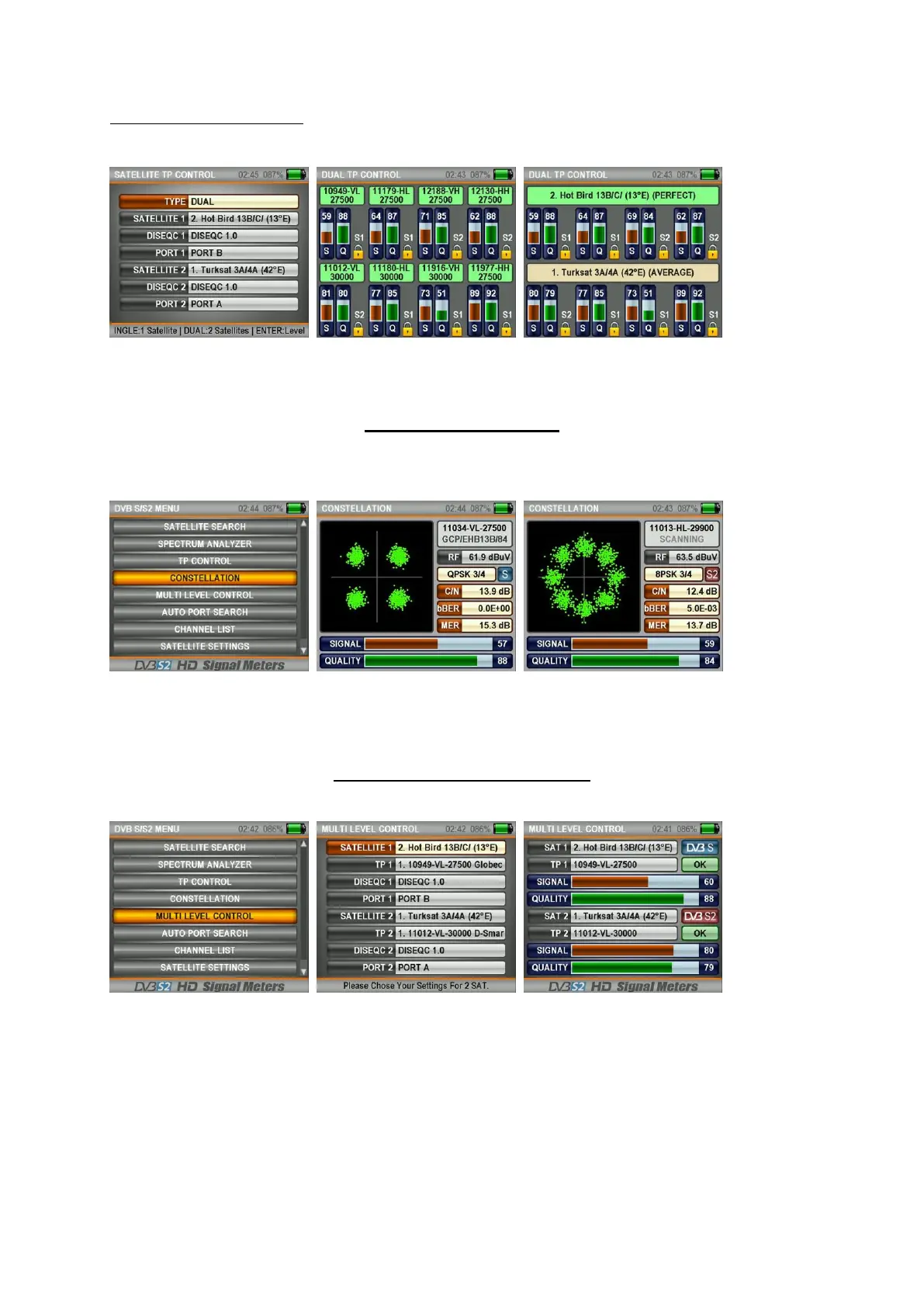

DOUBLE SATELLITE CONTROL:
Select DOUBLE as type and press on ENTER after having performed the necessary SATELLITE settings.
As to be seen on the screen; it possible to visualize the signal levels of 8 different frequencies from 2 satellite on
the same screen. You can test and control the correctness of the Multiswitch and System assembly by visualizing
all frequencies on the same screen.
CONTELLATION MENU:
Press on the ENTER button and select CONSTELLATION in the MAIN MENU. The constellation menu shows the
correctness of the digital I/Q symbol coordinates received at any time in a graphic. With this, you can also check
the correctness of the performed modulation (like QPSK, 8PSK).
Enter the constellation menu, select the satellite and the TP frequency, of which you will check the correctness
and press on the ENTER button after you have performed your settings. In the constellation diagram have the
QPSK signals 4, the 8PSK signals 8 coordinate points. The closer these coordinate points are to each other, the
more increases the correctness.
MULTILEVEL CONTROL MENU:
Press on the MENU button and select MULTILEVEL CONTROL in the MAIN MENU.
In the Multilevel Control Menu are the signal levels of each one frequency from 2 different satellites indicated on
the same screen. With this can Monoblock LNB installations and Multiswitch tests be performed very easily.
