18

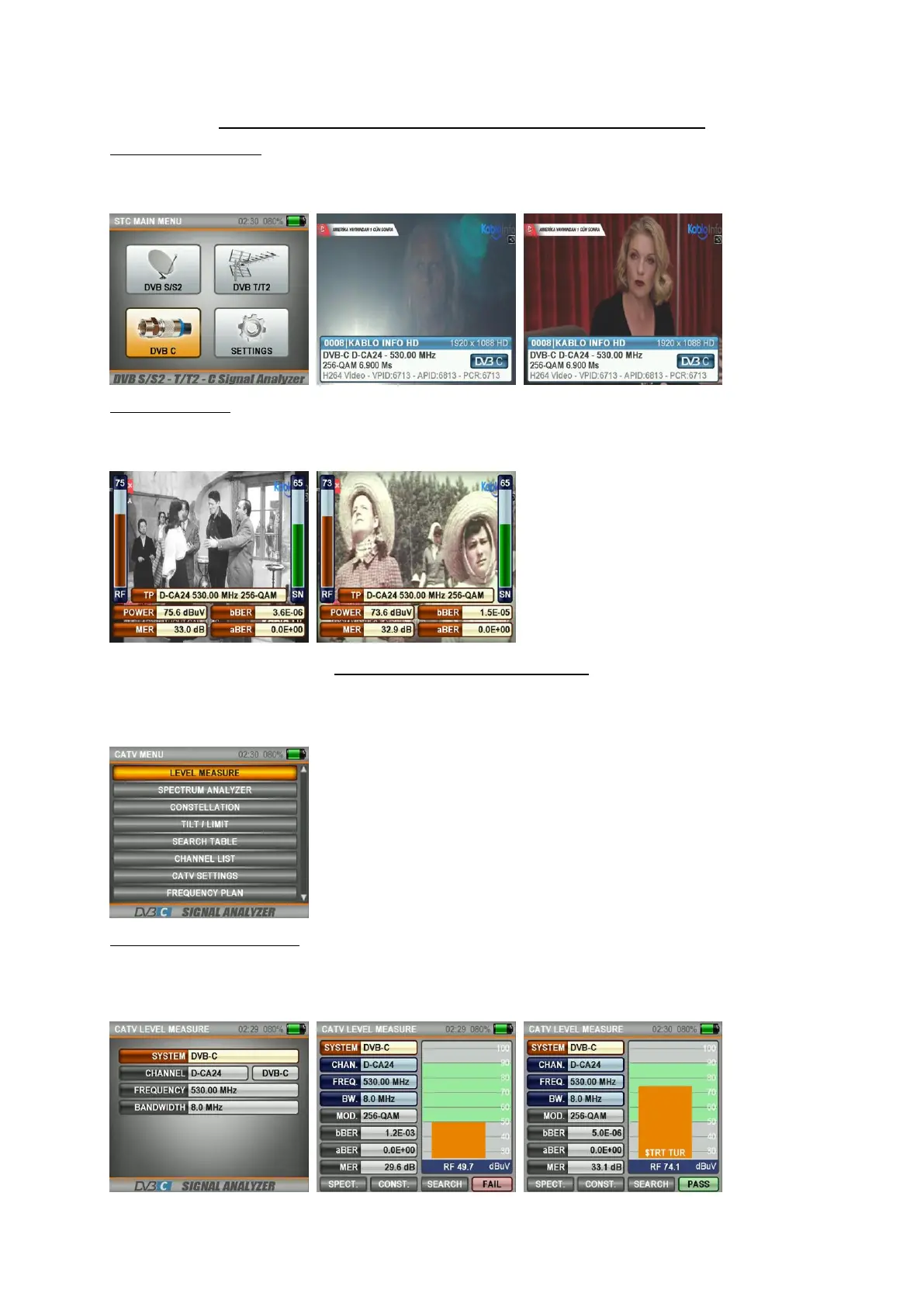

ANALOGUE and DIGITAL CABLE TV USER INSTRUCTIONS:
STARTING THE DEVICE:
Press the POWER ON/OFF button and turn your device on. Select the DVB-C box in the STC MAIN MENU; the
TV/Radio channel list will appear on the screen.
LEVEL INDICATOR:
While watching any channel, you can instantly the signal levels of the watched channel on the screen in real time
when you press on the LEVEL button.
LEVEL MEASUREMENT MENU:
Press on the MENU button and go to the CATV MENU screen and start performing the measurement by selecting
the LEVEL MEASUREMENT box. You can perform in the CATV LEVEL MEASUREMENT menu the measurement of
the ANALOGUE and DVB-C QAM digital frequencies in the frequency plan you have selected.
DVB-C / QAM MEASUREMENT:
Select DVB-C in the SYSTEM box in the CATV LEVEL MEASUREMENT menu. Use the RIGHT/LEFT buttons in order
to select the CHANNEL and FREQUENCY you want to measure, or go on FREQUENCY and enter the frequency you
wish and select a bandwidth of 6, 7, 8 MHz for the DVB-C measurement.
