24

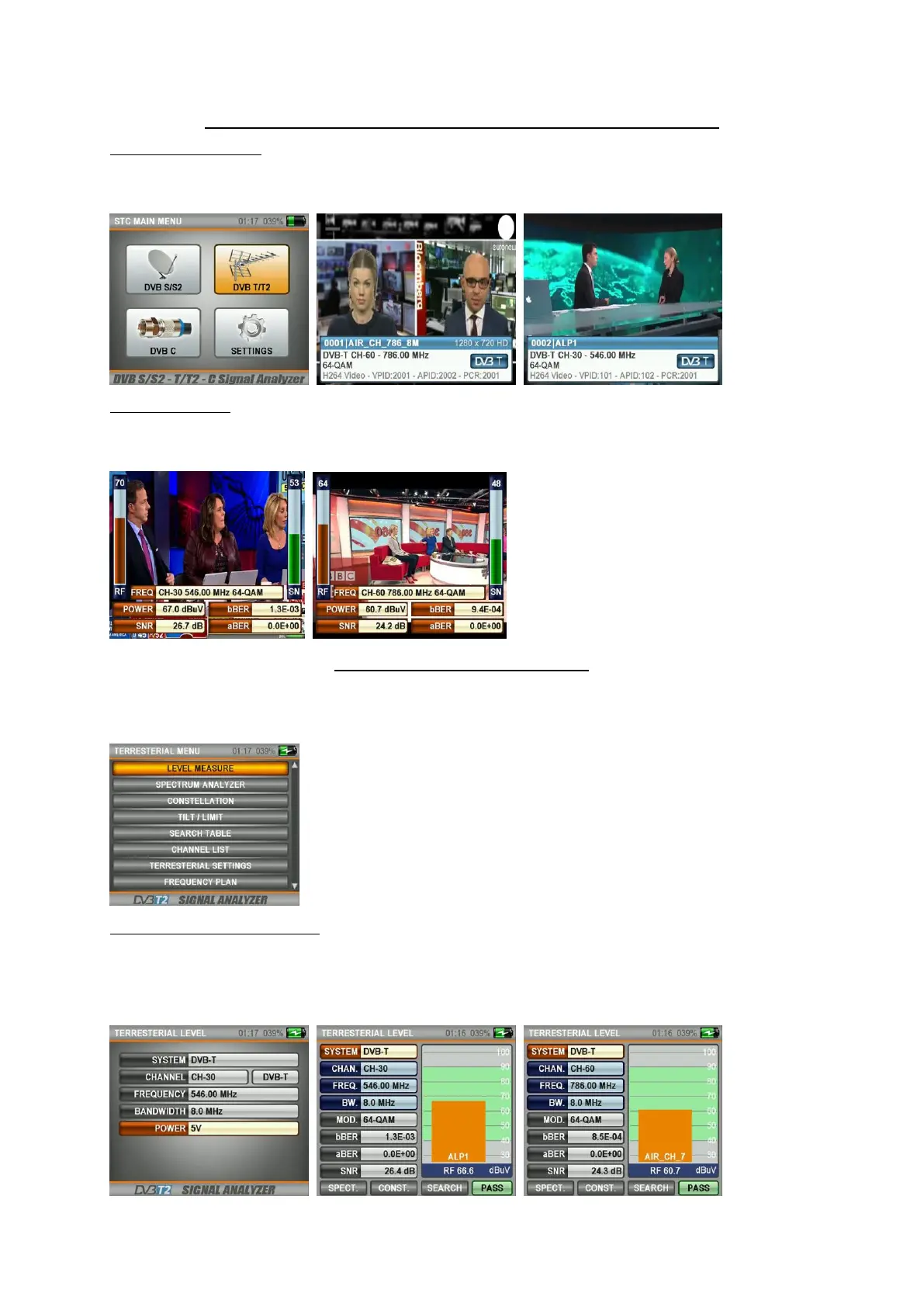

ANALOGUE & DIGITAL TERRESTERIAL USER INSTRUCTIONS:
STARTING THE DEVICE:
Press the POWER ON/OFF button and turn your device on. Select the DVB T/T2 box in the STC MAIN MENU; the
TV/Radio channel list will appear on the screen.
LEVEL INDICATOR:
While watching any channel, you can instantly the signal levels of the watched channel on the screen in real time
when you press on the LEVEL button.
LEVEL MEASUREMENT MENU:
Press on the MENU button and go to the TERRESTRIAL TV MENU screen and start performing the measurement
by selecting the LEVEL MEASUREMENT box. You can perform in the TERRESTRIAL LEVEL MEASUREMENT menu
the measurement of the ANALOGUE TV and DVB-T/T2 digital frequencies in the frequency plan you have selected.
DVB-T/T2 LEVEL MEASUREMENT:
Select DVB-T/T2 in the SYSTEM box in the DVB-T/T2 LEVEL MEASUREMENT menu. Use the RIGHT/LEFT buttons
in order to select the CHANNEL and FREQUENCY you want to measure, or go on FREQUENCY and enter the
frequency you wish and select a bandwidth of 1.7, 5, 6, 7, 8 MHz for the DVB-T/T2 measurement. There may be
amplifiers at terrestrial TV antennas, you might need to select a supply voltage of 5V, 12V, 20V in this case.
