SPECTRUM ANALYSIS MENU:

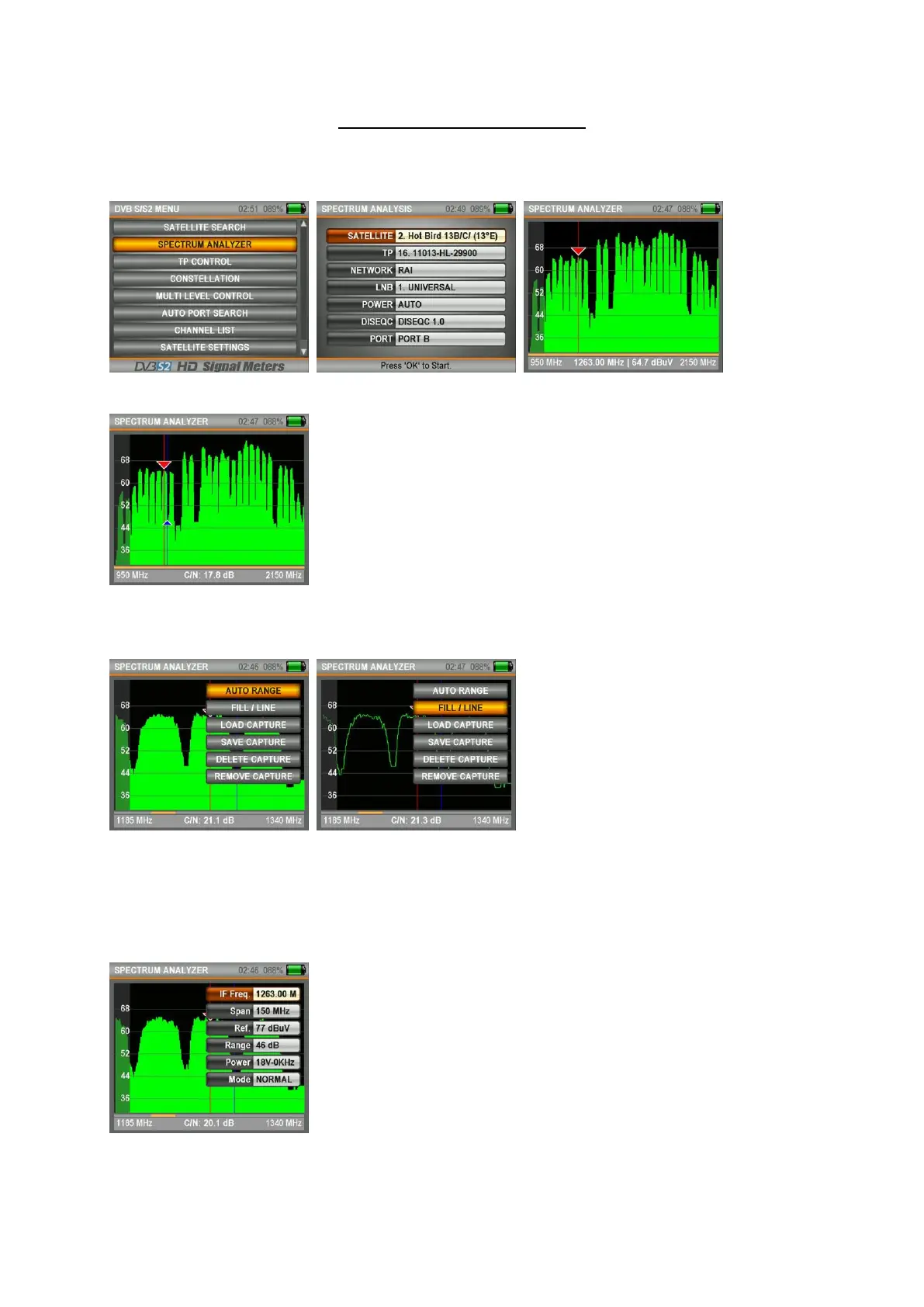

Press on the MENU button and select the SPECTRUM ANALYSIS box in the MAIN MENU. After having performed
your Satellite, LNB Voltage, Scan Width and Diseq-c setting, select the IF frequency you want and press on the
OK button.
The C/N value will appear, when you press once on the LEVEL button on this screen.
You can record the spectrum levels on the screen into the memory with the CAPTURE RECORD function when you
press on the MENU button on the SPECTRUM ANALYSIS screen and LOAD these from the memory during your
next assembly and perform again an installation with the same settings.
You can change the SPECTRUM SPEED via the SPEED box. But some signal levels might not be shown detailed in
the FAST mode.
You can fit the upper and lower signal levels into the automatic measurements levels screen in the AUTO RANGE
mode.
You change the IF Frequency, BANDWIDTH and LNB VOLTAGE values by pressing on the EDIT button.
