GreenDrill 3.2 on-board computer
38
GreenDrill BAH0054-4 02.13
6.11 On-board computer - installation and connections
6.11.1 On-board computer - installation in the tractor cab
Fasten the bracket in the tractor cab with two screws.
Bend the bracket so as to provide optimum reading of the display.
6.11.2 On-board computer - electrical connections
Store the spare cable in the cab.
Do not coil up the cable.
Never connect the 12 volt power supply to the cigarette lighter socket.
6.11.2.1 Power supply from the 3-pin tractor standard socket

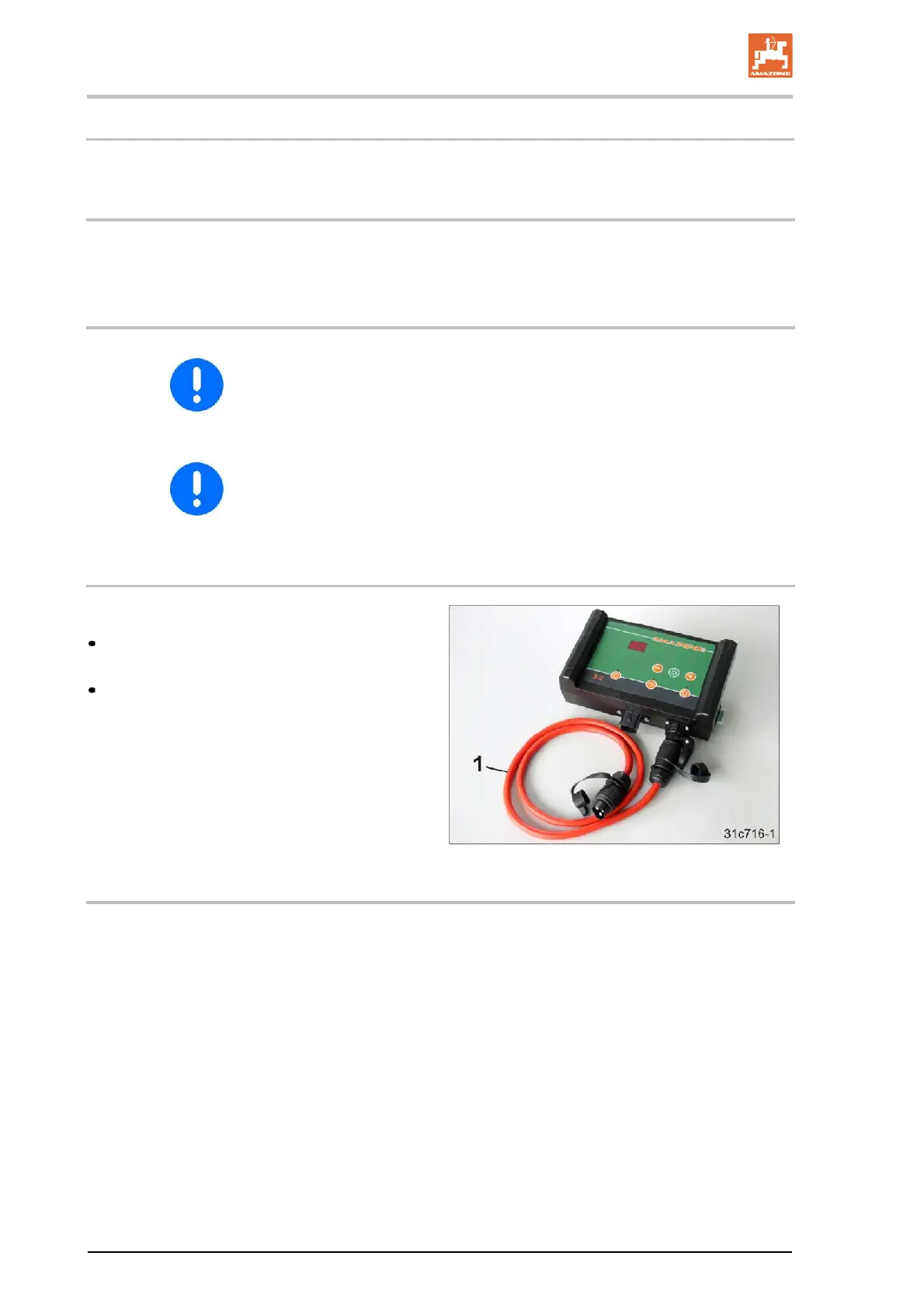

Connect the power cable (1)
to the 3-pin standard socket in the tractor
cab
to the on-board computer.
6.11.2.2 Cable set for the battery connection
The cable set (optional) is used for power supply if the tractor has no 3-pin standard socket. The cable
ends are screwed directly onto the battery poles.
