11
2-4 Install Memory
This motherboard provides two 240-pin DDR II DUAL INLINE MEMORY MODULES
(DIMM) socket for DDR II memory SDRAM expandable to maximum memory volume of 4
GB and two 240-pin DDR III SDRAM DUAL INLINE MEMORY MODULES (DIMM)
socket for DDR III memory SDRAM expandable to maximum memory volume of 4 GB.
Valid Memory Configurations for DDR II
Bank 240-Pin DIMM PCS Maximum Capacity
DDRII1 DDRII 667/ DDRII 800/DDRII 1066 X1 2GB
DDRII2 DDRII 667/ DDRII 800/DDRII 1066 X1 2GB
Total System Memory (Max 2GB) 2 4GB
Valid Memory Configuration for DDR III
Bank 240-Pin DIMM PCS Maximum Capacity
DDRIII1 DDRIII1333/DDRIII 1066/DDRIII800 X1 2GB
DDRIII 2 DDRIII1333/DDRIII 1066/DDRIII800 X1 2GB
Total System Memory (Max 2 GB) 2 4GB
NOTICE!
1. Dual channel function only supports when 2 DIMM Modules plug in either both DDR III 1 &
DDR III 2 or DDRII 1 &DDRII 2.
2. Memory modules in DDR III 1 & DDR III 2 or DDRII 1 &DDRII 2 must be of the same type,
same size, and same frequency for dual channel function.
3. DDRII 1and DDR II 2 is for installing DDR II memory modules only while DDRIII1 and
DDRIII 2 is for installing DDRIII memory modules only.
4. User can only install DDRII memory module(s) in DDR II memory module slot(s) when an
AM2 or AM2+ CPU is installed;
5. User can choose either installing DDRII memory module(s) in DDR II memory module slot(s)
or DDRIII memory module(s) in DDR III memory module slot(s), but NEVER both DDRII
and DDRIII memory module(s) at the same time under any circumstances.

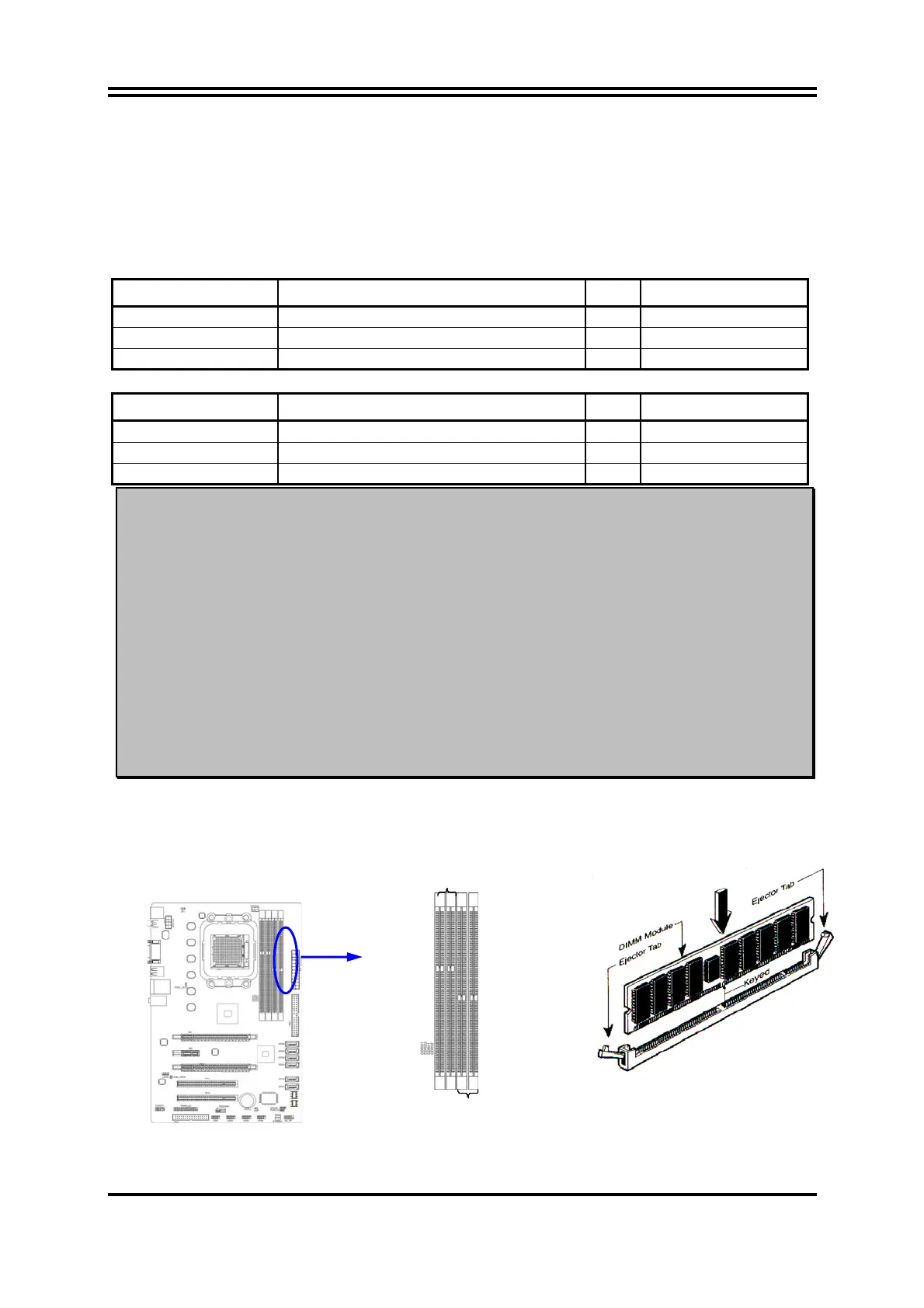

Install DDR SDRAM modules to your motherboard is not difficult, you can refer to figure
below to see how to install a 240-Pin DDR II 667/DDR II 800/DDR II 1066 or a DDR III
1066 /DDR III 1333 SDRAM module.
DDRII1 & DDRII2: Dual Channel2
DDRIII1 & DDRIII2: Dual Channel
