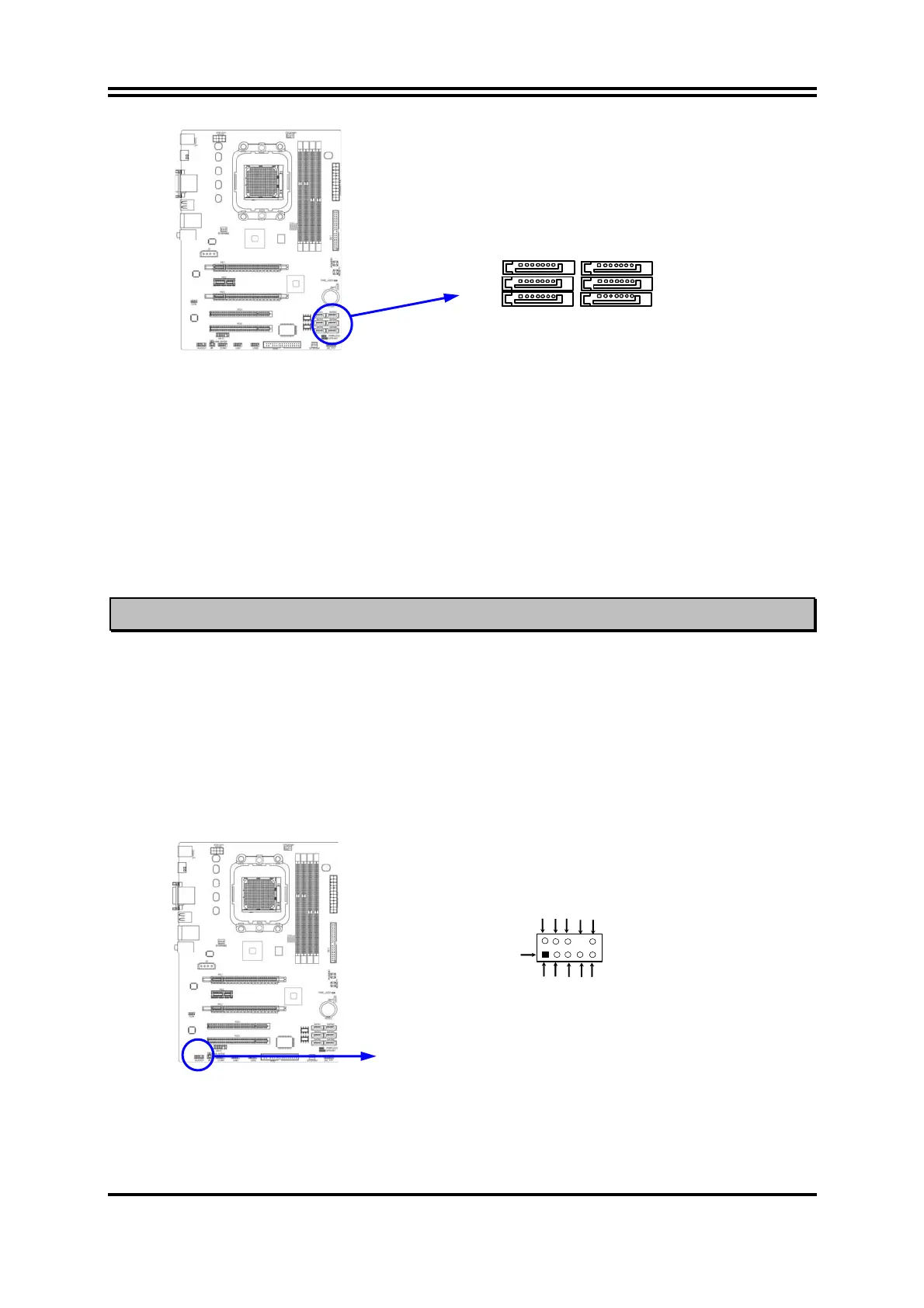

Serial-ATA Port Connectors
SATA4
SATA6
SATA2
SATA1
SATA3
SATA5
(11) D-Sub 15-pin connector:VGA
VGA connector is the 15-pin D-subminiature female connector; it is for the display
devices, such as the CRT monitor, LCD monitor and so on.
(12) Digital Visual Interface: DVI
This interface standard designed to maximize the visual quality of digital display
devices such as flat panel LCD computer displays and digital projectors.
(13) HDMI:
High-Definition Multimedia Interface
This point-to-point interface is for audio and video signals designed as a single-cable
solution for home theater and consumer electronics equipment.
NOTE! DVI and HDMI Connector can not be used at the same time.
(14)Coaxial SPDIF_OUT connector: SPDIF_OUT1
The SPDIF output is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby digital decoder. Use this feature only when
your stereo system has digital input function.
2-6-2 Headers
(1) Line-Out/MIC Header for Front Panel (9-pin): AUDIO1
These headers connect to Front Panel Line-out, MIC connector with cable.
Line-Out, MIC Headers
AUDIO
Pin 1
Lineout2-L Lineout2-R
Sense-FB
Audio-GND
LINE2-JD
Audio-JD
2
9
10
KEY
MIC2-L
MIC2-JD
MIC2-R
