AMD 770 User Manual

15

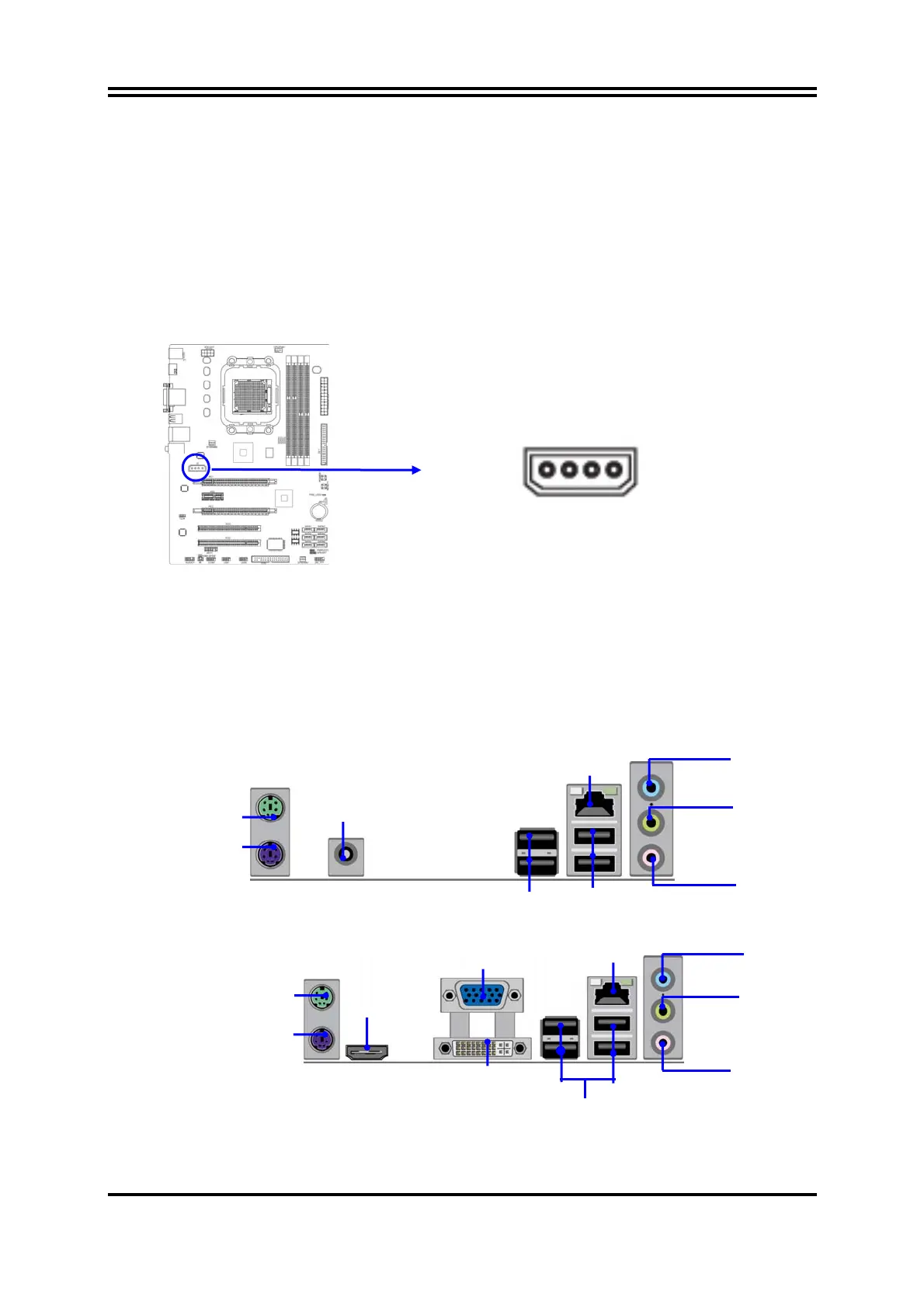

(3) PS/2 Mouse & PS/2 Keyboard Connector: KB
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: USB from CN1, UL1
The connectors are 4-pin connector that connects USB devices to the system board.
(5) LAN Port connector: RJ-45 LAN from UL1
This connector is standard RJ45 connector for Network which supports
10M/100Mb/1000Mbps data transfer rate
(6) Large 4-Pin Power
Connector
: J2 Power Connector
The connectors are 4-pin connector that supports extra 12V / 5V power to your system .
(7) Audio Line-In, Lin-Out, MIC Connector : CN2 for Audio
These Connectors are 3 Phone-Jack for LINE-OUT, LINE-IN, MIC audio connections.
Line-in :
Audio input to sound chip
Line-out :
Audio output to speaker
MIC :
Microphone Connector
XBLUE-77A3
XBLUE-78GA3/XBLUE-78VA3
USB
RJ45 LAN
PS/2 Mouse
PS/2 Keyboard
Line-IN
Line-OUT
MIC-IN
USB
SPDIF OUT
USB Connectors
RJ-45 LAN
PS/2 Mouse
PS/2 Keyboard
Line-IN
Line-OUT
MIC-IN
VGA
Connector
HDMI
Connector
DVI
Connector
