Before Installing the Intellex
Installation and Configuration Guide 7

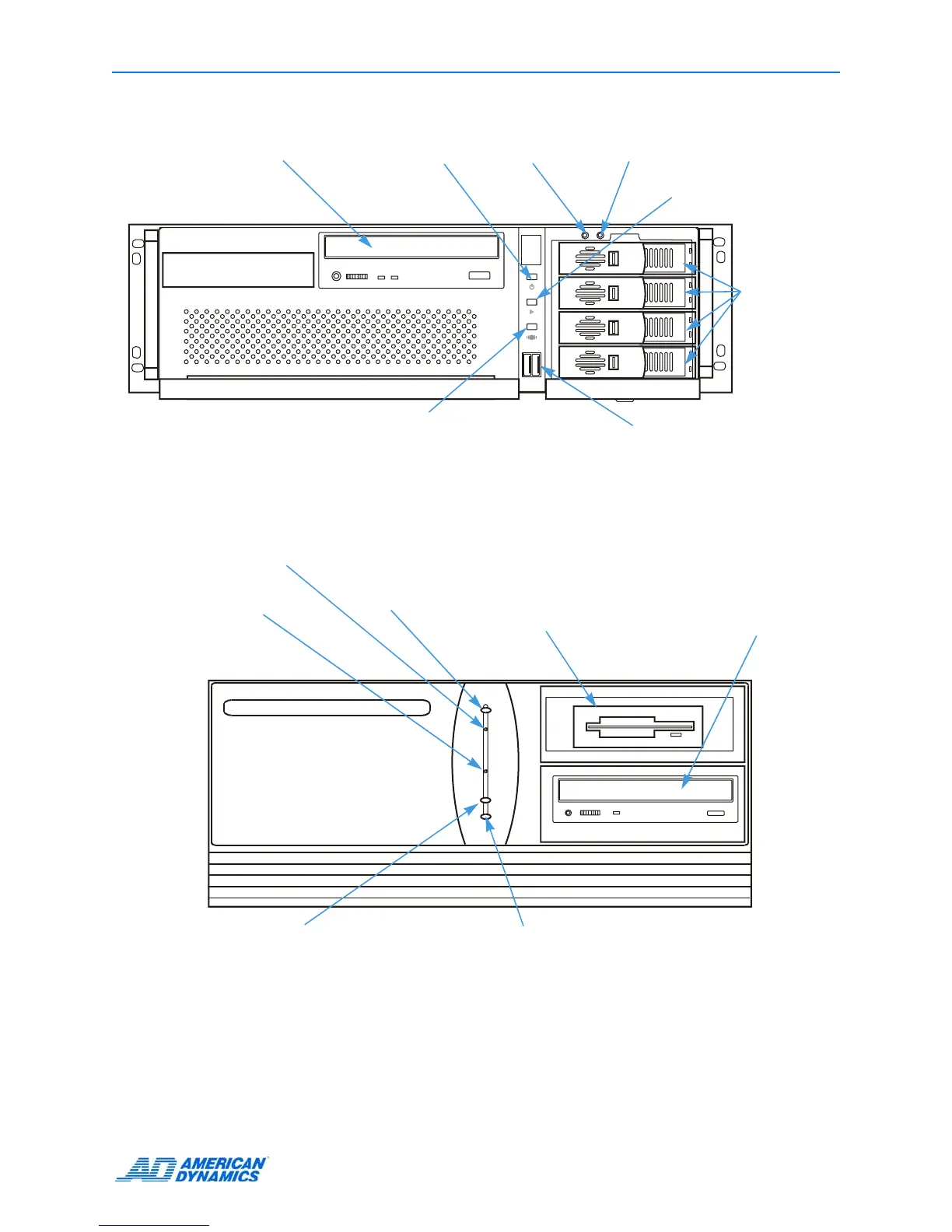

Front Panel
4_0FP_1
POWER
REC
ALARM
DVD-RW Drive
USB Connectors
Hard drives
Power indicator
Alarms indicator
Illuminates when alarm events
occur but have not been reviewed.
Blinks when the notification screen
appears.
REC (recording indicator)
illuminates when the unit
records images to the
image database.
Ultra
3
_
2FP
_
1
Power indicator
Power: Insert the reset tool into
the pinhole to power on or off.
Reset: If the unit does not power
on, insert the reset tool into the
pinhole to reset. The unit powers
on and performs standard
diagnostics.
Alarms indicator
Illuminates when alarm events
occur but have not been reviewed.
Blinks when the notification screen
appears.
REC (recording indicator)
illuminates when the unit records
images to the image database.
3½-inch diskette
drive
CD-RW/DVD Drive
DVMS/LT
Power switch
Reset switch
