Configuring the Intellex
38 Intellex® Ultra

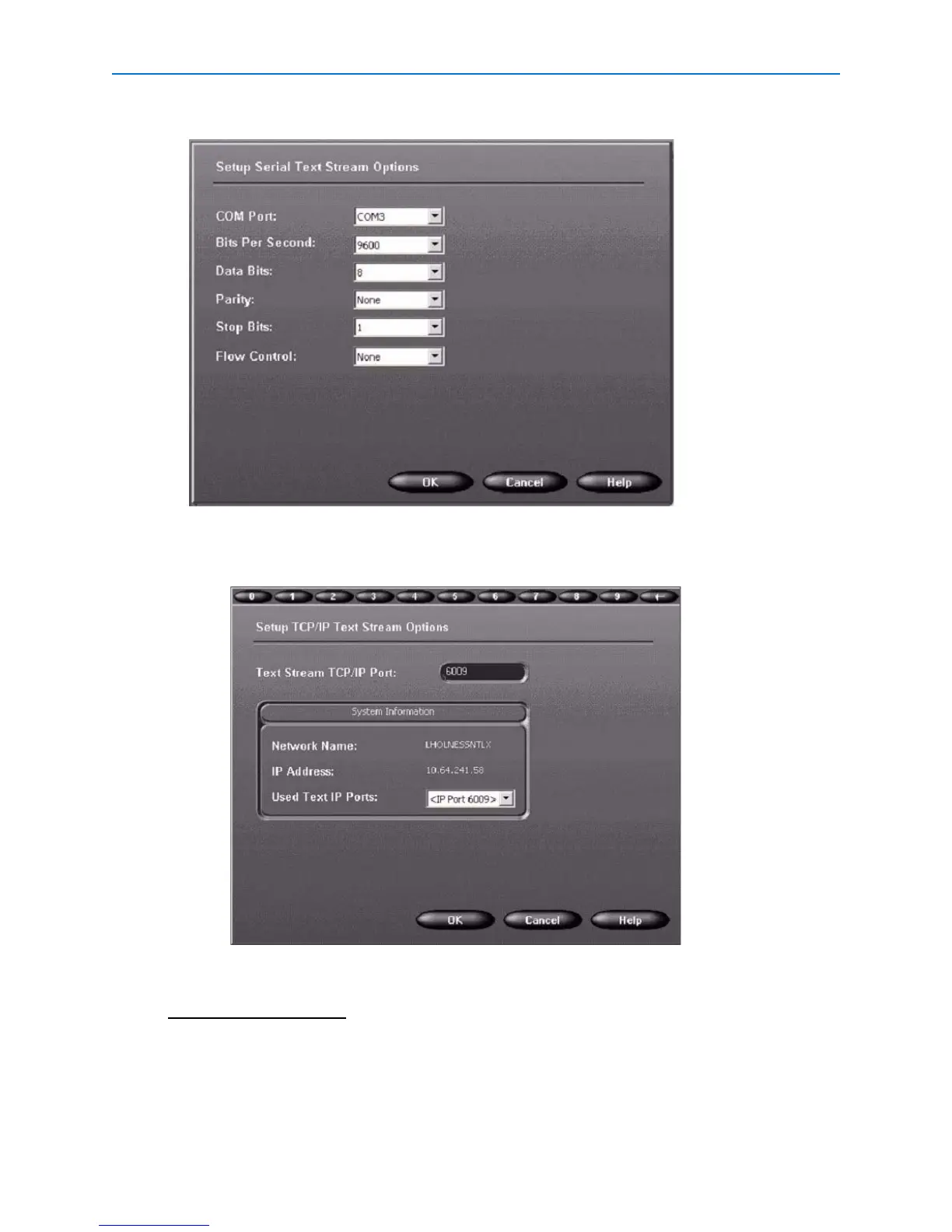

If you select COM Port, the following screen appears:
6 Select a COM Port, Bits Per Second, Data Bits, Parity, Stop Bits, and Flow Control from the
lists. For information about text, see the User’s Guide.
If you select IP Port, the following screen appears:
7 Enter an unused IP port number in the Text Stream TCP/IP Port edit box.
Note
The dialog automatically enters a suggested value. The Used Text IP Ports dropdown lists ports
used by other text streams, which are unavailable.
8 From the Camera Associations tab, select the appropriate camera(s) associated with the text
stream.
