3-2 | 3050-SLR Moisture Analyzer
Sample Gases
The 3050 is designed to operate on a clean gas stream; speciically, the sample gas stream
must be free of particulates and aerosols. If the 3050 analyzer is being used on a clean gas
stream (i.e. - free from particulates and aerosols), AMETEK Process Instruments recom-
mends that the analyzer be installed in accordance with the information provided in the
following Sections of this manual.
Sample pressure and temperature requirements
Pressure reduction is user supplied to ensure sample pressure to the analyzer remains with-
in the range of 20 - 50 psig. The pressure reducer/regulator with gauge should be installed
near the sample tap in-between the tap and analyzer. Refer to igure 3.4. For optimum
performance, sample line should be heat traced to maintain a constant sample temperature.
Optimum sample gas input is 60°C.

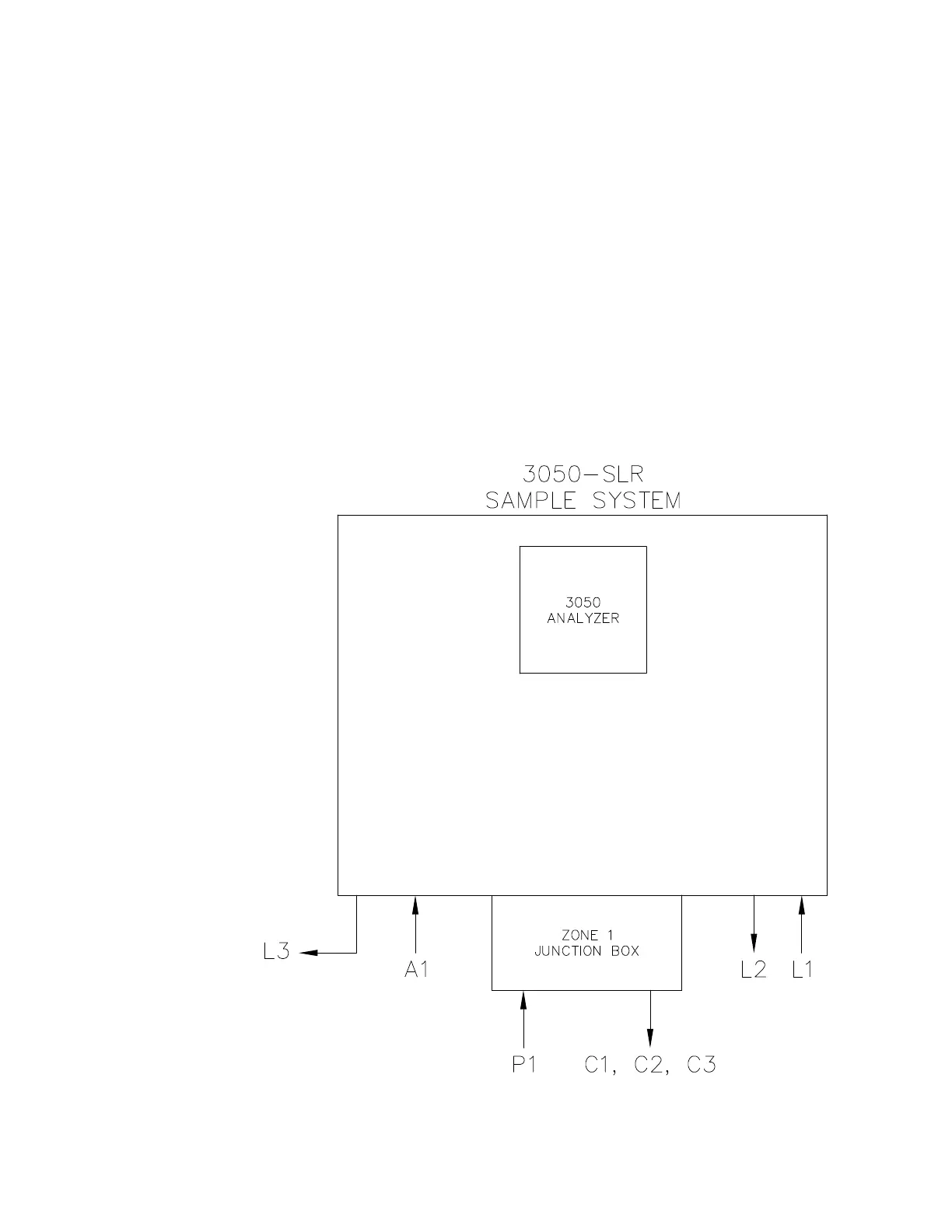

Figure 3-1a:
SLR Block Diagram
