4-8 | 3050-SLR Moisture Analyzer
Sensor Saver check box
Check this box to enable Sensor Saver.
Checked Analyzer operates with a slow cycle time, maximizing cell
life at the expense of system response time.

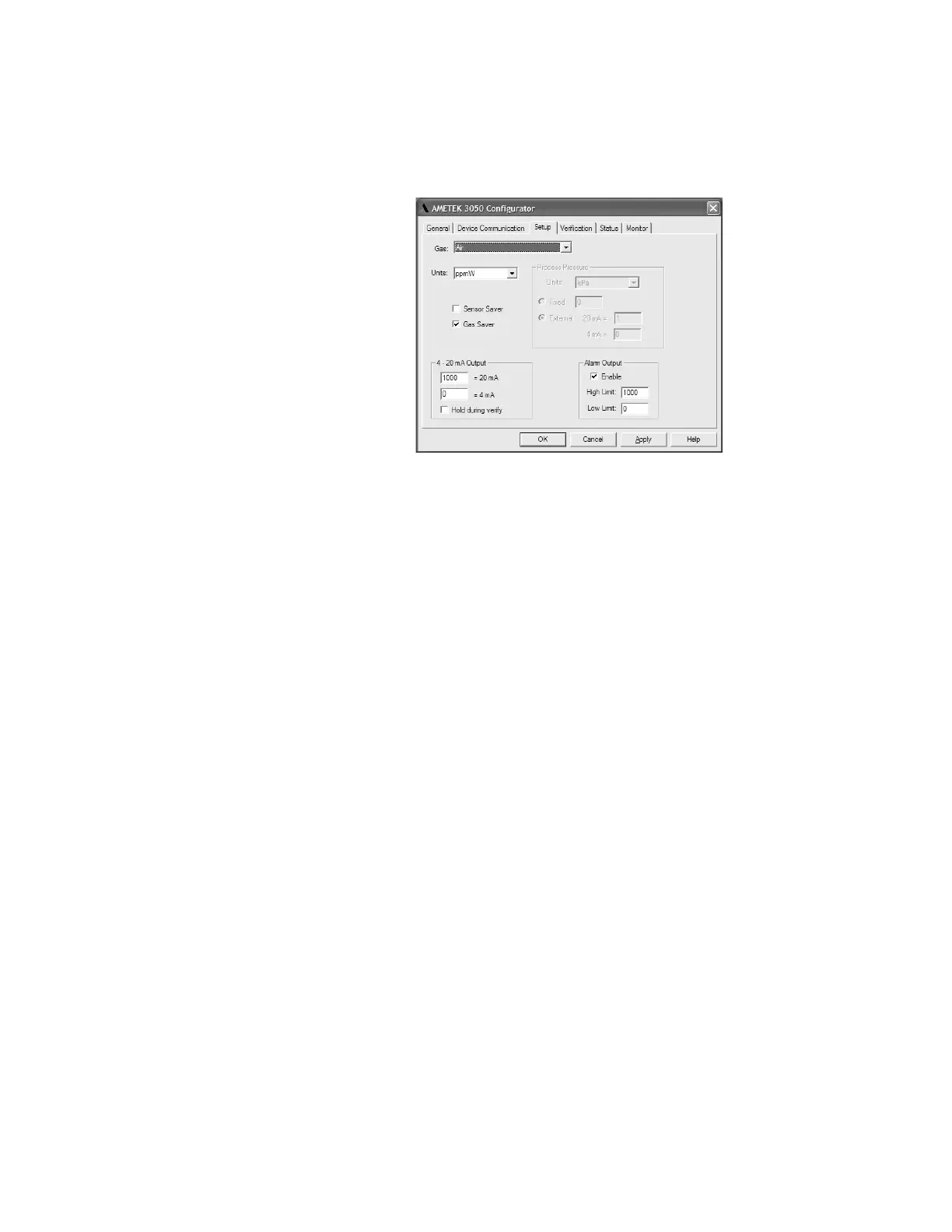

Figure 4-5.
Setup tab.
Not Checked Analyzer operates with a rapid cycle time, minimizing
system response time.
Gas Saver check box
Check this box to enable Gas Saver.
Checked Analyzer runs on a sample low rate of 150 SCCM.
Not Checked Analyzer uses an internal bypass, which increases the
response speed of the system. Provides sample low rate
> 1 SLPM.
4-20 mA Output
Set up your analog output range.
20 mA Enter your high analog output limit.
4 mA Enter your low analog output limit.
Hold during Zero Check this box to hold analyzer output during veriication
and Zero.
Alarm Output
Set up the limits for the concentration alarm.
Enable Check this box to enable the concentration alarm.
High Limit Enter the high limit for the concentration alarm.
Low Limit Enter the low limit for the concentration alarm.
