AMETEK Brookeld Page 62 Manual No. M08-372-F1116

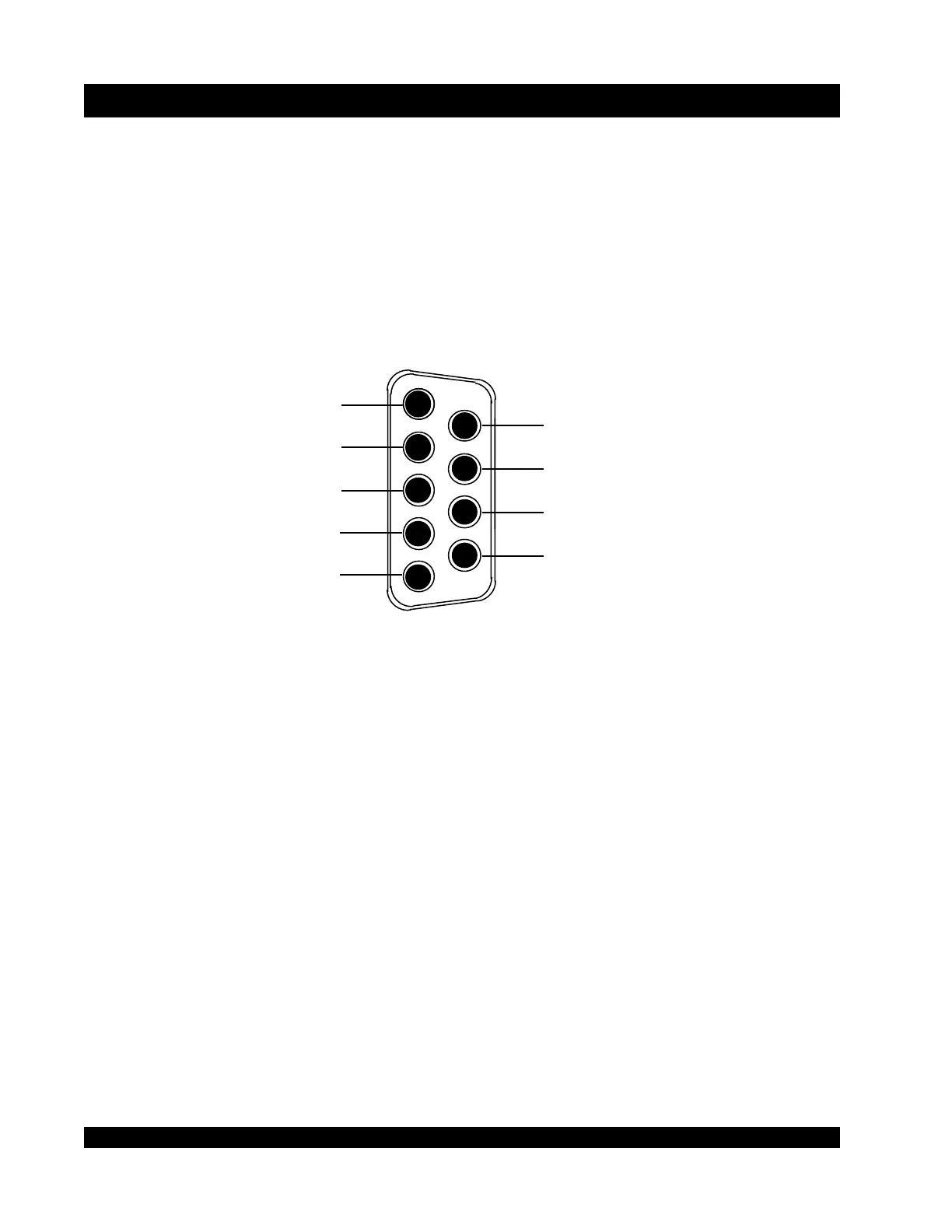

Appendix D - CT3 Connector Wiring
Serial (RS-232) Communications Parameters
Baud Rate 115200
Data Bits 8
Stop Bits 1
Parity None
Handshake None
2
3
4
5
6
7
8
9
1
No Connection
Transmit Data (TxD)
Receive
Cable Sensing
Cable Sensing
Serial Ground
No Connection
No Connection
No Connection
Data (RxD)
Pins 4 and 5 are used to sense presence of serial cable.
USB (DVP-202)Type B Port Communications Parameters
PIN1:POWER PIN3:+Data
PIN2:-Data PIN4:CableGnd
