24 17-08-2004 123312 03
4.4 Using the SWITCH TEST
SWITCH TEST automatically locates the switch temperature of a
thermostat.
You must enter a temperature range T
min
- T
max
, within which the switch
temperature is expected to be found. You must also specify the slope
rate to be used during the test in SETUP (the smaller the value, the
more accurate the results of the test and the longer the test will take).

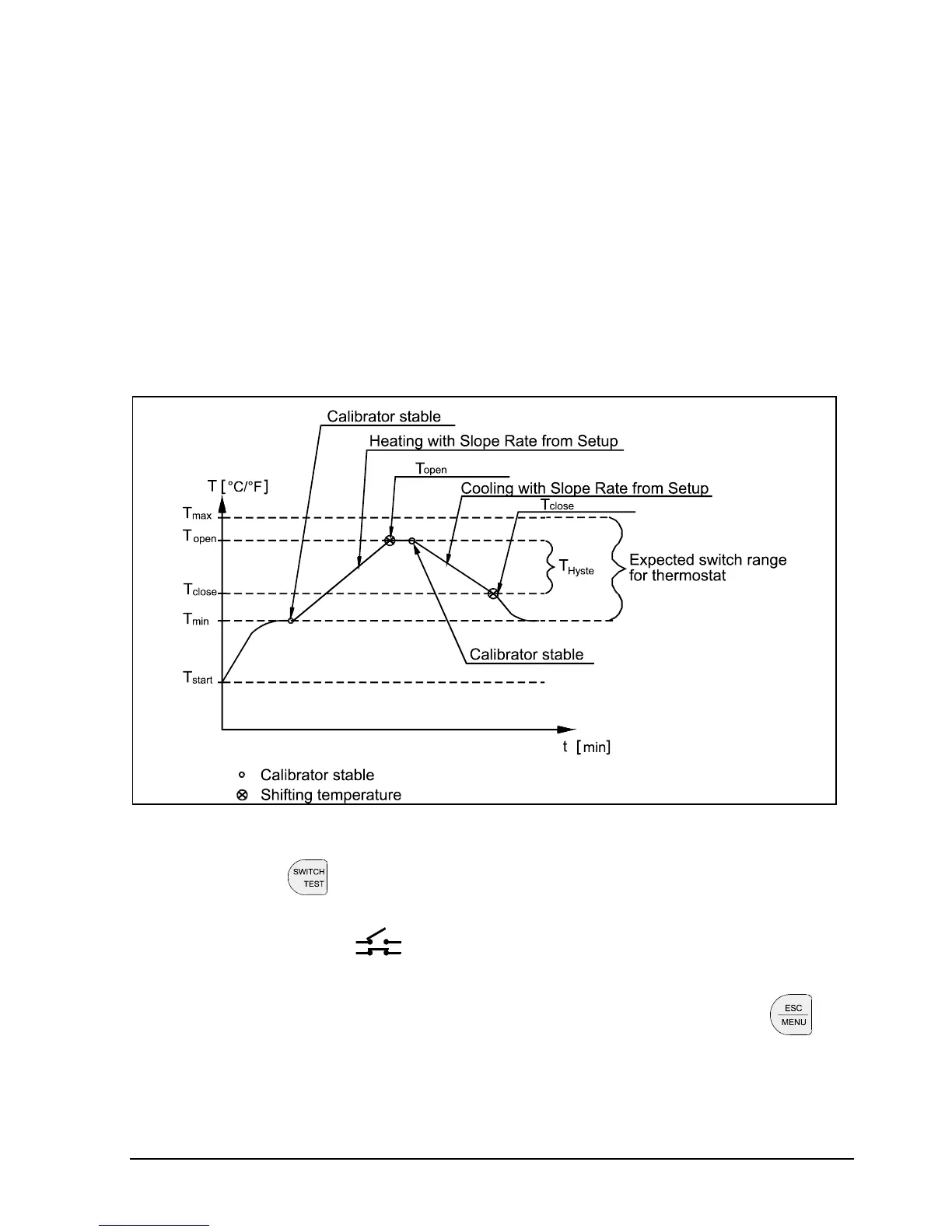

The function can be illustrated using the following example:
Fig. 7
Press
.
The symbols
for SWITCH TEST will flash to indicate that
the function is active.
The function can be cancelled at any time by pressing
.
