Machine description
Tandem machine with an articulated frame and two smooth
drums. Both drums are hydrostatic-driven and vibrating. The
rear drum vibration is switchable. The concept of the frame al-
lows compacting close to the walls and elevated kerbs on both
sides of the machine. It is convenient for works within con-
strained areas due to its small dimensions and short turning ra-
dius. The operator’s post provides perfect control of both edges
of the drums.
Combined machines have only afront smooth vibrating drum.
The rear axle consists of tyres with smooth shoes (compactor).
Specication of the expected use of the machine
The machine is designed for small compaction works in road
construction (building local roads, cycle paths, pavements,
parking areas and garage driveways) and in building construc-
tion (small industrial areas).
The machine is suitable for compacting asphalt mixes up to the
(compacted) layer thickness of 120mm (4.7"), hydraulically con-
solidated mixtures up to the layer thickness of 150mm (5.9"),
mixed soils up to the layer thickness of 200mm (7.9") or sandy
and gritty materials up to the layer thickness of 300mm (11.8").
The machine is not suitable for compacting rock ll, loam and
clay materials.
The machines are designed for operation in arid, temperate and
cold climates according to EN 60721-2-1:2014 with a limited
temperature range from -15 °C (5 °F) to +45 °C (113 °F) and a
maximum absolute humidity of 25 g.m
-3
. Storage temperature
from -25°C (-12°F) to + 45°C (113°F).
The standard version of the machine is not designed for opera-
tion on roads. For more information, please contact your dealer.
The machine that complies with the requirements as to health
protection and safety is provided with anameplate with CE cer-
tication.
1. Name – always mentioned only in the English version
2. Type
3. Product identication number
4. Rated power
5. Operating weight
6. Maximum weight
7. Shipping weight
8. Version
9. Engine emissions
10. Front axle load
11. Rear axle load
12. Year of manufacture
13. Model year

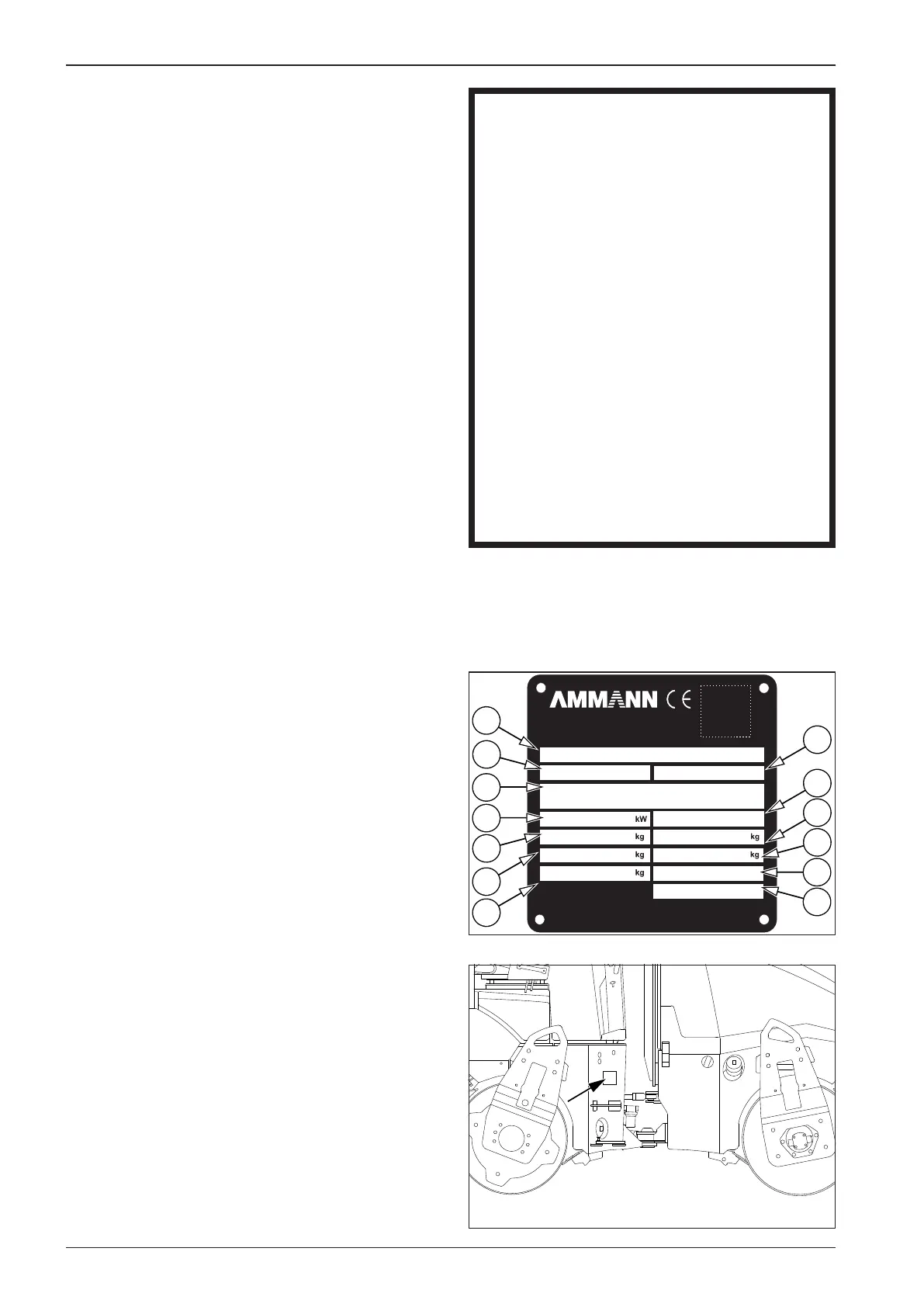

Nameplate position
Nameplate
Please ll in the following data:
(see nameplate and Kubota engine nameplate)
Machine type
................................................................................................................
Product Identication Number
................................................................................................................
Year of manufacture
................................................................................................................
Engine type
................................................................................................................
Serial number of the engine
................................................................................................................
The data mentioned in the table refer always when you contact
the dealer or manufacturer.
1.1 Basic data
