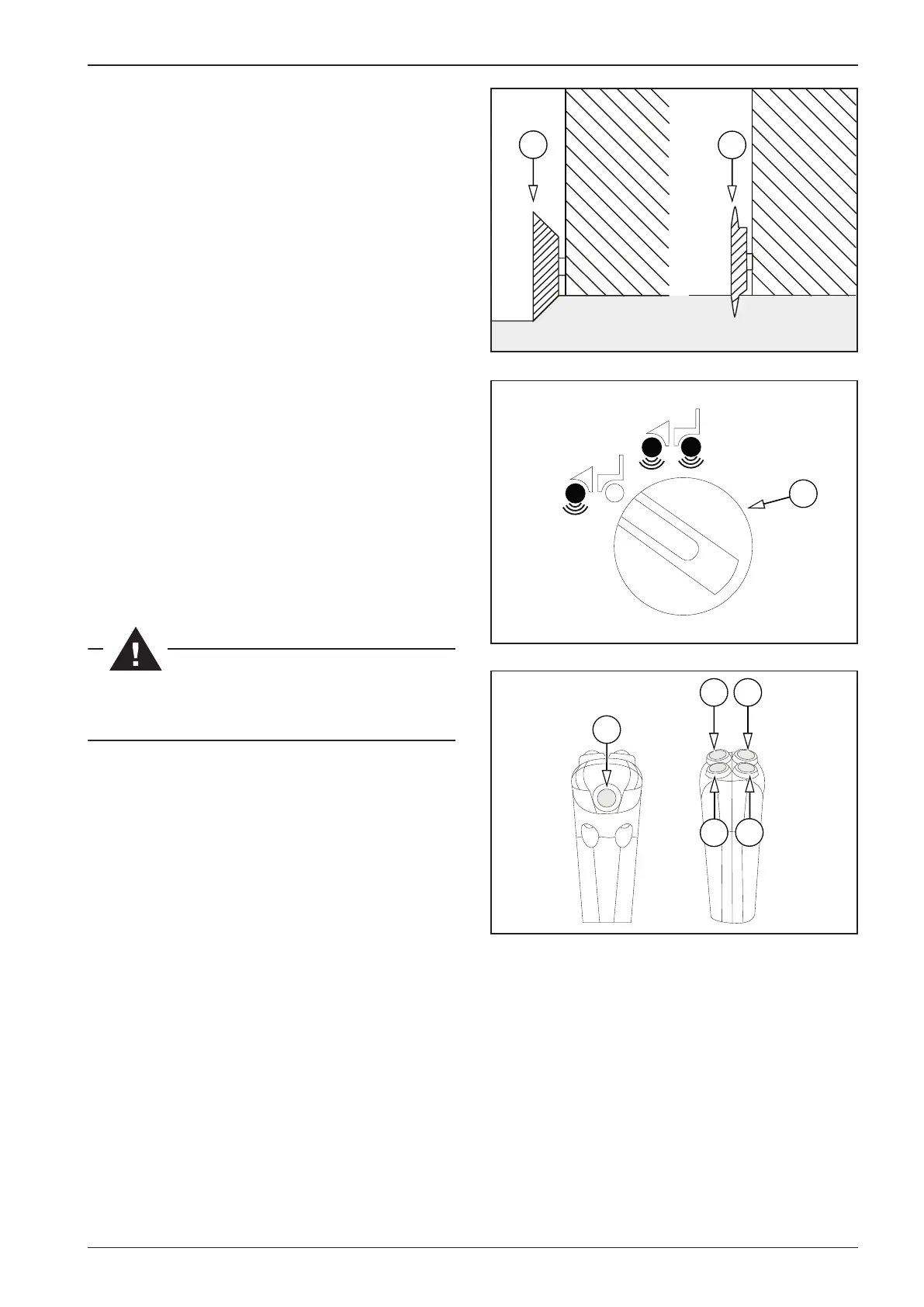

2.7.12 Edge cutter (optional equipment)
The edge cutter set contains a cutting and compaction disc.
The cutting disc (1) is used to cut the road at the desired location
and align the road edges.
The compaction disc (2) is used to nish the compaction of road
edges.
Note
If one of the discs is not in use, attach it to the holder provided.
Edge cutter pre-adjustment
Before working with the edge cutter, set the vibrating drum se-
lector (9) to the left (front drum).
Note
The edge cutter only works awlessly with a pre-adjusted edge
cutter.
Control procedure
Set the desired height of the edge cutter using its up (15) and
down (16) button.
Make sure nobody is endangered when the edge cutter is
started.
Turn on drum sprinkling using the sprinkling button (13).
Turn on edge cutter sprinkling using the edge cutter sprinkling
button (14).
Note
The water inlet of edge cutter sprinkling only works when conti-
nuous drum sprinkling is on.
Turn on vibration with the vibration switch (12).
Note
After turning on vibration, the edge cutter automatically rises
and is inoperative.
