OPERATING MANUAL

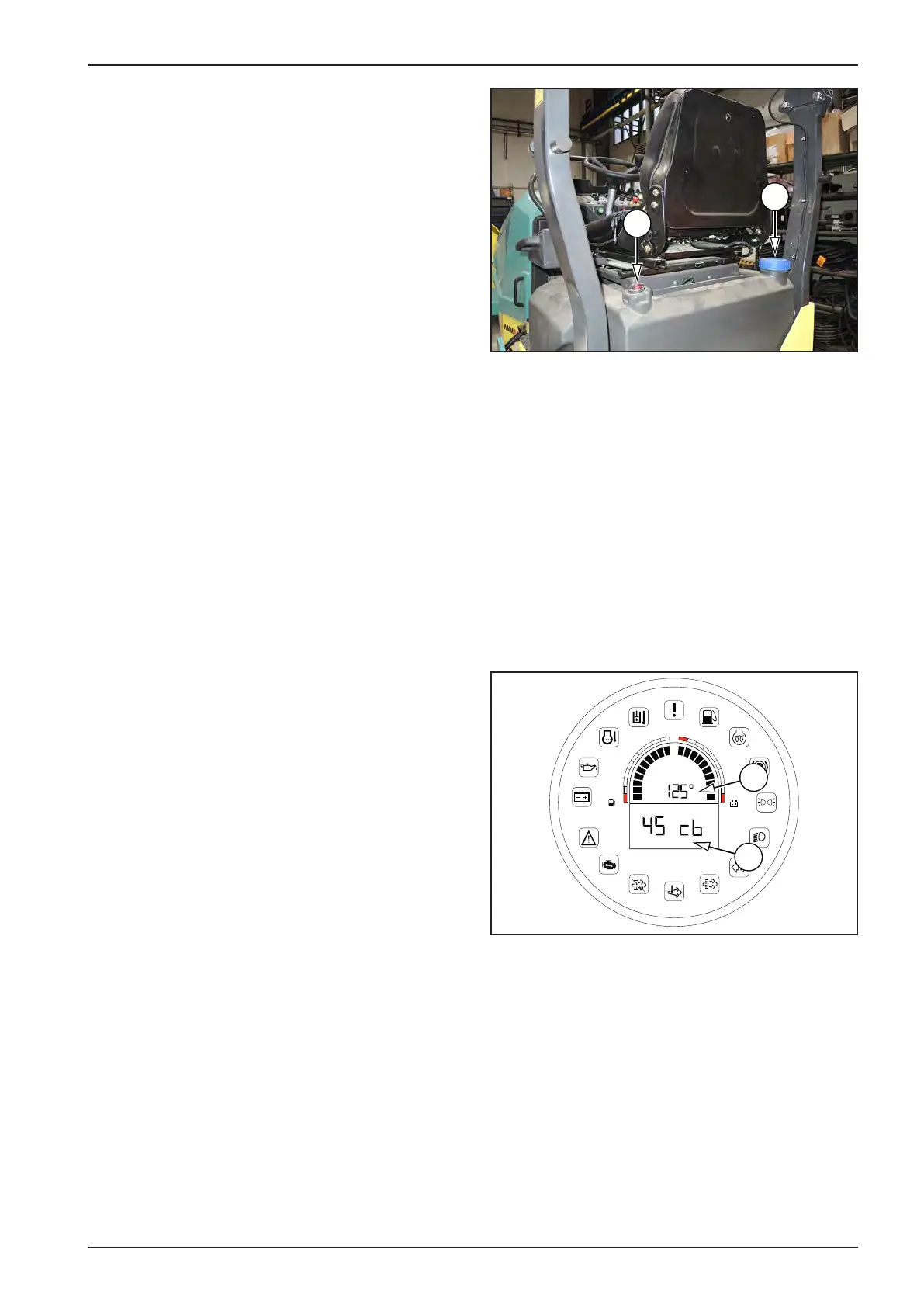

2.7.7 Sprinkling
The water level in the tank is shown on the indicator (1).
Hole to ll the water tank (2).
Check the water level in the tank before putting the machine
into operation.
Turn on the sprinkling with the sprinkling potentiometer (4).
Position 0 – sprinkling OFF
Position 1 – sprinkling ON
Turning from the position 1 to the right to turn on the interval
sprinkling.
In the interval sprinkling mode you can continuously control
the sprinkling break interval.
Using the sprinkling switch (13), it is possible to turn on the
sprinkling at any time, e.g. before driving on acompacted bitu-
men surface.
Note
At acombined machine, the sprinkling switch (13) is used for
sprinkling the tyres and the sprinkling potentiometer (5) is used
for sprinkling the drum.
2.7.8 ACE Force (optional equipment)
The ACE Force system measures current surface compaction at
the front drum and shows the value of compaction in the unit of
cb (MN/m) on the multifunctional display.
1 - surface temperature
2 - compaction value
ACE Force is switched on and o by pressing the vibration
switch (12). Values are not saved or printed.
