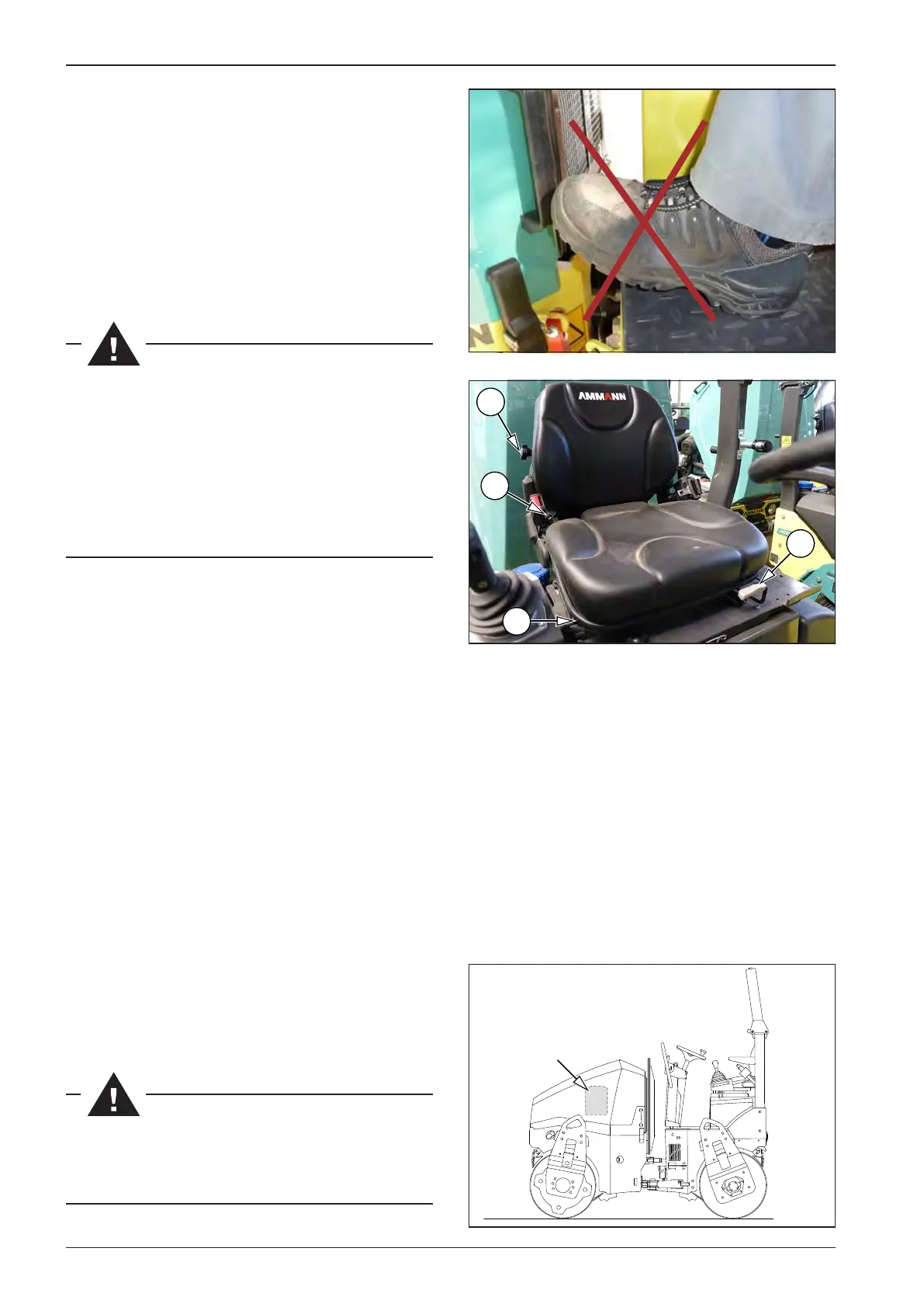

2.6 Controls and checking instruments
Seat
Seat adjustment
1 Backrest inclination adjustment
2 Seat springing stiness
3 Longitudinal seat travel
4 Seat cross travel
Seat springing stiness
Turn the switch (2) to set stiness according to driver’s weight
between 50 and 120 kg (110 - 265 lb).
Adjust the seat before driving the machine.
The driver must be fastened with the safety belt while
driving.
Non-observance of this instruction can lead to death or
serious injury.
During travel of the machine, the driver must have his
legs on the machine platform; there is a risk of injury
when the machine turns.
Longitudinal seat travel
• After raising the lever (3), it is possible to move the seat in
the longitudinal direction forward-rearward.
Seat cross travel
• After raising the lever (4), it is possible to move the seat in
the cross direction to the left and right.
Document box
The storage box situated on the inner left side of the bonnet is
used to store the Operating Manual and other documents rela-
ted to the operation of the machine.
The Operating Manual must always be kept in the mac-
hine in an appropriate place to be always available for
the driver of the machine for viewing.
