Installation
10
AXB-TPI/3 T
ouch Panel Interface 3
V

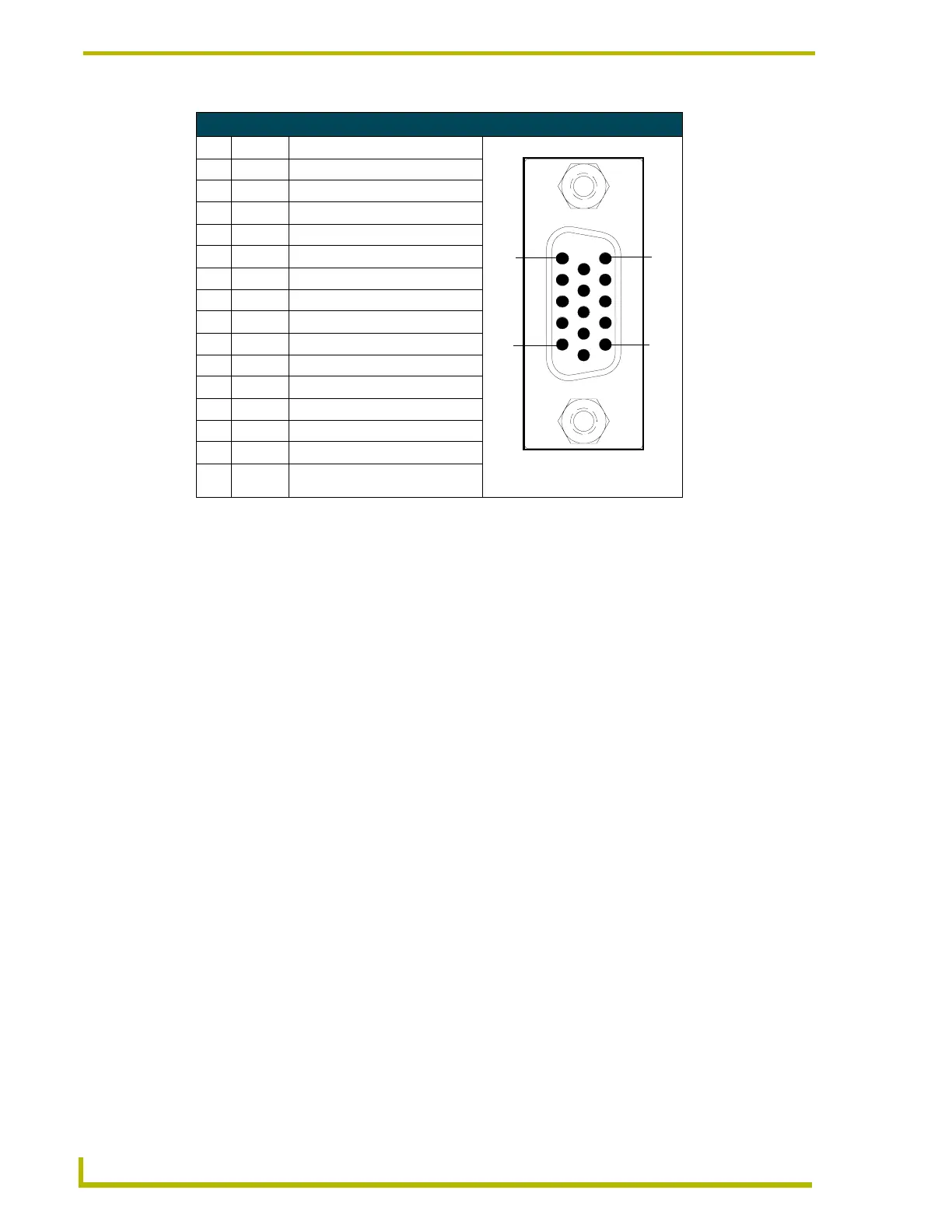

GA IN DB-15 Connector
Pinouts
Pin Signal
Function
1
Red
Red signals
2
Green
Green signals
3
Blue
Blue signals
4
N/A
Not used
5
GND
Signal Ground
6
RAGND
Red analog ground
7
GAGND
Green analog ground
8
BAGND
Blue analog ground
9
N/A
Not used
10
SA
GND
Synchronization
analog ground
11
N/A
Not used
12
N/A
Not used
13
HSYNC
Horizontal synchronization signal
14
VSYNC
V
er
tical synchronization signal
15
N/A
Not used
V
G
A DB-15 (male)
connector
10
6
5
1
15
11
15
17
Table of Contents
Table of Contents
3
Product Information
7
Specifications
8
Installation
11
Installing the Input Modules
11
Removing Input Modules
11
Mounting the TPI/3 in an Equipment Rack
12
Other Mounting Options
13
Wiring the AXB-TPI/3
13
Wiring Guidelines
13
Preparing Captive Wires
14
Using the Axlink Connector for Data and Power
14
Using the (DB-9) RS-232 Connector for Mouse Control or Data
15
Using the VGA in DB-15 (Male) High-Density Connector
15
TPI Configuration and Usage
17
Setting up Serial Communication from PC to the TPI/3
17
Setting up Serial Procedures
17
Using AXCESSX for Serial Communication
17
Using Hyperterminal for Serial Communication
19
Setting up Touch Devices and Drivers
20
Setting the Output Resolution
20
Assigning a Touch Device
21
Calibrating the Monitor
22
Verifying Your Settings
22
Setting up Axlink Communication from Master to the TPI/3
23
Setting up Axlink Procedures
23
Using AXCESSX for Axlink Communication
23
Using Hyperterminal for Axlink Communication
23
Setting up the Touch Device through Axlink
24
Setting up Netlinx Communication from PC to the TPI/3
25
Using Netlinx Studio for Communication Via an Ethernet Connection
25
Using Netlinx Studio for Communication Via an COM Port
26
Stacking the TPI/3
27
Using a CG10 LCD Touch Panel with the AXB-TPI/3
30
Designing Touch Panel Pages
33
Buttons
33
Activating Edit Mode
34
Setting the Device Base
36
Setting the Device Used
36
Adding a Page
36
Setting the Page Color
36
Adding a Button
36
Resizing a Button
36
Defining On-Screen and External Button Properties
37
Setting the Channel Code
37
Setting the Variable Text Code
38
Setting the Page Flip
38
Setting the Button Colors for Channel-Off Conditions
38
Adding Text, Icons, and Bitmaps to a Button
38
Using Tpdesign3 to Download Bitmaps, Icons, and Fonts
39
Creating a Bargraph and Joystick
39
Adding a Bargraph or Joystick Button
40
Setting Bargraph and Joystick Properties
40
Setting the Level Code
40
Programming
41
Serial Commands
41
System Send_Commands
45
Video Send_Commands
52
VGA Send_Commands
54
Programming Numbers
56
Shorthand Send_Commands
57
Color Send_Commands
63
Variable Text Send_Commands
65
Shorthand Variable Text Commands
67
Button String Commands
70
Upgrading the Firmware
73
Upgrading the Firmware Using Netlinx Studio
73
Upgrading the TPI/3 Firmware through a COM Port
73
Upgrading the TPI/3 Firmware through an IP Address
75
Upgrading the Firmware Using Softrom
78
Configuration
78
Downloading the Firmware
78
