Installing Wall-Mount (MXD) Panels

Modero S Series G4 Touch Panels Instruction Manual

Installing the S Series Panel into a Wall

S Series touch panels come with a clear plastic Backbox designed to attach the panel to most standard wall materials.

This Backbox has locking tabs to help lock the Backbox to the wall (see FIG. 16).

These locking tabs are only extended AFTER the Backbox is inserted into the wall.

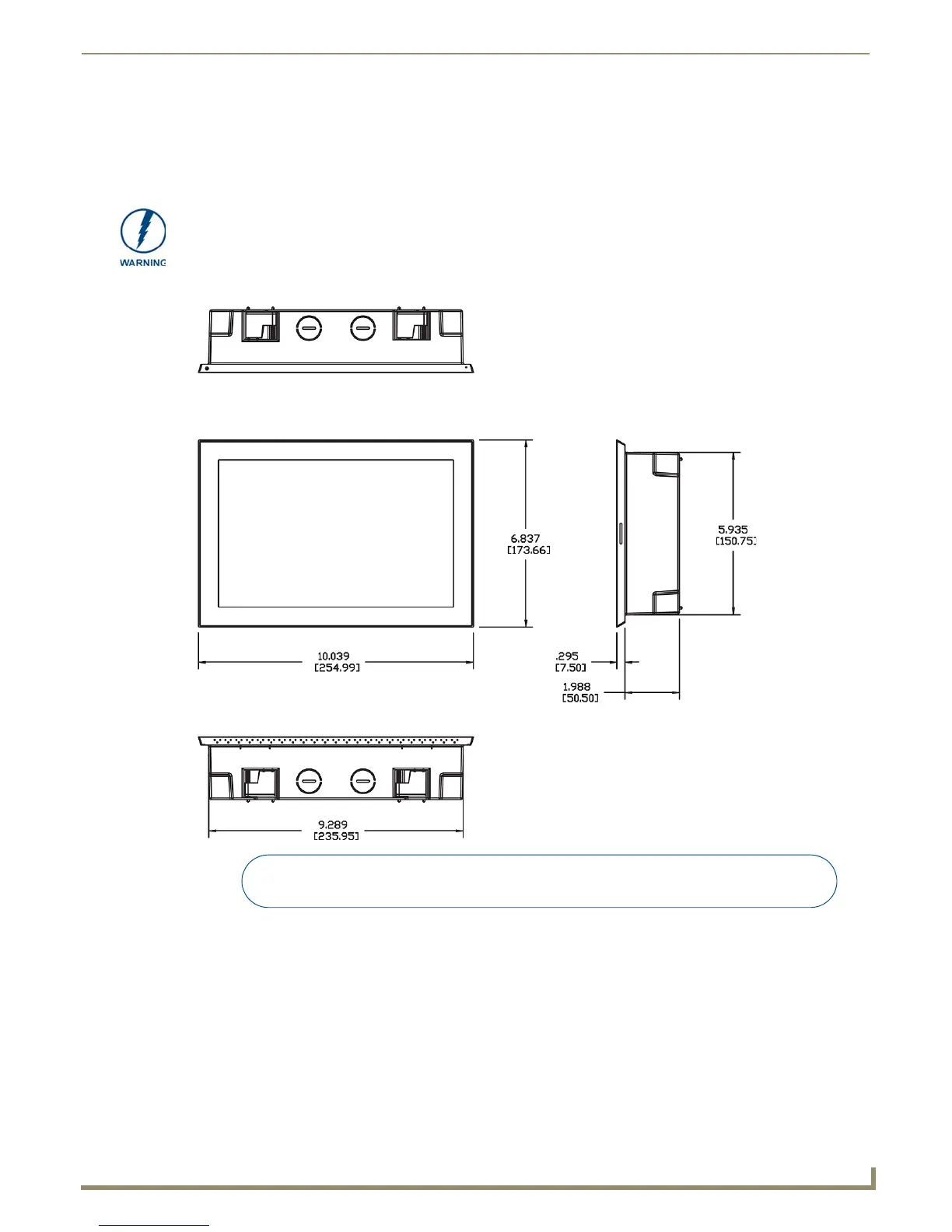

MXD-1001-L Dimensions

When installing the Backbox, make sure that the assembly is in the correct position

and in the correct place. Once the locking tabs are extended and locked into place,

removing the Backbox may be difficult without having access to the back of the wall

or causing damage to the wall.

FIG. 17 MST-1001-L

Notes:

Dimensions in parenthesis are in millimeters

Additional detailed installation and product drawings are available to view/download at www.amx.com

Other manuals for AMX MST-1001

Need help?

Do you have a question about the AMX MST-1001 and is the answer not in the manual?

General

Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Touchscreen type	Tabletop
Display brightness	350 cd/m²
Display resolution	1280 x 800 pixels
Display technology	LED
Touchscreen technology	Resistive
Viewable size diagonal	256 mm
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Product color	Black
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	136 x 217 mm
Power supply type	DC
Power consumption (standby)	4.5 W
Power consumption (typical)	7.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Wall mountable	No
HDMI ports quantity	0
Graphics card	AMX G4
Internal memory	512 MB
Internal memory type	DDR
RMS rated power	1.5 W
