Installing Wall-Mount (MXD) Panels
33
Modero S Series G4 Touch Panels Instruction Manual

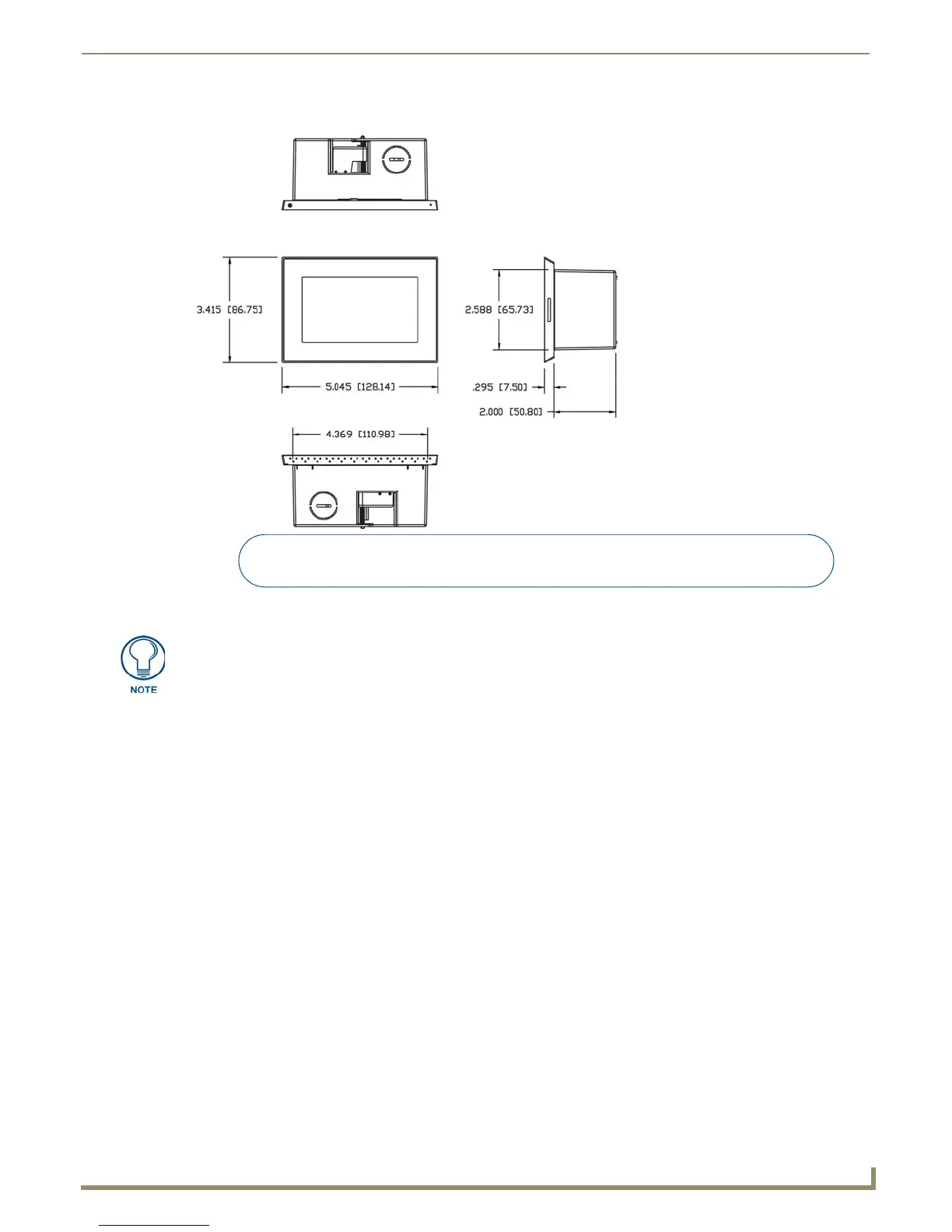

MXD-431-L Dimensions
Installing the Backbox
1.
Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.
2. For best results, use the Installation Template provided with the panel to ensure proper placement (FIG. 20):
MXD-1001-L - Template, Backbox, 10.1" Touch Panel, Modero S Series (68-2265-03)
MXD-701-L - Template, Backbox, 7.0" Touch Panel, Modero S Series (68-2265-02)
MXD-431-L - Template, Backbox, 4.3" Touch Panel, Modero S Series (68-2265-01)
The templates are marked to ensure that the touch panel and Backbox are properly aligned.
FIG. 19 MSD-431-L
Notes:
Dimensions in parenthesis are in millimeters
Additional detailed installation and product drawings are available to view/download at www.amx.com
In order to ensure a stable installation of the MSD-1001-L, the thickness of the wall
material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches
(2.22cm). The mounting surface should also be smooth and flat.

Table of Contents

Other manuals for AMX MST-1001

Preview: Installation & Hardware Reference Manual
Installation & Hardware Reference Manual38 pages
Preview: Configuration Manual
Configuration Manual100 pages
Preview: Quick Start Guide
Quick Start Guide2 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AMX MST-1001 and is the answer not in the manual?

AMX MST-1001 Specifications

General IconGeneral
Aspect ratio16:9
Screen shapeFlat
Display diagonal10 \
Touchscreen typeTabletop
Display brightness350 cd/m²
Display resolution1280 x 800 pixels
Display technologyLED
Touchscreen technologyResistive
Viewable size diagonal256 mm
Contrast ratio (typical)800:1
Display number of colors16.78 million colors
Product colorBlack
Ethernet LAN (RJ-45) ports1
Display viewable area (HxV)136 x 217 mm
Power supply typeDC
Power consumption (standby)4.5 W
Power consumption (typical)7.5 W
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 85 %
Operating relative humidity (H-H)20 - 85 %
Wall mountableNo
HDMI ports quantity0
Graphics cardAMX G4
Internal memory512 MB
Internal memory typeDDR
RMS rated power1.5 W
Weight and Dimensions IconWeight and Dimensions
Depth (without stand)103 mm
Width (without stand)264 mm
Height (without stand)157 mm
Weight (without stand)5530 g
