AMX MST-1001 User Manual

Modero S Series G4 Touch Panels
1
Modero S Series G4 Touch Panels Instruction Manual
Modero S Series G4 Touch Panels
Overview
The Modero S Series is a beautiful touch panel family sophisticated enough for room control yet priced right for the
most cost sensitive installations. The Modero S Series panels include VoIP, brilliant 24-bit color depth, PoE connectivity,
USB and streaming video.
Features
Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility
for consistent style on any budget
Secure Table Mounting Option – Our beautifully styled secure mounting plate attaches to the Modero S
tabletop touch panels and secures with under-table tamper resistant bolts making it virtually theft proof; if it’s
not possible or desirable to mount the touch panel to the table the secure plate can also be used in conjunction
with a Kensington Lock, or mount it and use the lock together for extra security
Powerful Graphics – Powered by G4, the Modero S Series features streaming video and brilliant 24-bit color
depth
The Modero S-Series G4 Touch Panels covered in this manual include:

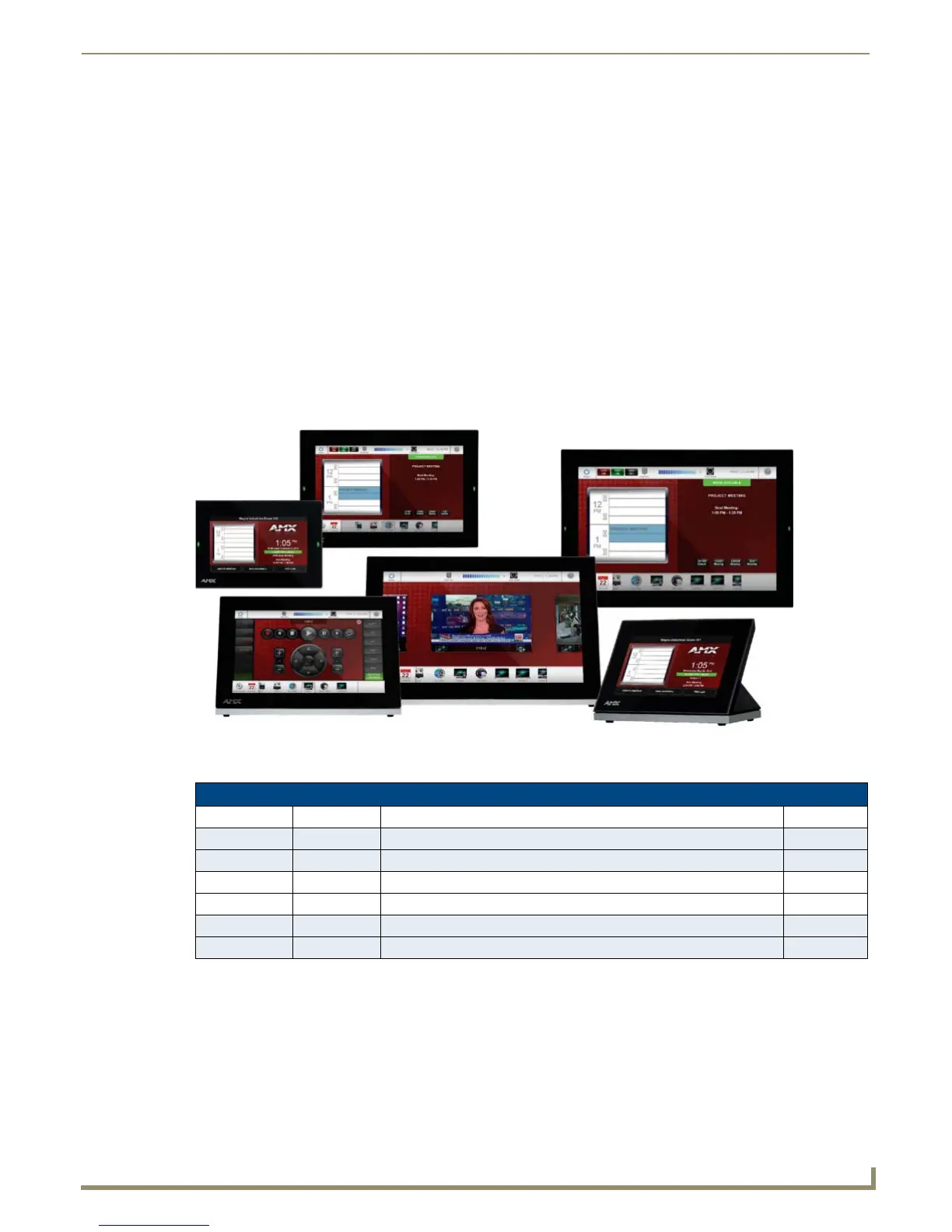

FIG. 1 Modero S Series Touch Panels
Modero S-Series G4 Touch Panels
Name FG# Description Page Ref
MST-1001 FG2265-05 10.1" Modero S Series Tabletop Touch Panel page 7
MSD-1001-L FG2265-01 10.1" Modero S Series Landscape Wall Mount Touch Panel page 9
MST-701 FG2265-06 7" Modero S Series Tabletop Touch Panel page 13
MSD-701-L FG2265-02 7" Modero S Series Landscape Wall Mount Touch Panel page 15
MST-431 FG2265-07 4.3" Modero S Series Tabletop Touch Panel page 19
MSD-431-L FG2265-03 4.3" Modero S Series Landscape Wall Mount Touch Panel page 21

AMX MST-1001 Specifications

General

Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Touchscreen type	Tabletop
Display brightness	350 cd/m²
Display resolution	1280 x 800 pixels
Display technology	LED
Touchscreen technology	Resistive
Viewable size diagonal	256 mm
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Product color	Black
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	136 x 217 mm
Power supply type	DC
Power consumption (standby)	4.5 W
Power consumption (typical)	7.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Wall mountable	No
HDMI ports quantity	0
Graphics card	AMX G4
Internal memory	512 MB
Internal memory type	DDR
RMS rated power	1.5 W

Weight and Dimensions

Depth (without stand)	103 mm
Width (without stand)	264 mm
Height (without stand)	157 mm
Weight (without stand)	5530 g
