Installing Wall-Mount (MXD) Panels
37
Modero S Series G4 Touch Panels Instruction Manual

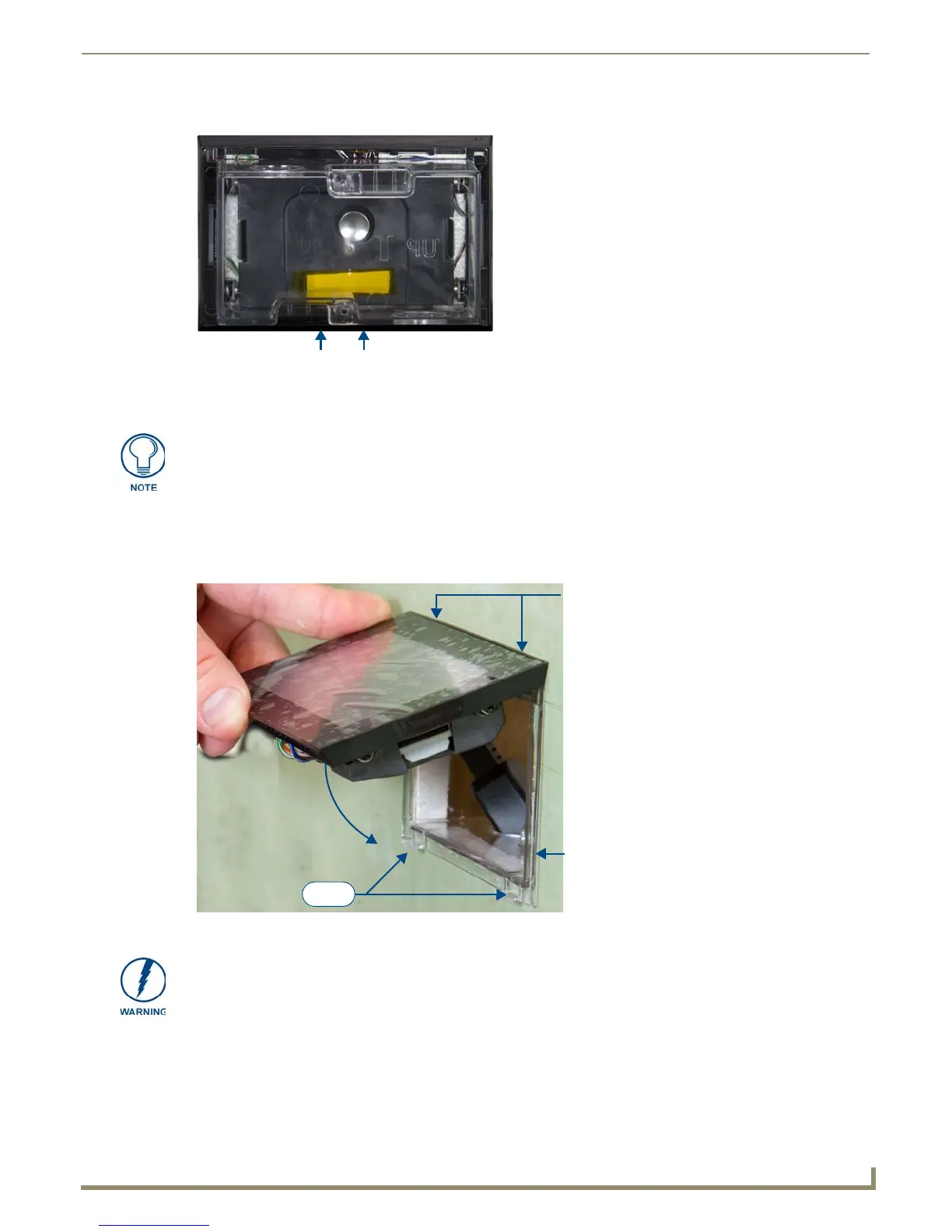

FIG. 24 shows the connectors on the rear of the MSD-431-L:
10. Test the incoming wiring by attaching the panel connections to their terminal locations and applying power.
Verify that the panel is receiving power and functioning properly to prevent repetition of the installation.
Remove power before continuing with the installation.
11. Latch the panel onto the top hooks on the Backbox and push it down onto the bottom snaps. Press gently but firmly
on the ends until the snaps “click” to lock it down (FIG. 25):
12. Reconnect the terminal Ethernet and USB to their respective locations on either the Ethernet port or NetLinx
Master.
FIG. 24 Rear of the MSD-431-L
RJ-45 Port Micro-USB Port
Do not disconnect the connectors from the touch panel. The unit must be installed
with the attached connectors before being inserted into the mounting surface.
FIG. 25 Installing the MSD-431-L
Latch Hooks
Backbox
Snaps
If a gap is observed between the panel and the Backbox, or feel any binding while
locking down the panel, stop immediately and verify that no cables or other items are
in the way. Do not force the panel into position, as this can cause damage to the
touch screen or the panel electronics.

AMX MST-1001 Specifications

General

Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Touchscreen type	Tabletop
Display brightness	350 cd/m²
Display resolution	1280 x 800 pixels
Display technology	LED
Touchscreen technology	Resistive
Viewable size diagonal	256 mm
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Product color	Black
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	136 x 217 mm
Power supply type	DC
Power consumption (standby)	4.5 W
Power consumption (typical)	7.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Wall mountable	No
HDMI ports quantity	0
Graphics card	AMX G4
Internal memory	512 MB
Internal memory type	DDR
RMS rated power	1.5 W

Weight and Dimensions

Depth (without stand)	103 mm
Width (without stand)	264 mm
Height (without stand)	157 mm
Weight (without stand)	5530 g
