NI-2100, NI-3100, NI-4100 Hardware Reference Guide
NI-3100
The NI-3100 (FG2105-05), part of the NI Series of Master Controllers, satisfies the control and automation
features common in a larger area or multiple rooms, which may include the integration of a larger number of
devices including VCR and DVD players, projectors, lighting, thermostats and other electronic equipment. In
technology-driven environments, this solution allows for the future addition of more devices and control
capabilities.
The NI-3100 offers higher performance with a faster processor, up to 256 MB of onboard RAM and a 256 MB
CompactFlash card. For smaller business and home applications, the NI-3100 includes just the right mix of
ports and features.
NI-3100 Specifications

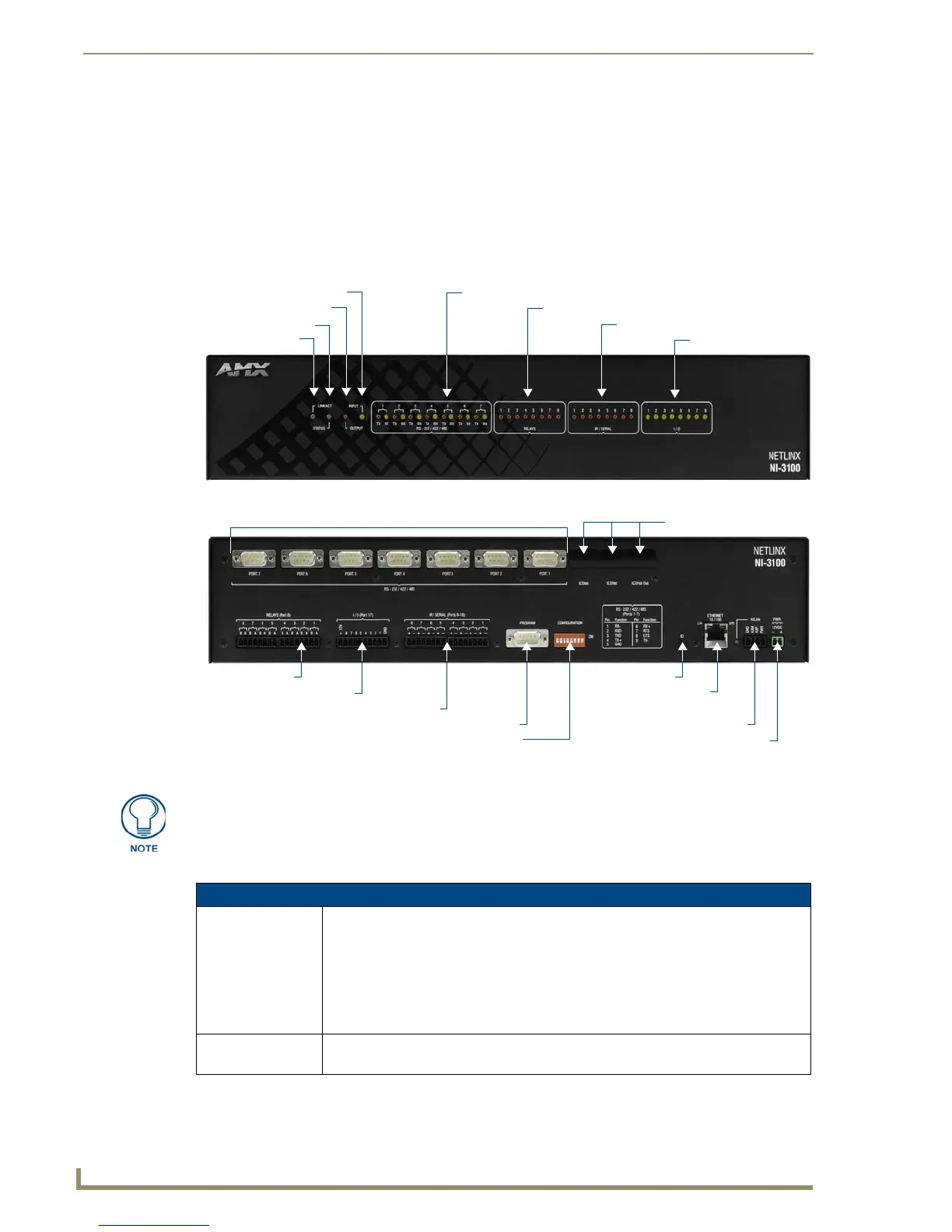

FIG. 2 NI-3100
LINK/ACT LED
STATUS LED
INPUT LED
OUTPUT LED RS-232/422/485 Status LEDs
RELAY Status LEDs
IR/SERIAL Status LEDs
I/O Status LEDs
front
rear
RS-232/422/485 (Ports 1-7)
ICSNet/ICSHub Ports
(provided by optional
ICSNet daughter card)
Relays (Port 8)
I/O (Port 17)
IR/Serial (Ports 9-16)
PROGRAM Port
CONFIGURATION DIP Switch
ID Pushbutton
ETHERNET
10/100 Port
AxLink Port
12 VDC PWR Connector
Verify you are using the latest NI firmware for the on-board Master. Verify you are
using the latest version of NetLinx Studio (available for download from
www.amx.com).
NI-3100 Specifications
Models Available: • NI-3100 64MB Controller (FG2105-05)
• NI-3100/256 256MB Controller (FG2105-25)
The NI-3100 & NI-3100+256 can be upgraded to provide one ICSHub and two ICSNet
ports by installing the optional ICSNet daughter card (FG2105-10 - see Other AMX
Equipment)
• NI-3100/ICS 64MB Controller with ICSNet (FG2105-15)
• NI-3100/256/ICS 256MB Controller with ICSNet (FG2105-35)
Dimensions (HWD): • 3 1/2" x 17" x 3 1/2" (8.8 cm x 43.2 cm x 8.8 cm)
• RU: 2
