Connections and Wiring
29
NI-2100, NI-3100, NI-4100 Hardware Reference Guide
IR/Serial Port: Connections and Wiring
You can connect up to eight IR- or Serial-controllable devices to the IR/Serial connectors on the rear of the NI-
4100 and NI-3100 and up to four on the NI-2100 (FIG. 15).
These connectors accept an IR Emitter (CC-NIRC) that mounts onto the device's IR window, or a mini-plug
(CC-NSER) that connects to the device's control jack. You can also connect a data 0 - 5 VDC device.
These units come with two CC-NIRC IR Emitters (FG10-000-11).
The IR/Serial connector wiring specifications are listed in the following table.

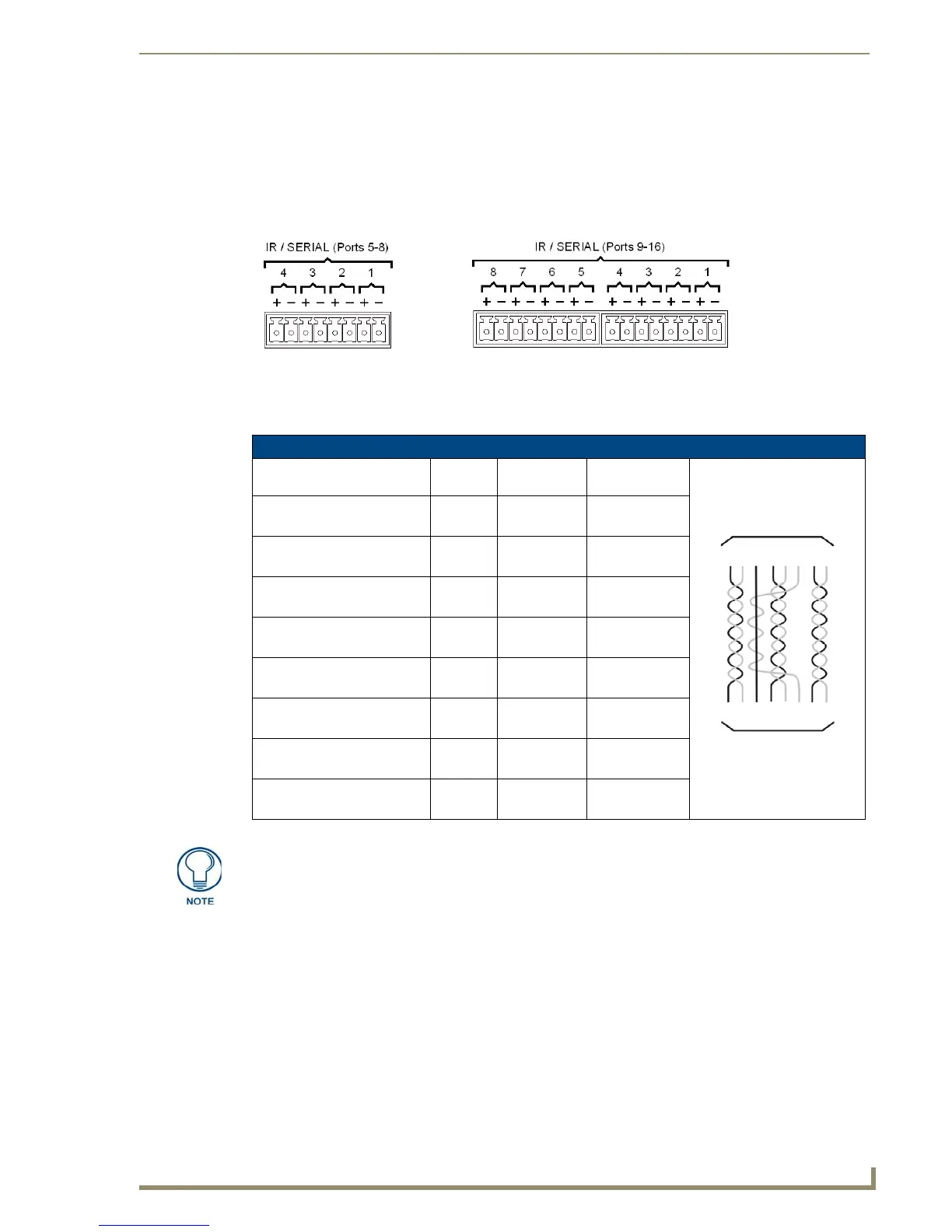

FIG. 15 IR/SERIAL (male)
IR/Serial Connector Wiring Specifications (per Port)
# of IR connections NI-2100
Port #
Signal Function
1 5 GND (-)
Signal 1 (+)
Signal GND
IR/Serial data
2 6 GND (-)
Signal 2 (+)
Signal GND
IR/Serial data
3 7 GND (-)
Signal 3 (+)
Signal GND
IR/Serial data
4 8 GND (-)
Signal 4 (+)
Signal GND
IR/Serial data
5 N/A GND (-)
Signal 5 (+)
Signal GND
IR/Serial data
6 N/A GND (-)
Signal 6 (+)
Signal GND
IR/Serial data
7 N/A GND (-)
Signal 7 (+)
Signal GND
IR/Serial data
8 N/A GND (-)
Signal 8 (+)
Signal GND
IR/Serial data
NI-4100/NI-3100 IR/Serial connector
configuration (Port 9-16)
NI-2100 IR/Serial connector
configuration (Port 5-8)
12 3 45 6 78
12 3 45 6 78
The maximum baud rate for ports using DATA mode is 19200. Also, DATA mode
works best when using a short cable length (< 10 feet).
